LOGIQ™ P6/P6 PRO SERVICE MANUAL
Page 8-102 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-47-1 How to start serial no read/write program (cont’d)
5.) If the win XP screen appears, run the window explorer. Move the cursor to bottom of the screen. If
the task bas appear, click the explorer icon.
6.) Run the “asn.exe” by double click. This execution file is in “C:\Arirang\target\bin” directory
7.) When asn.exe starts running, Logon windows pops up. Type in maintenance password to start
asn.exe.

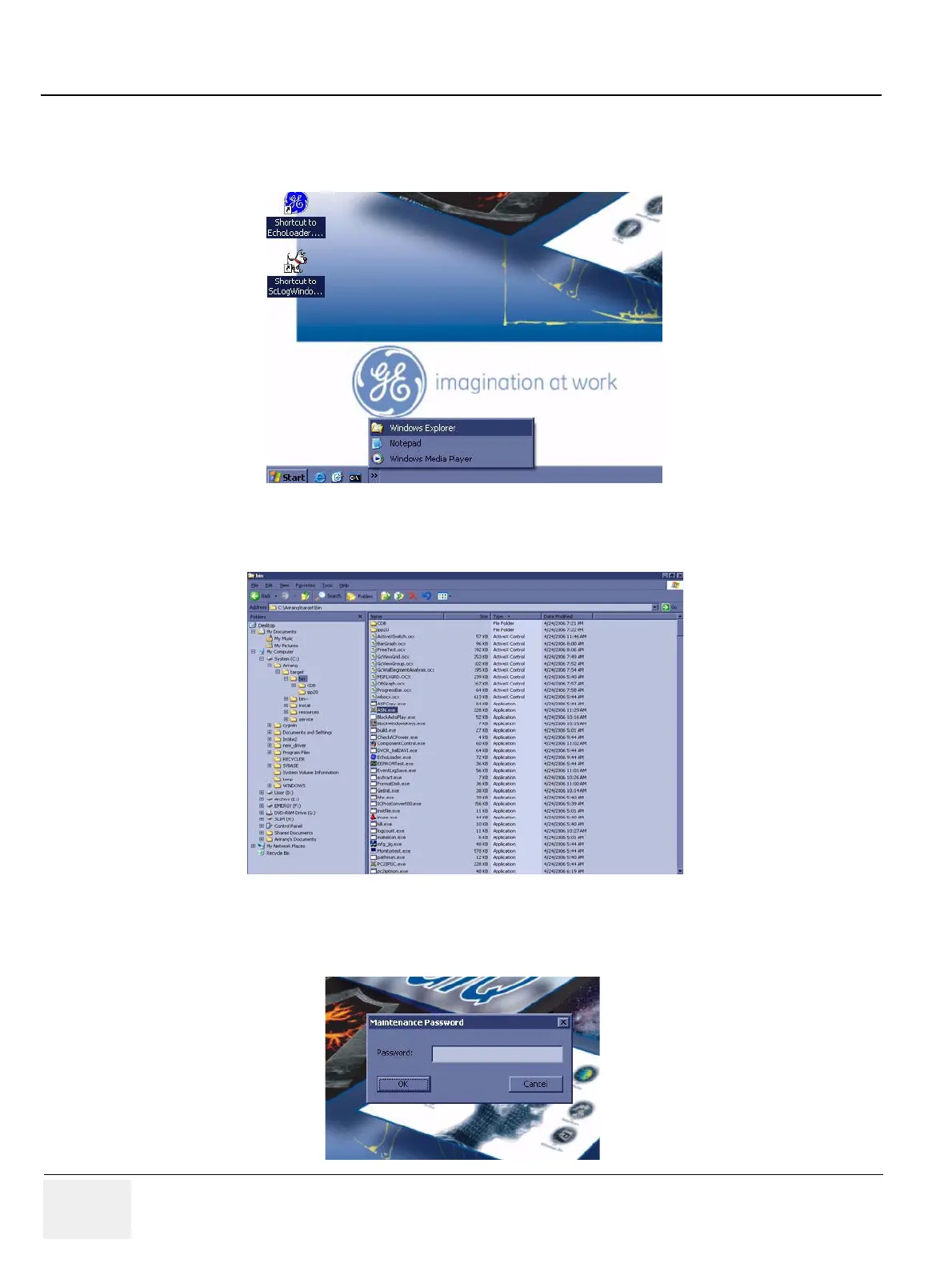

Figure 8-149 Window Explorer on OS screen
Figure 8-150 “asn.exe”
Figure 8-151 Execute the “ASN.EXE”
