GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-120 Section 8-4 - Software Installation

8-4-2-3 USB Printer Checks (USB Printer User Only) (cont’d)

5.) Make sure that printer properties are proper. (Image orientation and size). Refer to the latest

Release Notes.

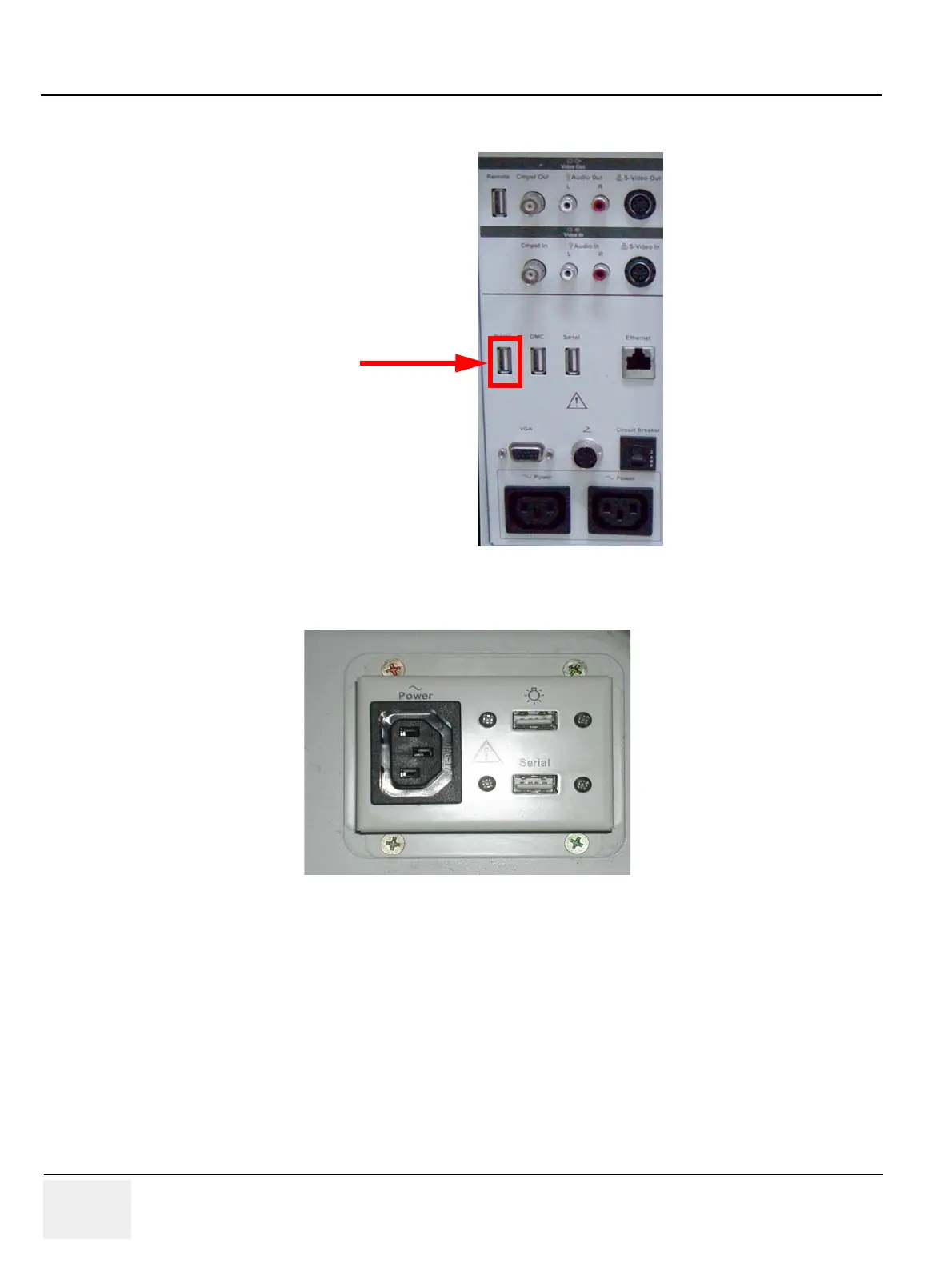

Figure 8-177 USB Port - Rear Panel Connector

Figure 8-178 USB Port - OP Printer Bracket Back Panel

Printer Port
