LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-123
8-4-3 Installing Application Software (cont’d)
5.) After copying backup files, the following options appear. (Software version can be changed.)
6.) Select the product to be installed (P6 or P6 Pro).
7.) The installation process will be started. it will take about 20 minutes.
8.) To apply the preset by region, select one of the below options.

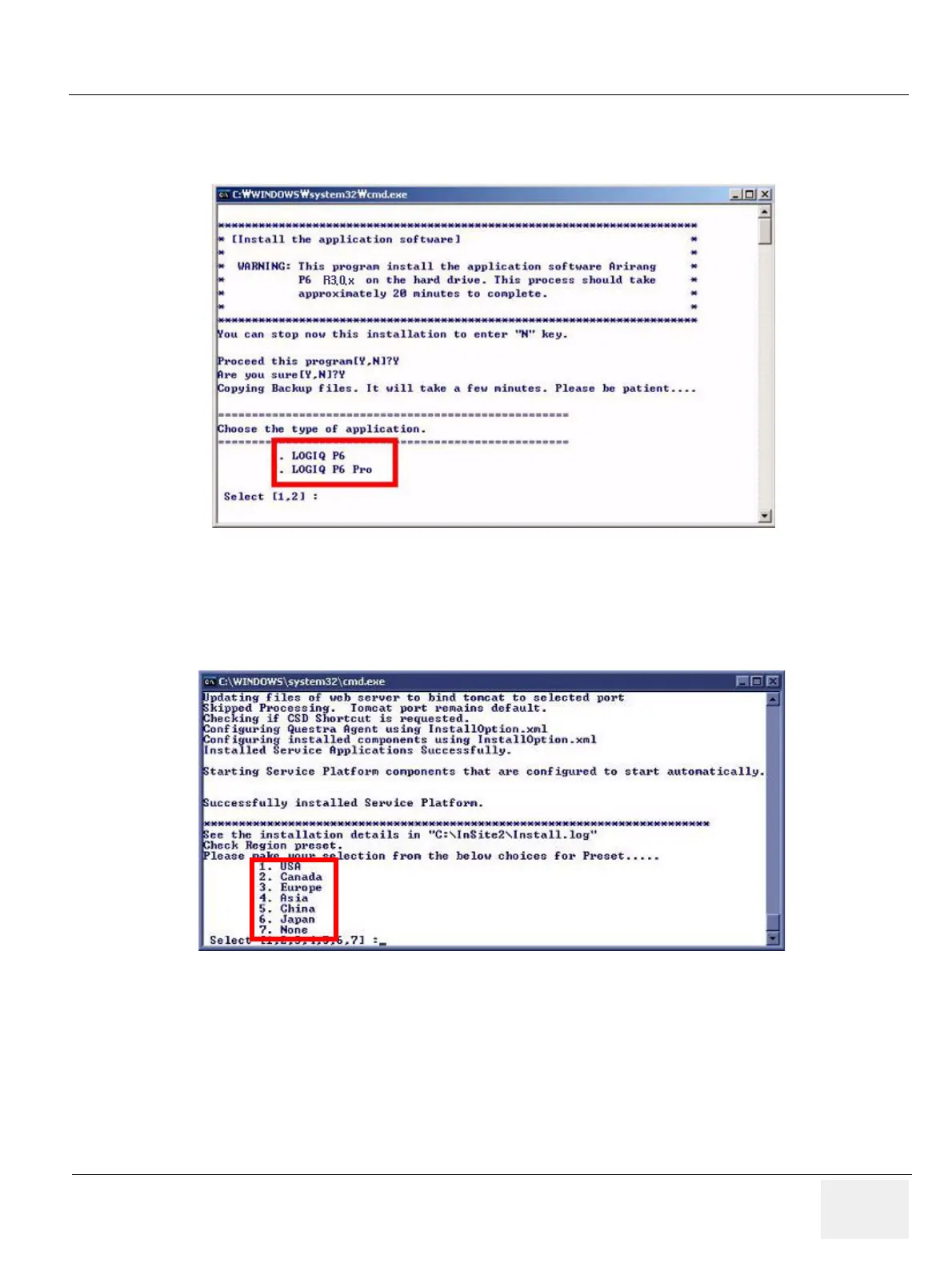

Figure 8-183 Select system
Figure 8-184 Region selection

GE LOGIQ P6 Series Specifications

General

Power Supply	100-240 VAC, 50/60 Hz
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler
Applications	Vascular, Musculoskeletal
Operating Temperature	10°C to 40°C
Display	15-inch LCD
Relative Humidity	20% to 80% (non-condensing)
