LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-140 Section 8-4 - Software Installation

8-5-3 Full Backup Procedure (cont’d)

7.) Press “Backup”. Then the below window pops up.

8.) Insert a USB HDD.

NOTE: It might take about 30 seconds for the system to recognize the USB HDD.

9.) Press “Next”.

10.)Verify that USB HDD is in the list.

11.)Select USB HDD for backup when Select Drive window is displayed.

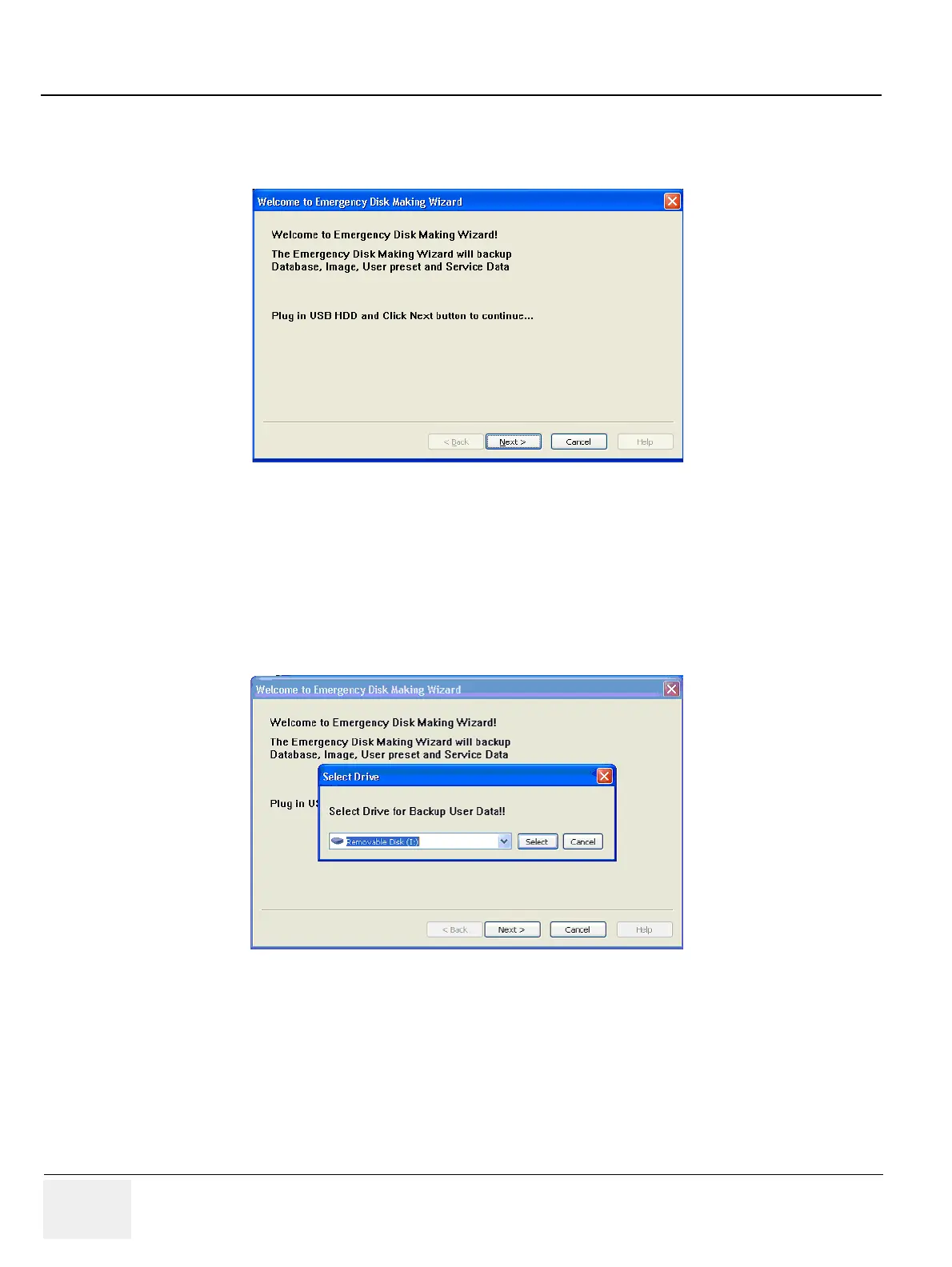

Figure 8-210 Emergency Disk Making Wizard

Figure 8-211 Drive select
