GE LOGIQ P6 Series User Manual

GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Page 8-152 Section 8-4 - Software Installation
8-6-2-2 Software Reloading (cont’d)
15.)Change the Date and Time correctly if needed.
16.)Press “Apply”
17.)Press “OK”
18.)Turn off the system.
19.)Start the system.
20.)Check if the correct date and time are displayed.
21.)The software reloading is completed.

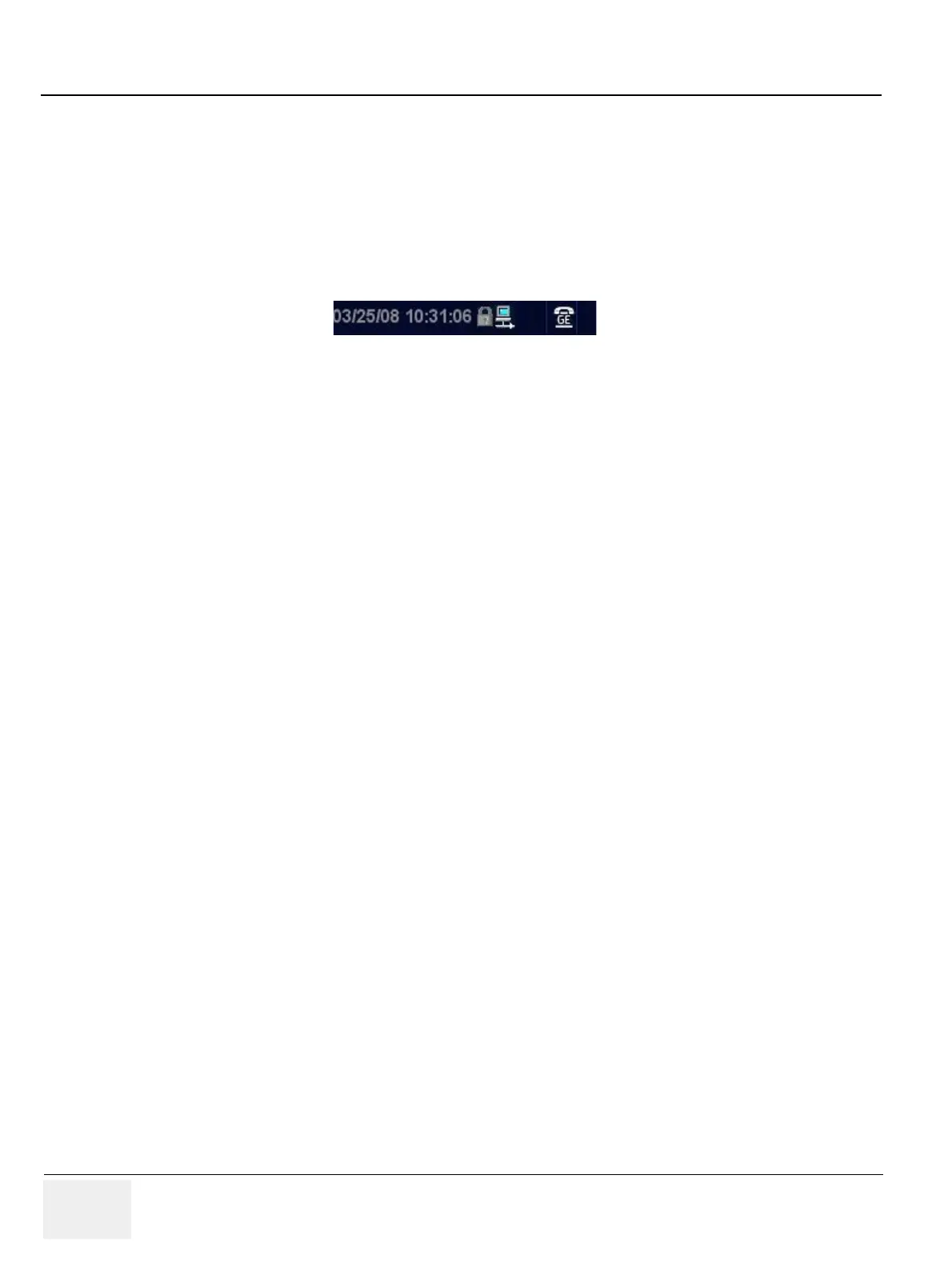

Figure 8-229 Date and Time check

GE LOGIQ P6 Series Specifications

General

Power Supply	100-240 VAC, 50/60 Hz
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler
Applications	Vascular, Musculoskeletal
Operating Temperature	10°C to 40°C
Display	15-inch LCD
Relative Humidity	20% to 80% (non-condensing)
