3.3 Image Viewports
Image Viewports can be found on both the scan monitor and image monitor. The four viewports
on the image monitor are used for image processing.

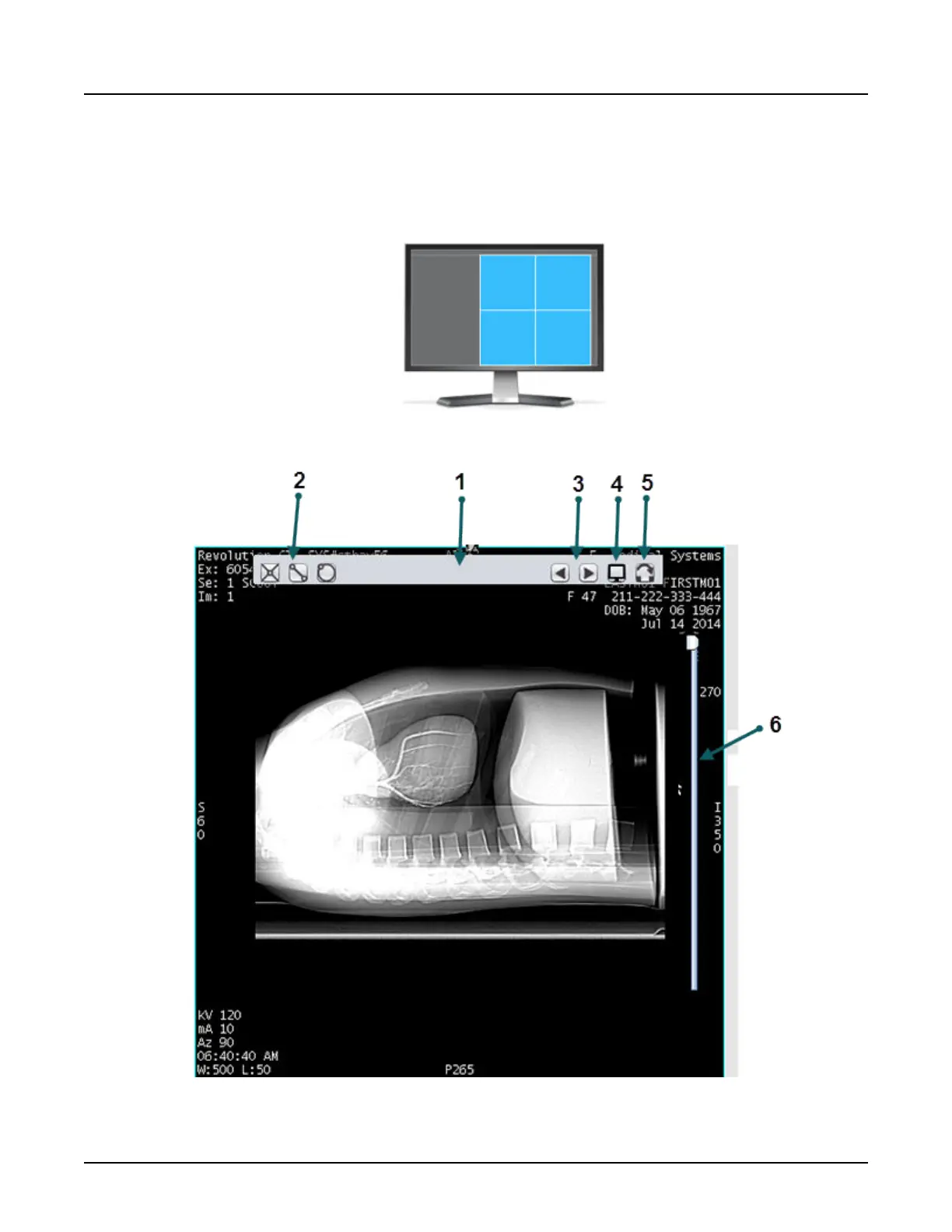

Illustration 20: Image Viewports
Illustration 21: Viewport Controls
Revolution CT User Manual
Direction 5480385-1EN, Revision 1
112 3 Image Monitor
