GE Revolution CT User Manual

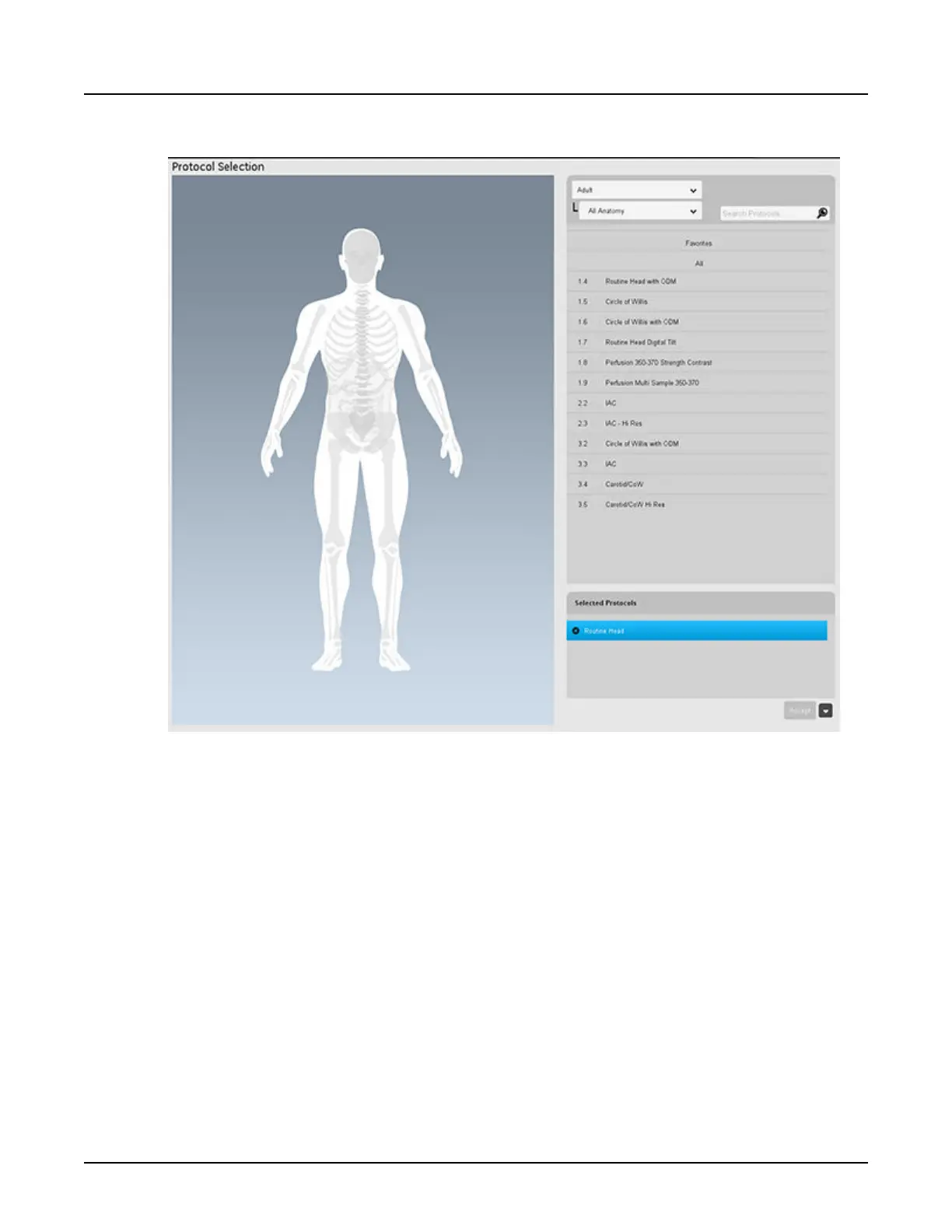

Illustration 1: Protocol Selection window
2.6.1 Protocol numbers
Protocol numbering makes it easy to find a protocol based on a number convention. The first
number indicates the anatomical area you are using. The second number indicates the protocol
selected from that area.
•
User area numbers: Adults = 1 to 10, Pediatrics = 11 to 20
•
GE area numbers: Adults = 21 to 30, Pediatrics = 31 to 40
To see protocol numbers, right-click in the upper right corner of the Protocol Selection window
and select
Protocol Numbers .
You can also enter the protocol number into the search field to narrow the protocol list to that
specific protocol.
2.6.2 Anatomical Selector
Use the Anatomical Selector area to select a specific anatomical region to show only protocols
related to that region.
Revolution CT User Manual
Direction 5480385-1EN, Revision 1
578 2 Protocols

GE Revolution CT Specifications

General

Detector Coverage	Up to 160 mm
Gantry Tilt	± 30 degrees
Spatial Resolution	Up to 0.23 mm
Scan Range	Up to 200 cm
X-ray Tube Current	Up to 800 mA
Type	Computed Tomography (CT) Scanner
Rotation Speed	0.28 seconds per rotation
Tube Voltage	80 kV to 140 kV
Number of Detector Rows	256
Power Requirements	480 VAC, 3-phase
Detector Rows	256
Coverage	160mm
