GE Revolution CT - Overlapped Axial Recon Mode; Secondary Recon Slice Thickness

select which viewport a reconstruction will display in. Refer to the View Images chapter for more
details. Follow the primary reconstruction workflow to set the reconstruction parameters.
A reformat step can also be added on secondary reconstructions, as well as output and transfer
options. Refer to the
Display Applications chapter for more details.
6.4.1 Overlapped Axial Recon mode
The system supports the reconstruction of overlapped data from Axial scan type 40, 80, 120,
140, 160 mm detector coverage. The reconstruction of overlapped Axial data can improve
reformatted data. The interval cannot be adjusted.
Images reconstructed with the 0.625 Z recon mode will be annotated with a Z in the upper-left
area of the images.

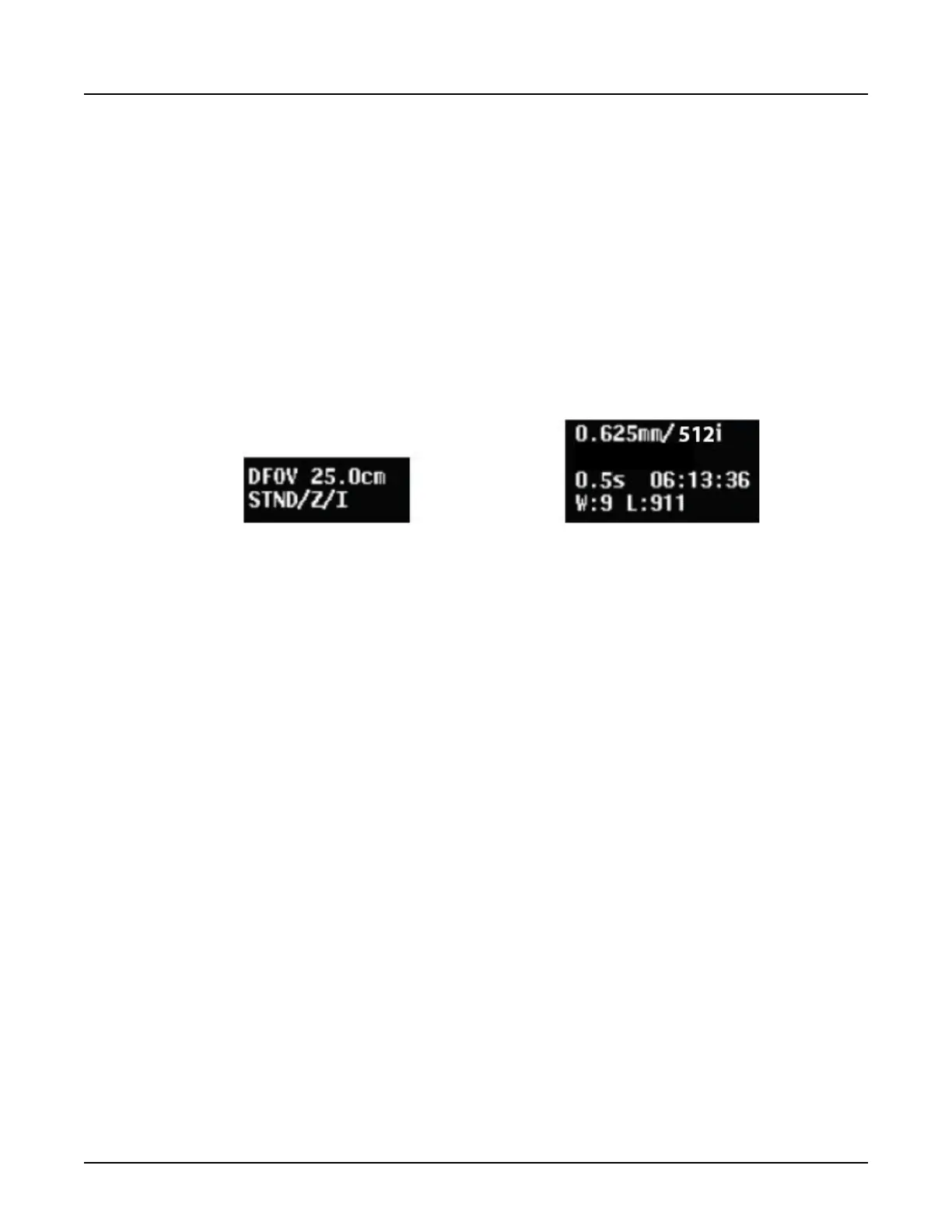

Illustration 28: Image Annotation for Overlapped Axial Recon mode
6.4.2 Secondary Recon Slice Thickness
•
Axial:
○
5 mm detector coverage — 1.25 mm, 2.5 mm, 5.0 mm
○
40 mm detector coverage — 0.625 mm, 0.625 z, 1.25 mm, 2.5 mm, 5.0 mm
○
80 mm detector coverage — 0.625 mm, 0.625 z, 1.25 mm, 2.5 mm, 5.0 mm
○
120 mm detector coverage — 0.625 mm, 0.625 z, 1.25 mm, 2.5 mm, 5.0 mm
○
140 mm detector coverage — 0.625 mm, 0.625 z, 1.25 mm, 2.5 mm, 5.0 mm
○
160 mm detector coverage — 0.625 mm, 0.625 z, 1.25 mm, 2.5 mm, 5.0 mm
•
Cine:
○
40 mm detector coverage — 0.625 mm, 1.25 mm, 2.5 mm, 5.0 mm
○
80 mm detector coverage — 0.625 mm, 1.25 mm, 2.5 mm, 5.0 mm
○
120 mm detector coverage — 0.625 mm, 1.25 mm, 2.5 mm, 5.0 mm
○
140 mm detector coverage — 0.625 mm, 1.25 mm, 2.5 mm, 5.0 mm
○
160 mm detector coverage — 0.625 mm, 1.25 mm, 2.5 mm, 5.0 mm
•
Helical:
○
40 mm detector coverage — 0.625 mm, 1.25 mm, 2.5 mm, 3.75 mm, 5.0 mm
