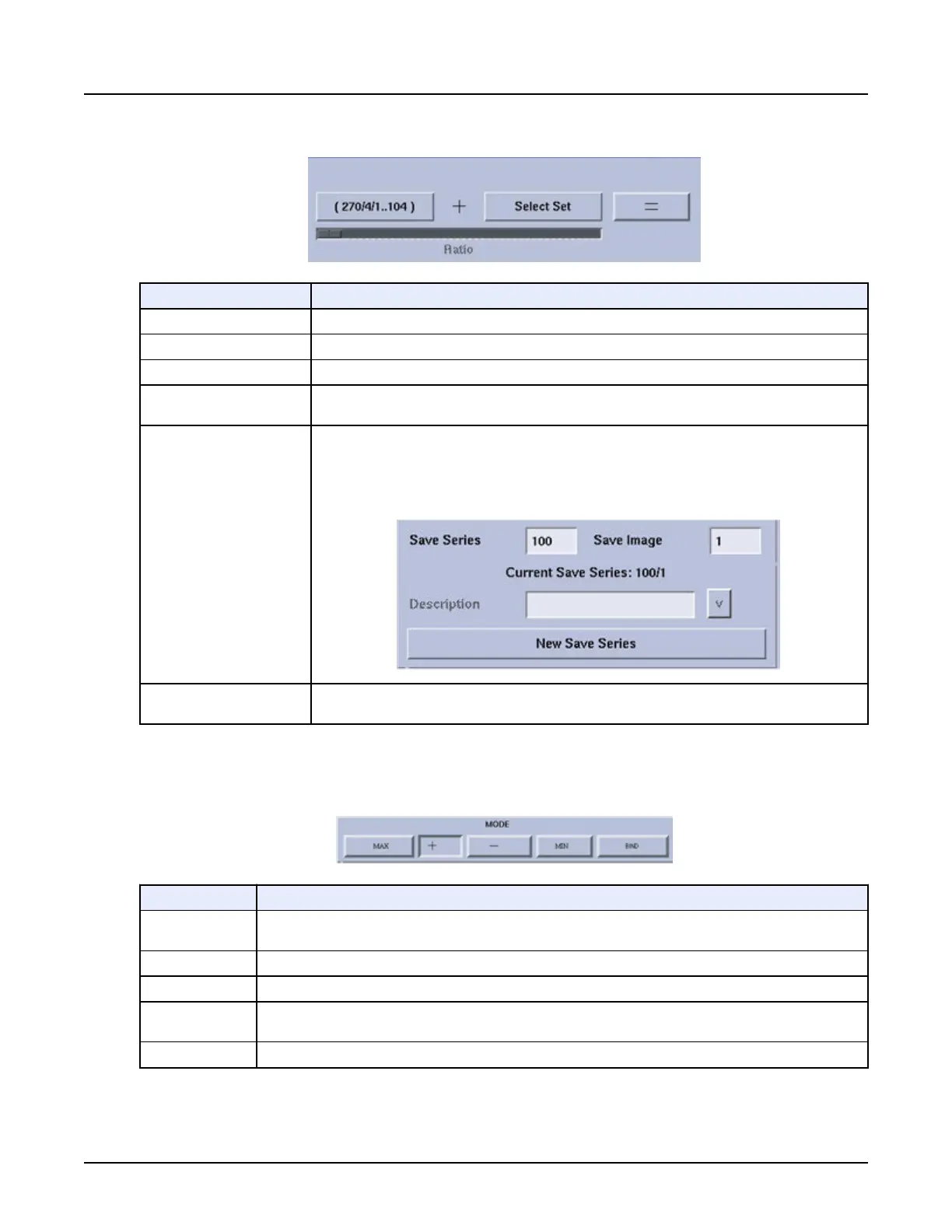

Illustration 5: Image Combination area
Element Description
Select Set (1) Defines the first image set.
Select Set (2) Defines the second image set.
Equal (=) Runs the process and generates the new images.
Ratio slider Adjusts the pixel weighting ratio between the two sets. The slider is available only during addition
and subtraction when both
Select Set
buttons are selected.
Save Series Displays the current series and starting image number of the saved series. By default, images re‐
sulting from subsequent operations are added onto the end of the same series unless you click
[New Save Series].
Enter the name of the series in the Description field.
Illustration 6: Save Series area
New Save Series
Places images resulting from subsequent operations into a new series in the File Manager series
list for this exam. If you do not select this option, the images are saved in the current saved series.
Mode
Illustration 7: Mode buttons
Button
Description
Max Creates a new series that finds the highest corresponding signal intensity values in the selected set or sets of
images.
Plus (+) Creates a new series that adds the image intensity values of the selected image sets.
Minus (-) Creates a new series that subtracts the image intensity values of the selected image sets.
Min Creates a new series that finds the lowest corresponding signal intensity values in the selected set or sets of
images.
Bind Creates a new series that consists of copies of the selected images from one or more existing series.
Accept Negative Pixels
Revolution CT User Manual
Direction 5480385-1EN, Revision 1
Chapter 15 Display Applications 415
