.Drag to rotate the ME long axis slice around the
main axis.
• Place the cursor at one of the extremities of a slice
intersection line in one of the long axis views
. The
cursor is changed to .Drag to tilt all slices around a
perpendicular axis to the view.
• Place the cursor in the middle section of a slice
intersection line in one of the long axis views. The
cursor is changed to . Drag to pan all slices.
• Place the cursor on the blue intersection lines in one of
the long axis views. The cursor is changed to . Drag
to translate the short axis plane.
NOTE: Pressing Clear on the Touch panel will remove the
alignment and display the original probe position or
previously approved alignment.
2. Press Approve when alignment is done.
NOTE: Pressing Delete on the Touch panel will remove any
previously approved alignments and exit the Slice alignment
function.
3. Select the desired standard view on the Touch panel.

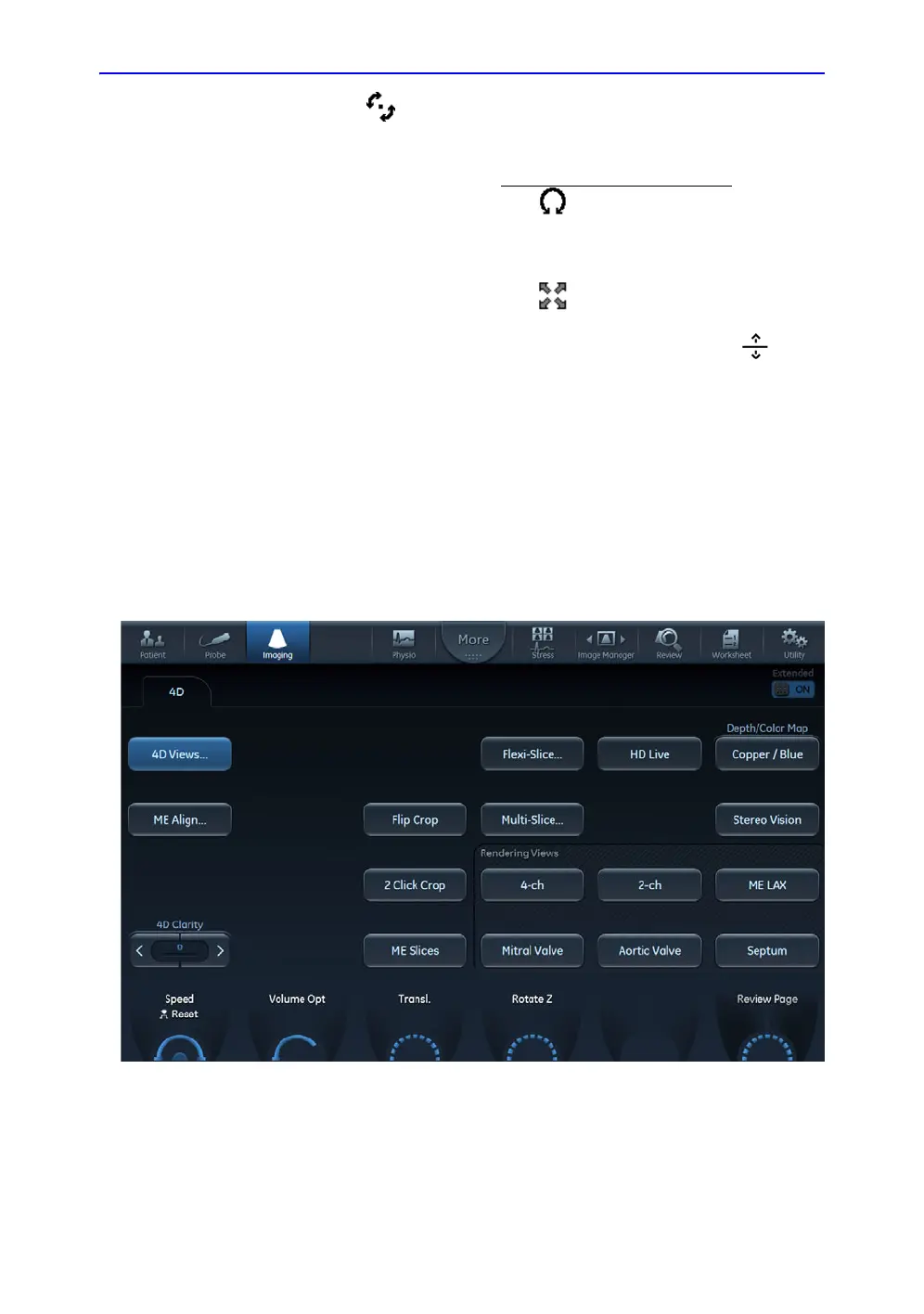

Figure 6-15. The 4D Views Touch panel
