Stress Echo
7-10 Vivid S70 / S60 – User Manual
BC092760-1EN
01

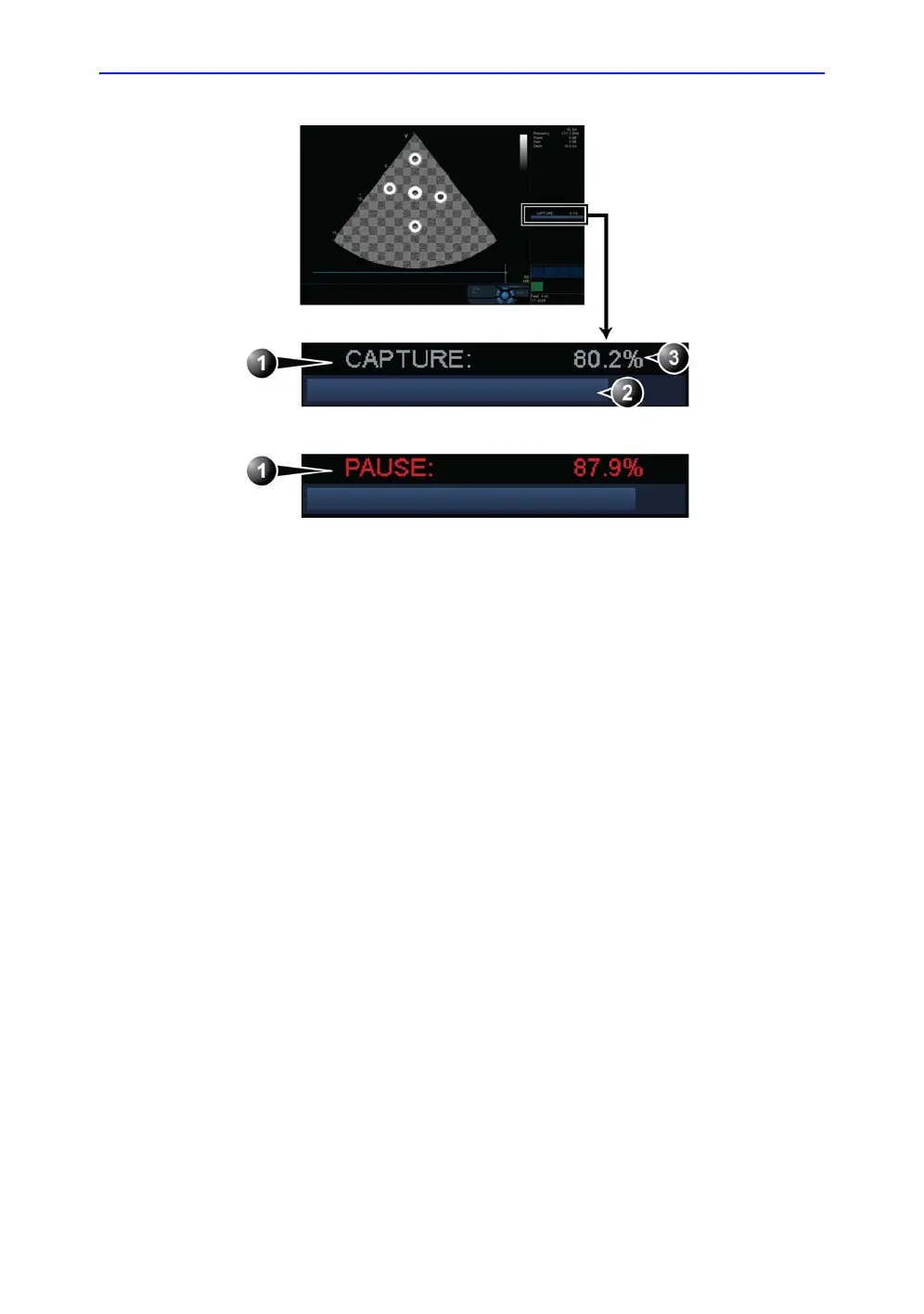

Figure 7-4. The buffer bar in Continuous capture
Controlling the capture process
When entering a cell with Continuous capture enabled, the
system is automatically set in Pause mode.
1. Press Store or 2D Freeze to start image capture.
“Capture” is displayed in the buffer bar, the gauge starts
filling and the percentage of filled memory buffer increases
(Figure 7-4).
2. Press Image Store or 2D Freeze again to stop capture.
“Pause” is displayed in the buffer bar.
When 90% of the memory buffer is filled up, the text display in
the buffer bar turns red.
The system enters Freeze mode automatically once the buffer is
full. The captured recording is stored on disk and the captured
loops are displayed in the Continuous capture selection screen
(see below).
1. Scanning state
2. Buffer gauge
3. Percentage of filled buffer
