Measurements and Analysis
8-26 Vivid S70 / S60 – User Manual
BC092760-1EN
01

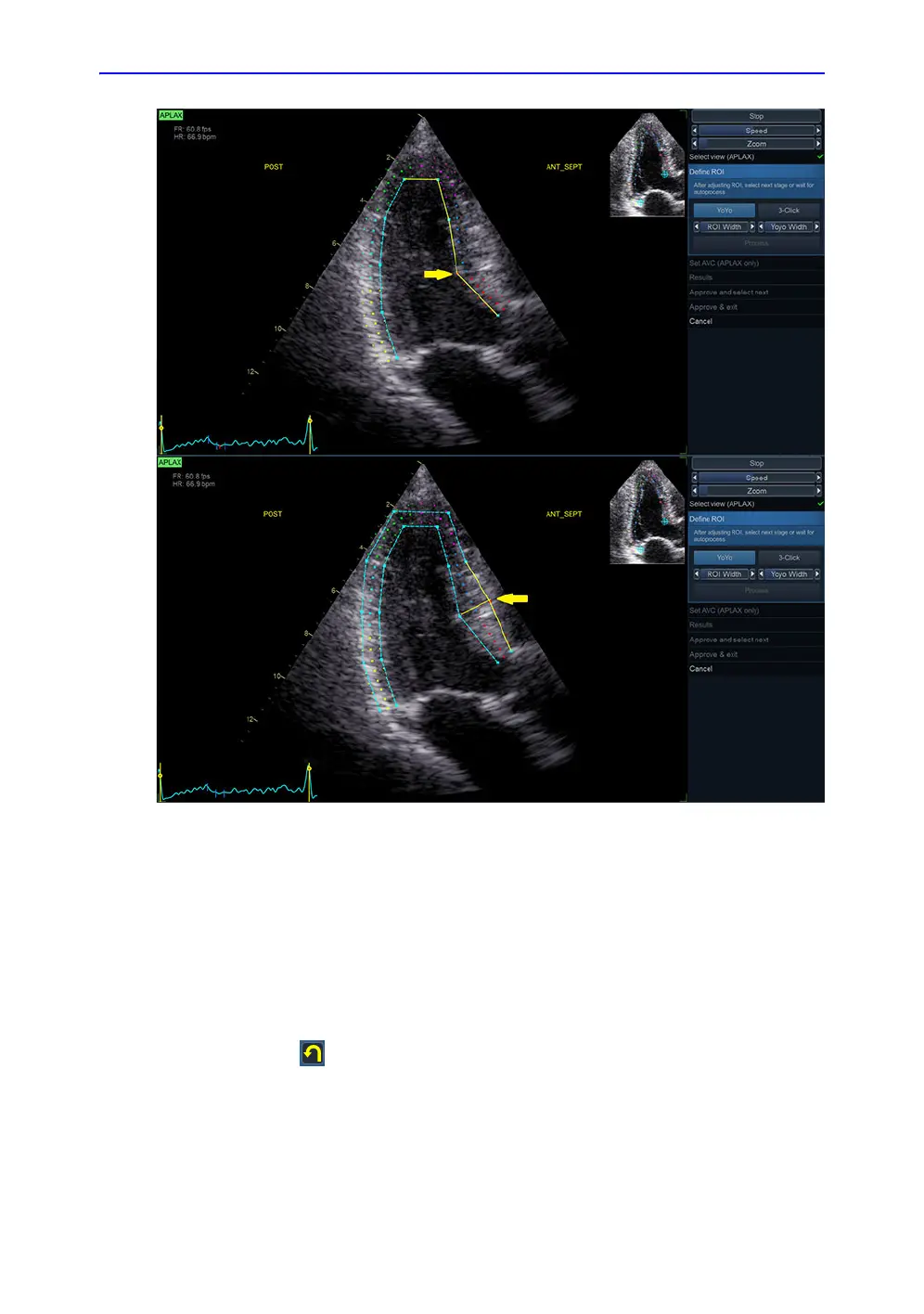

Figure 8-14. ROI Editing Options
To create a new ROI
The system automatically displays a frame where the
endocardial border is usually clearly visible. To use another
frame, while in Define ROI stage, pause the playback by
pressing Stop. Then, use the Frame slider to select a different
frame for ROI definition.
To create a new automatic ROI, click the Reset stage symbol
. This relaunches the automatic segmentation.
Sometimes the automatic ROI may fail to capture the correct
ROI. In this case, a 3-Point ROI alternative is provided.
NOTE: The 3-Point ROI is the standard ROI method for TEE data and
Pediatric exams.
