Customize Configuration
12-28 Vivid S70 / S60 – User Manual
BC092760-1EN
01

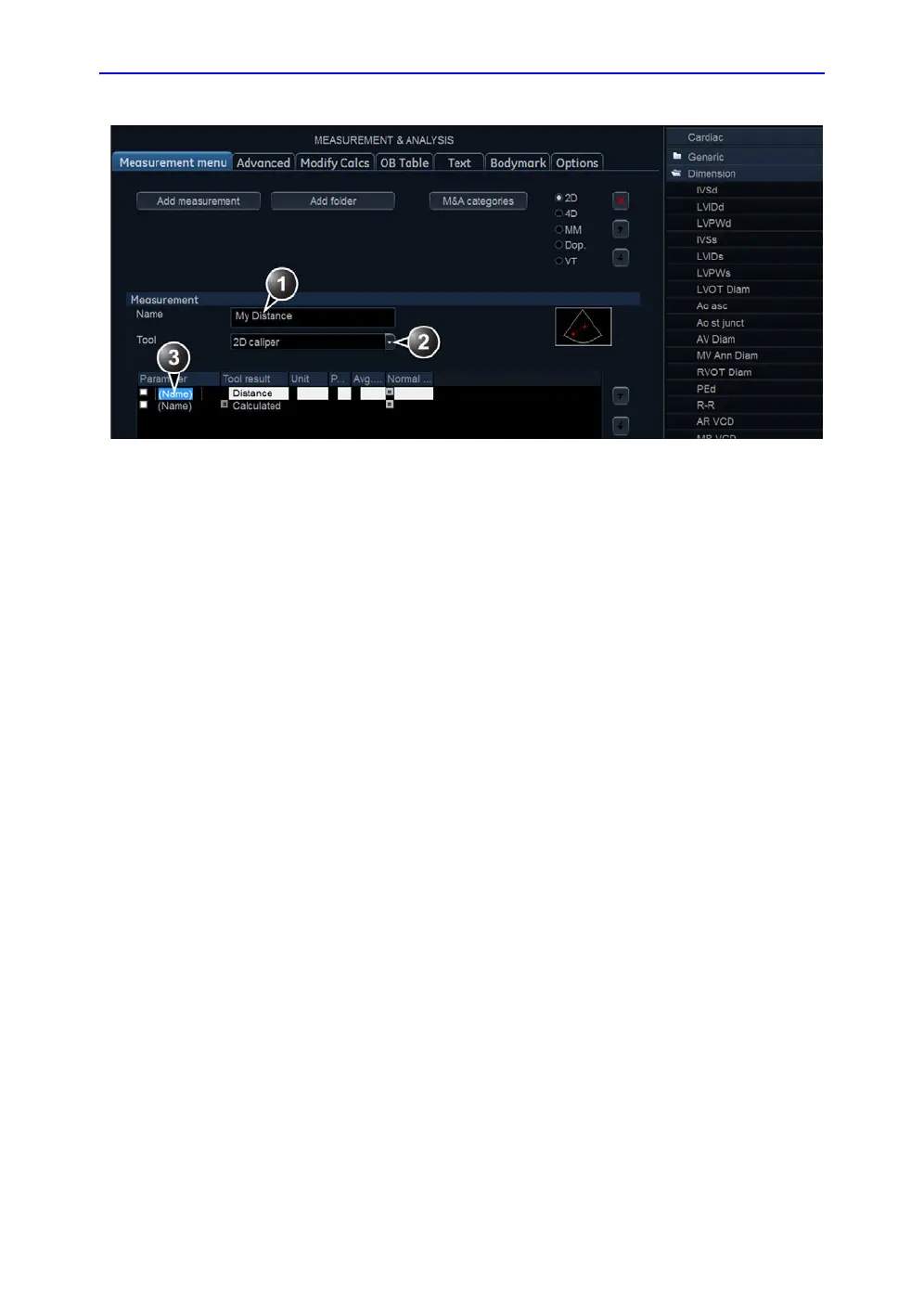

Figure 12-18. The Measurement menu sheet
6. In the Measurement menu sheet, enter the name for the
measurement (e.g. My Distance).
7. Select the appropriate measurement tool in the drop-down
menu, next to Tool (e.g. 2D Caliper).
8. Double-click (Name) in the appropriate parameter (e.g
Distance) and enter a name for the parameter (e.g. My
Length).
If desired change the system and the number of decimals
for the measurement by double clicking the values under
Unit and Precision (see also ‘About units’ on page 12-29).
1. Enter a name for the measurement.
2. Select the appropriate measurement tool.
3. Double click and enter the formula name.
