Measurement Package
Vivid S70 / S60 – User Manual 12-27
BC092760-1EN 01
User-defined measurements
Some user-defined formula may require measurements that do
not exist on the system. The following example based on a
generic distance measurement illustrates how to create
user-defined measurements.

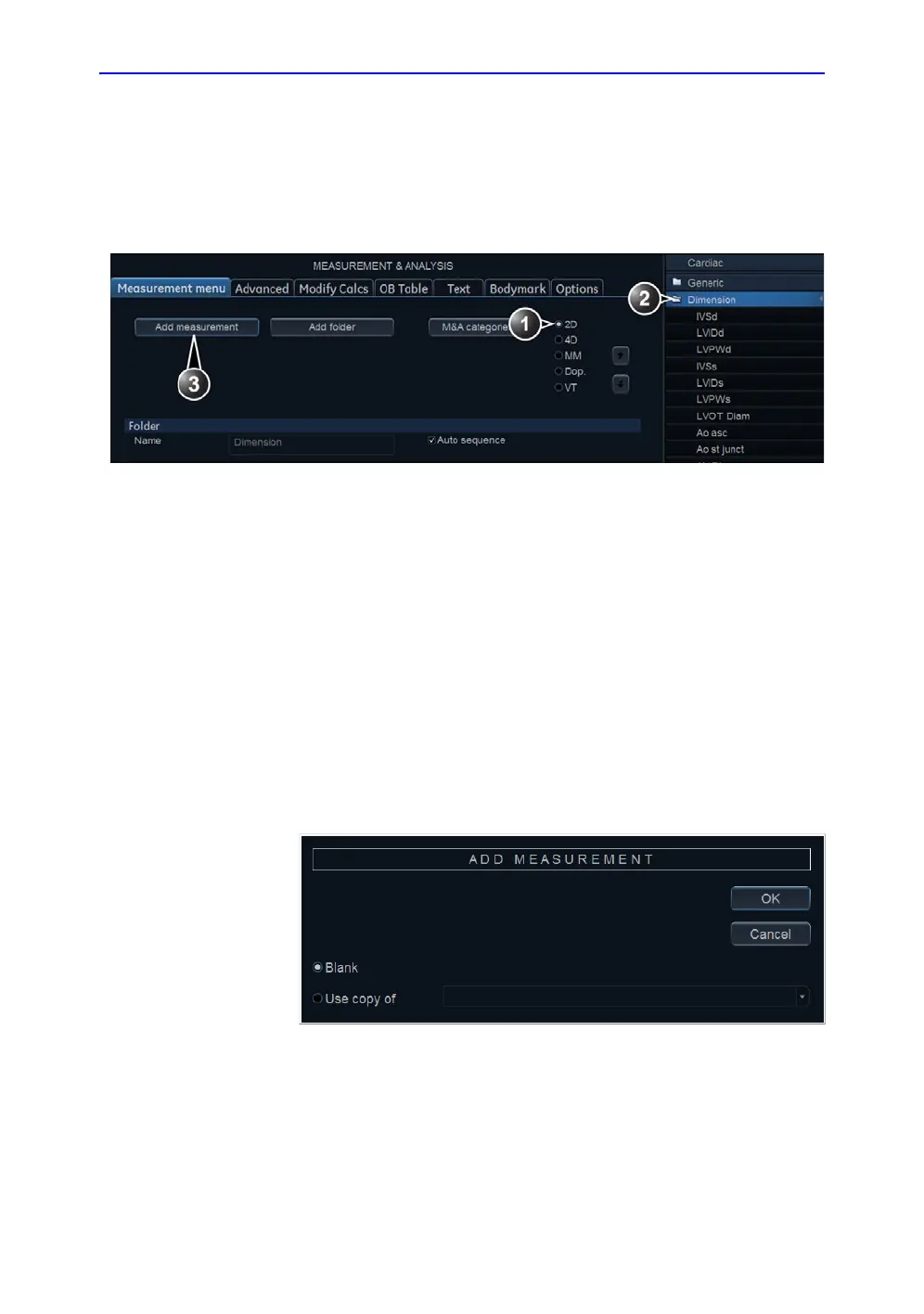

Figure 12-16. The Measurement menu sheet
1. Press Utility/Config on the Touch panel and select the
category Measure.
2. In the Measurement menu sheet, select the appropriate
scanning mode for the measurement to be created (e.g.
2D).
3. Select the appropriate folder in the Measurement menu
(e.g. Dimension).
4. Press Add Measurement in the Measurement menu sheet.
The Add measure window is displayed.
Figure 12-17. The Add measure window
5. Check Blank and press OK.
The Measurement menu sheet is updated.
1. Select the appropriate scanning mode.
2. Select the appropriate folder.
3. Press Add measurement.
