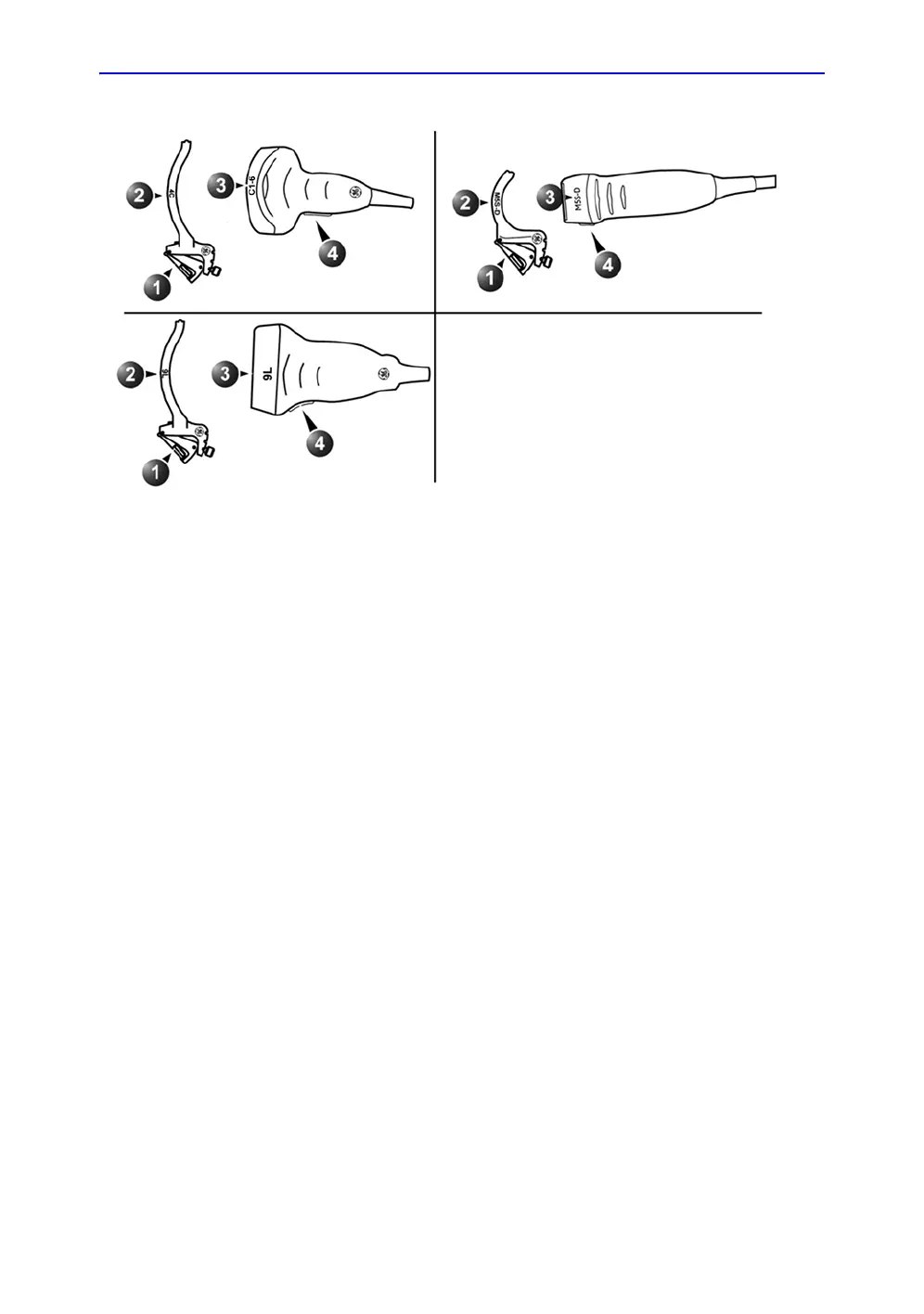

Figure 13-15. Probe/bracket alignment (representative examples)
Placing the probe and bracket into the sterile sheath
Refer to the Ultra-Pro II™ Needle Guide user manual.
Attaching the needle guide to the bracket
Refer to the Ultra-Pro II™ Needle Guide user manual.
1. Needle clip attachment on the bracket
2. Bracket label
3. Probe label
4. Probe orientation mark
