Operation – Monitoring and Diagnosis
ENG - Version 2.1 – P/N 04130.2 107
the right corner at the bottom of the preview screen. It is possible, however, to
switch to an alternative diagnostic filter setting, e.g.0.05 – 40 Hz. For this
purpose press the softkey [Filter]. HES
®
Light and HES
®
are not affected by
these filter settings.
Warning
If the factory setting of the filters is changed, the display of the ECG may be
affected. As a consequence, wrong interpretation of the ECG is possible,
which may result in inadequate treatment.
6. When the message "Ready for D-ECG" appears in the preview, press
the softkey [Start]. The ECG recorded up to this moment is discontinued
and saved.
7. The configuration dialogue for entering the patient’s sex and age opens.
The configuration dialogue has to be confirmed with the softkey [OK].
8. If required, further settings for the D-ECG can be configured with the
softkey [Config.].
9. With the softkey [Print] the D-ECG is printed out for diagnosis (see Fig.
6-11, page 108) and with the softkey [Send] it is sent.
10. To run another preview on the monitor, press the softkey [Cont.] or
11. Press the softkey [Cancel] to quit the preview and to switch to monitoring
mode.

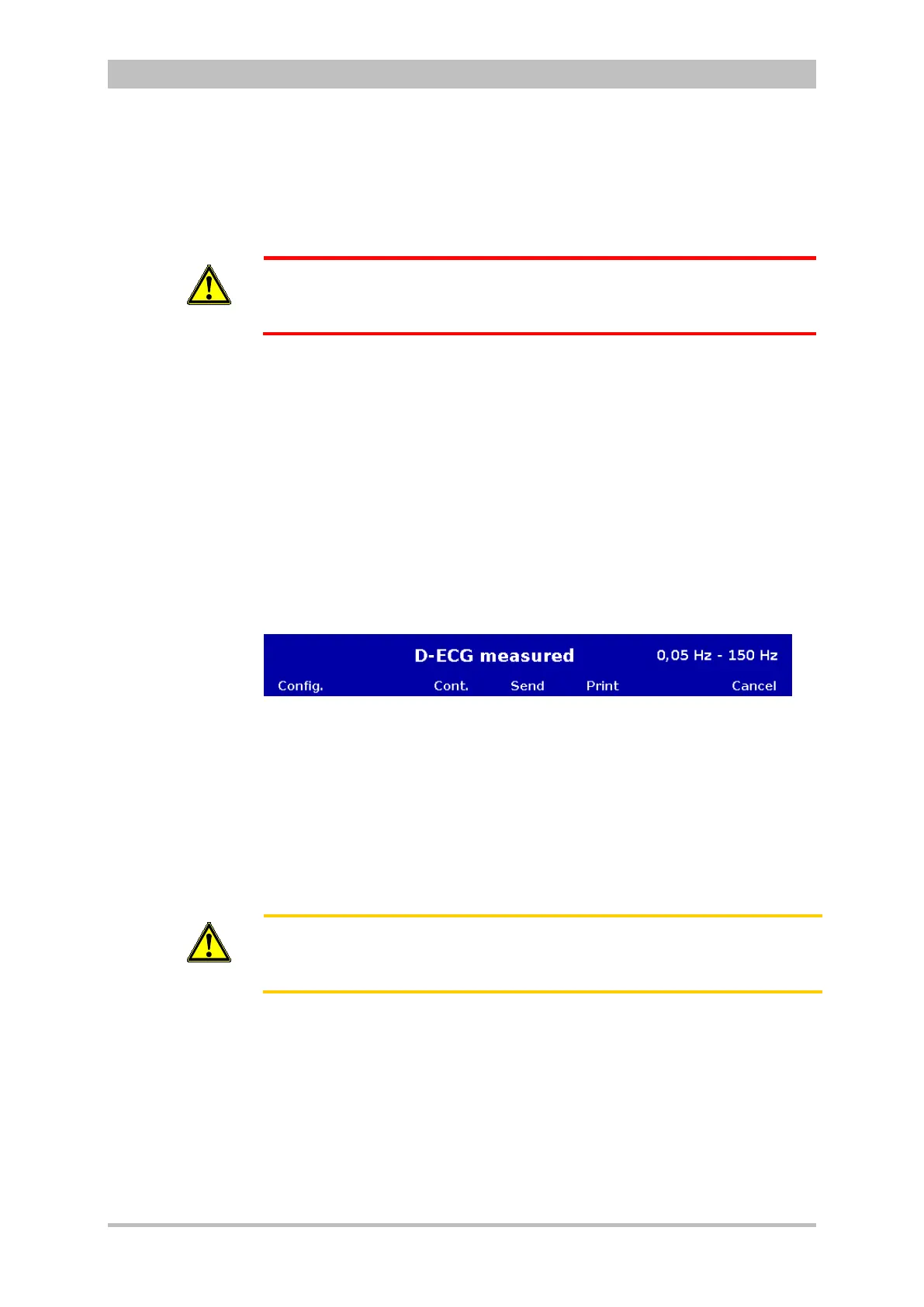

Fig. 6-10 D-ECG, options
If no patient data is to be entered at the moment, the prompt for the patient data
can be skipped with the softkey [OK] . The device automatically assumes a
male patient, aged 35, for ECG interpretation.
If the patient data have already been entered by means of the insurance card
reader (option), only the patient's sex has to be entered manually.to perform
ECG measurement and ECG interpretation.
Caution
Patient and insuree have to be one person, otherwise the results of the ECG
analysis can be misinterpreted.
ECG measurement and ECG interpretation requires approx. 2-3 seconds.
If the corpuls
3
is connected with a fax server or with corpuls.web, the D-
ECG is simultaneously printed and sent when the softkey [Print] is pressed.
(see chapter 7.4.8 Configuration of Telemetry (Persons Responsible for the
Device), page 170).
