Operation – Monitoring and Diagnosis
User Manual corpuls
3
108 ENG - Version 2.1 – P/N 04130.2

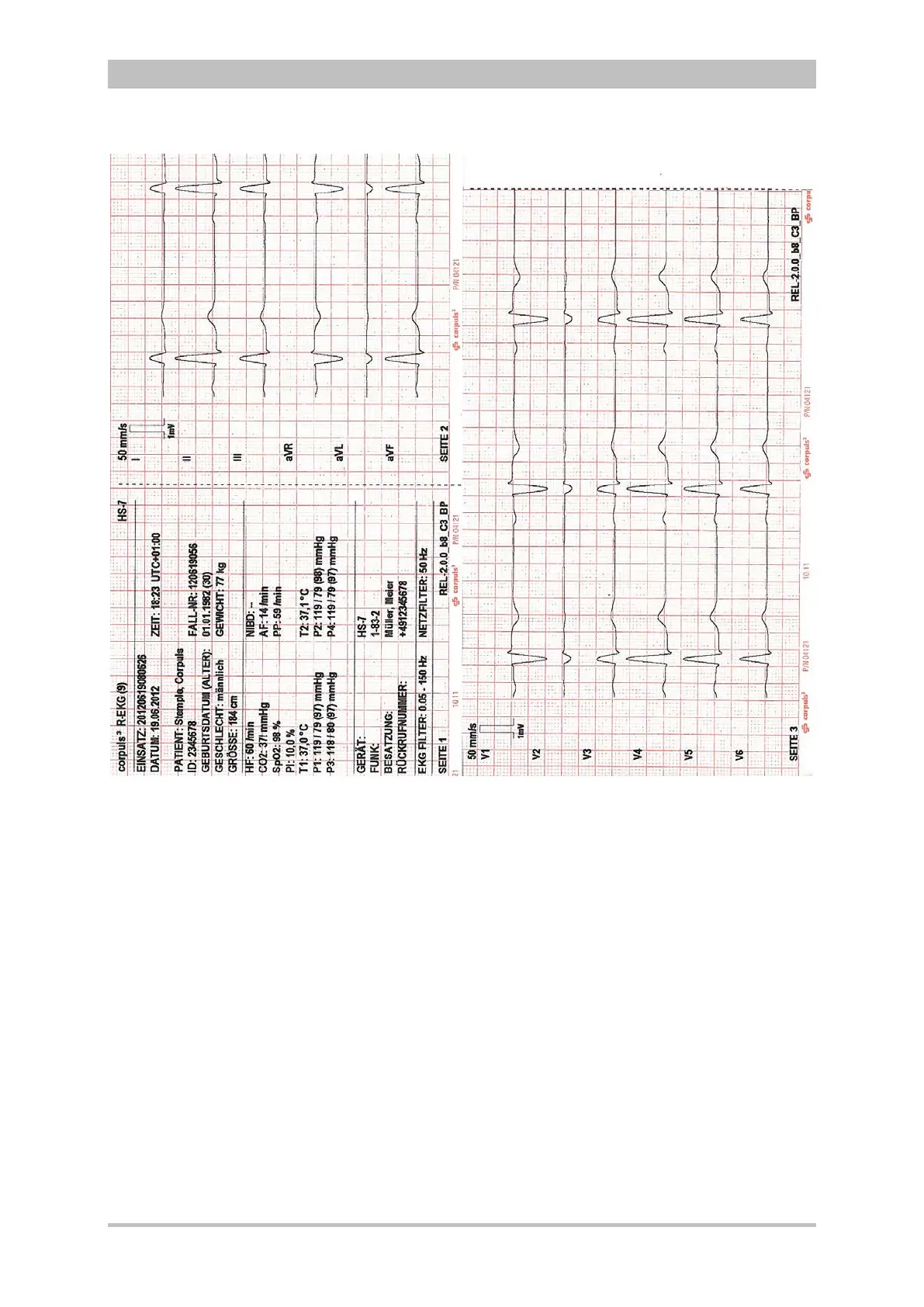

Fig. 6-11 Printout of 12-lead ECG (illustration may differ)
The D-ECG printout contains the trend values of the last minute at the time the
softkey [Print] is pressed. For this reason the D-ECG recorded may originate
from an earlier time.
The format and the duration of the D-ECG printout can be configured with the
softkey [Config.] (see chapter 7.1.3 Printer settings, page 143).
Every printed D-ECG is documented as an event in the log.
for D-
