User Manual corpuls
3
Configuration
ENG - Version 2.1 – P/N 04130.2 141
1. In the main menu, select "Signals" ► "Parameters".
The configuration dialogue opens.

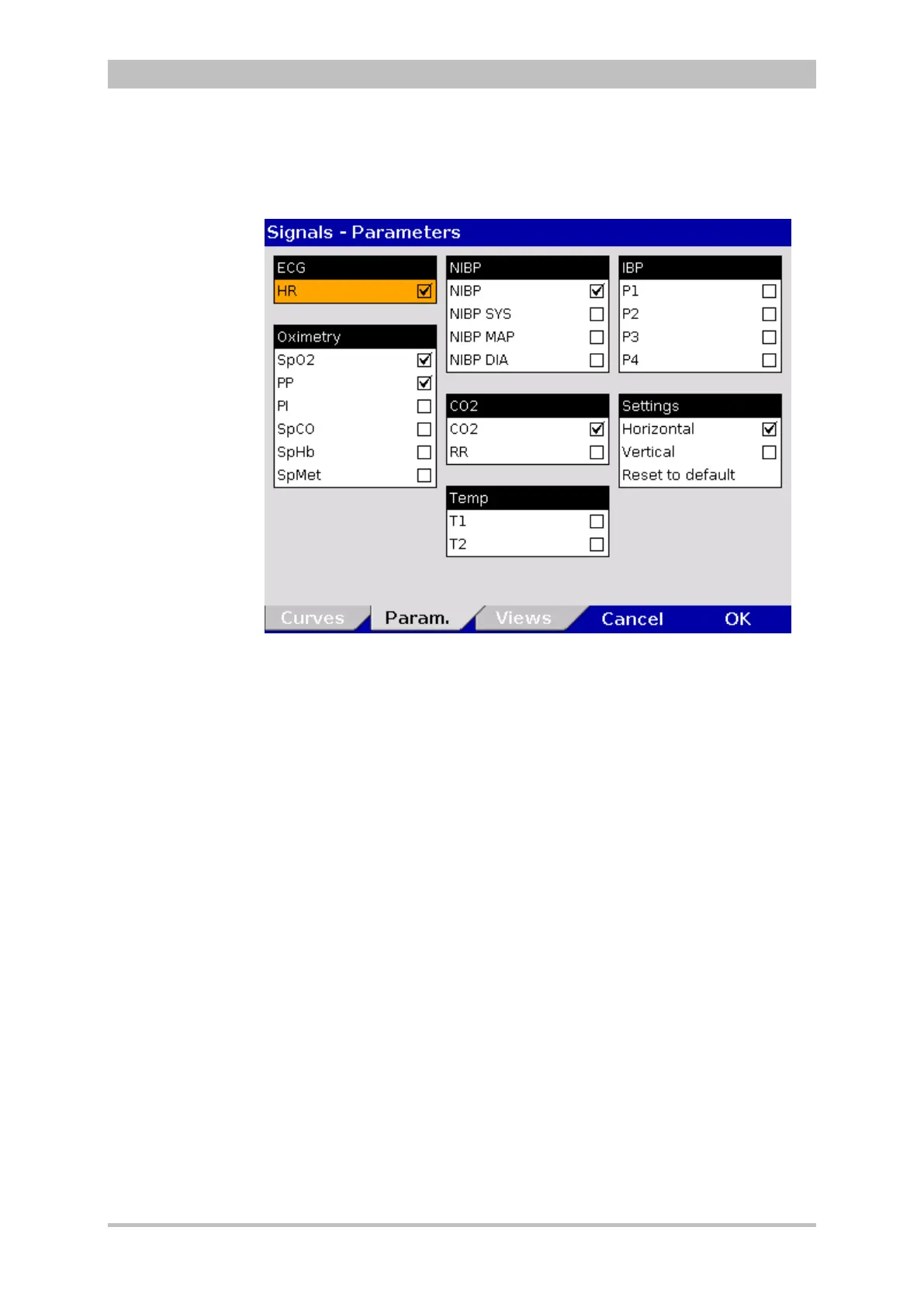

Fig. 7-3 Displaying parameter fields
2. Select the arrangement of the parameters in the group "Settings" for the
following fields:
• Horizontal and/or
• vertical
3. Select the field “Reset to default” to set the configuration back to the last
settings before opening this configuration dialogue. Changes can so be
undone without having to close the configuration dialogue.
4. Select the parameters to be displayed.
5. To confirm the settings and close the configuration dialogue, press the
softkey [OK].
To retain the previous settings and close the configuration dialogue, press
the softkey [Cancel].
