General Operating Instructions
ENG - Version 2.1 – P/N 04130.2 59
Rainbow ECG-D
ECG-M

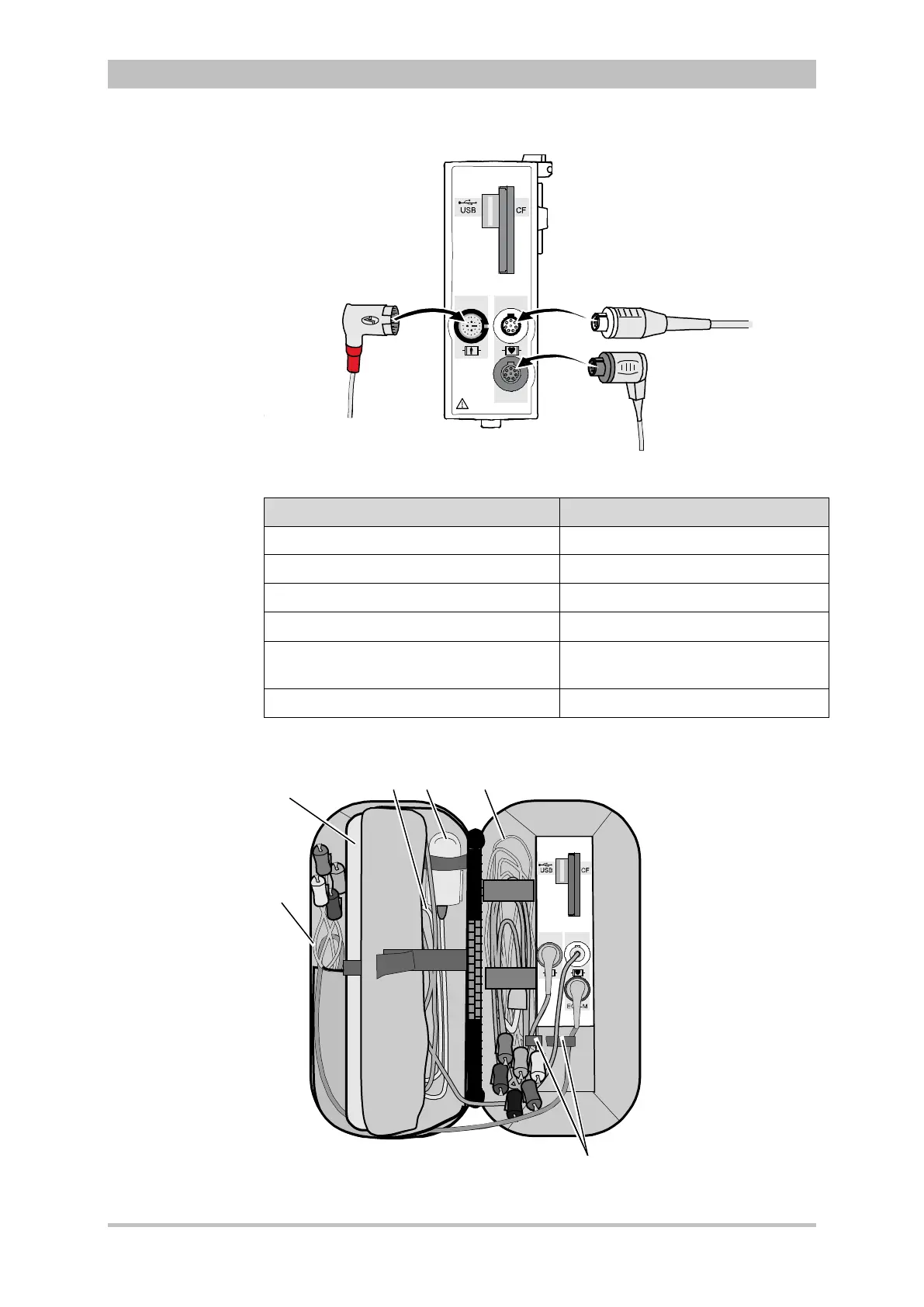

Fig. 4-29 Connecting the plugs on the left-hand side of the patient box
Accessory Position
4-pole ECG monitoring cable (item 1) Outermost pocket
Pack of ECG electrodes (item 2) Left-hand pocket on central section
Oximetry intermediate cable (item 3) Right-hand pocket on central section
Oximetry finger sensor (item 4) Elastic band on central section
Complementary 6-pole ECG diagnostic
cable (item 5)
On the left next to the patient box
interfaces
Strain relief for right-angle plug (item 6) –
Table
4-5 Contents of left-hand bag
1
2
4 5
6
3
Ra
inbo
w EC
G-D
Fig. 4-30 Contents of left-hand bag (illustration may differ)
Connecting
cables on
left-
hand side
Left-hand bag
