ECC800 Data Center Controller
User Manual (for ECC800-Pro)
Copyright © Huawei Technologies Co., Ltd.

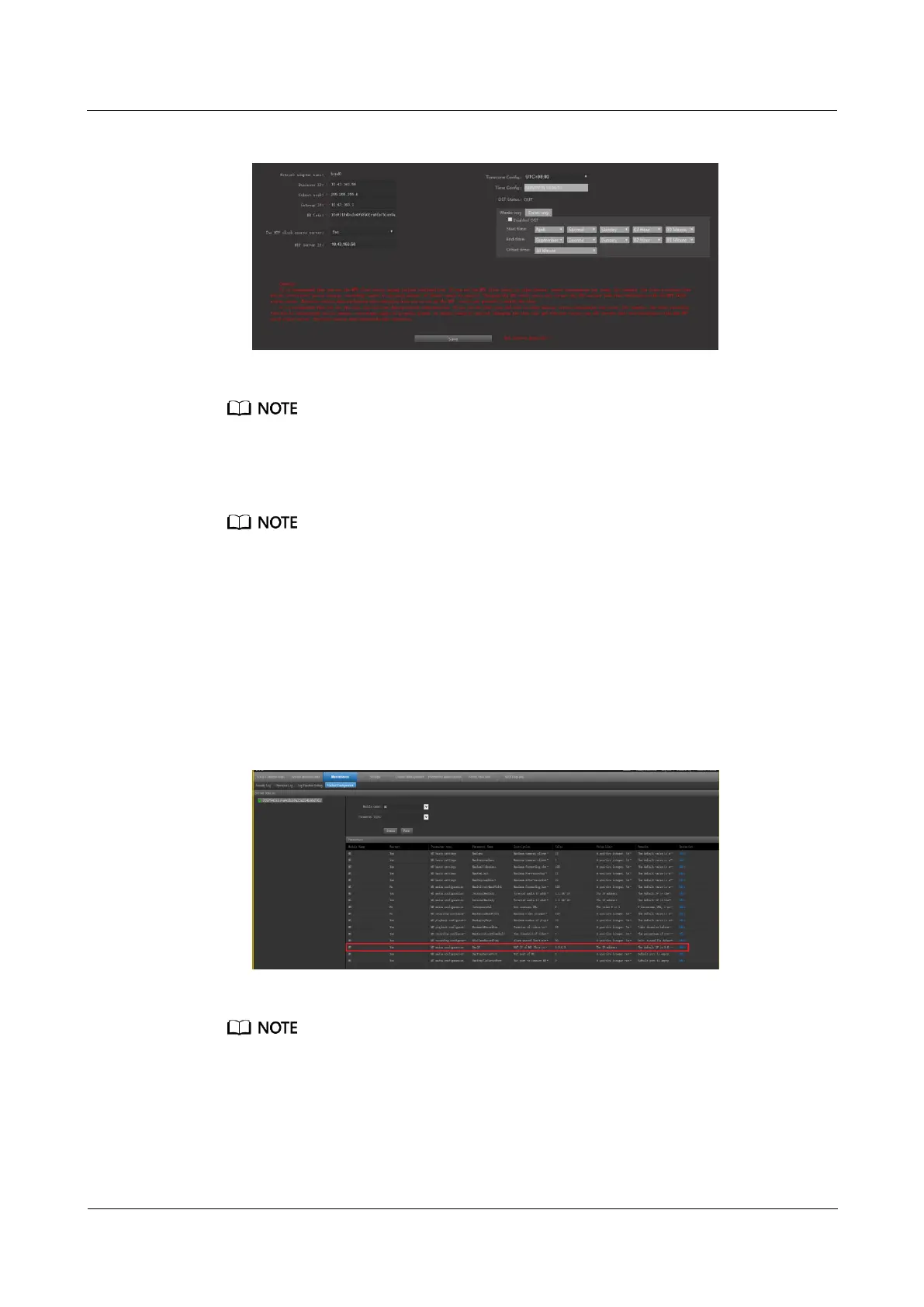

Figure 6-29 Configuring the server
Set Business IP to XXX.XXX.XXX.XXX, Subnet mask to 255.255.255.0, and Gateway IP to
XXX.XXX.XXX.XXX. The values here are examples. The actual value prevails.
4. (Optional) Configure the NTP synchronization. After setting The NTP clock source
server to Yes, set the IP address of the NTP server.
Currently, the VCN and NTP source server must be in the same LAN for NTP synchronization. For
details, see Step 2.
If the VCN and the NTP source server are not in the same LAN, you need to manually set the time as
follows: Choose Local Configuration > Server configuration and change Timezone config and Time
config based on the time of the source server to be synchronized.
5. Choose Maintenance > Unified Configuration, set Module name to MU, and click
Search.
6. In the search result, click Edit in the row where the value of Parameter Name is NatIP
and set Value to the external IP address of the VCN. Click Save.
Figure 6-30 Setting the external IP address of the MU
Set NatIP to the external IP address of the VCN, which is the same as the external IP address mapped by
the VCN on the ECC800-Pro.
7. Set Module name to OMU and click Search.
8. In the search result, click Edit in the row where the value of Parameter Name is
OMUNatIP and set Value to the NATIP address of the MU. Click Save.
