ECC800 Data Center Controller
User Manual (for ECC800-Pro)
3 Device Description
Issue 06 (2020-04-22)
Copyright © Huawei Technologies Co., Ltd.
71

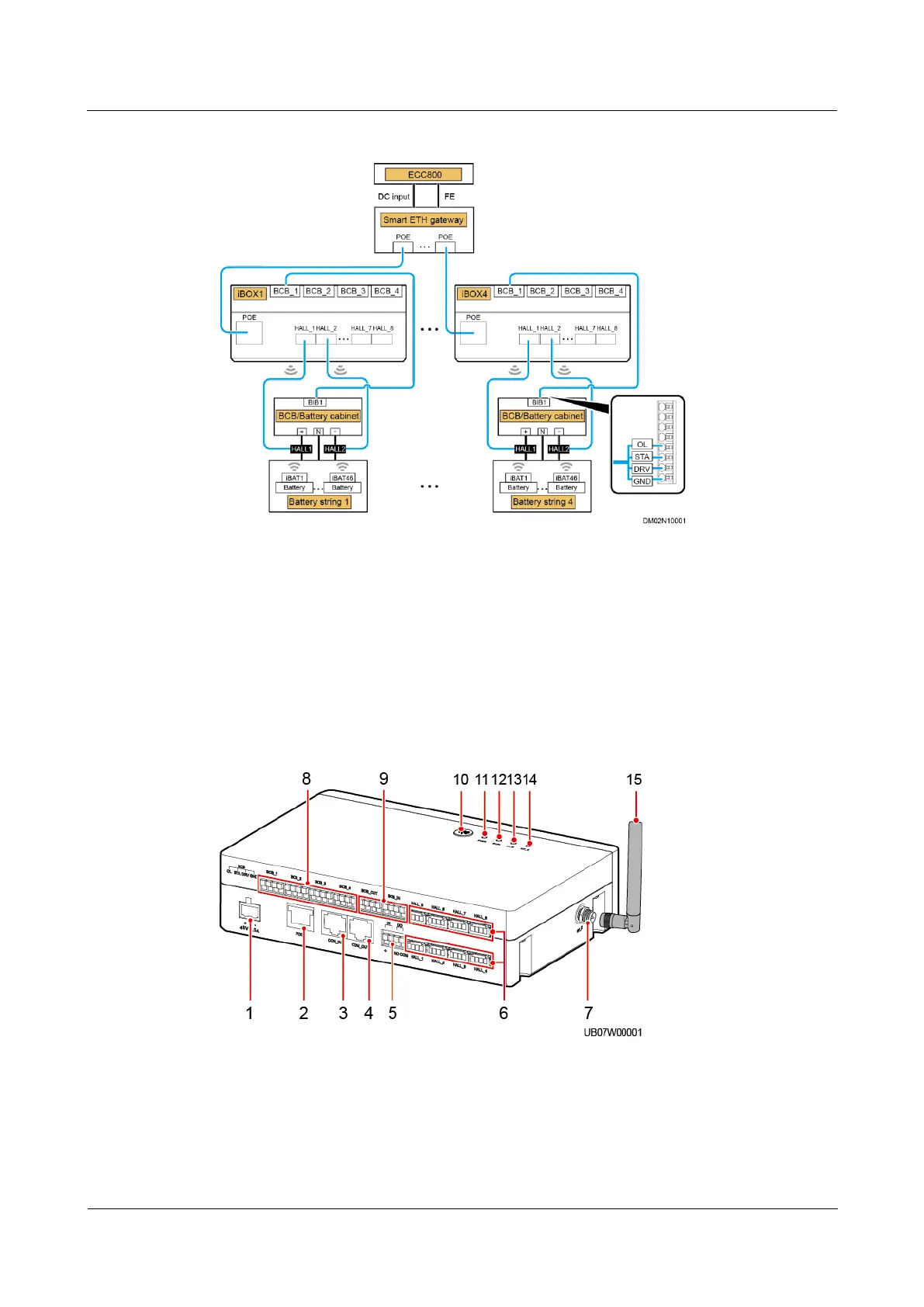

Figure 3-44 Connecting the iBOX signal cable
3.2.20.1 iBOX
iBOX is a battery information collection module. It collects battery status data from the
downstream iBAT groups through wireless communication, and sends the data to the ECC,
UPS, and the third-party network management system (NMS) through COM or POE ports.
Appearance
Figure 3-45 iBOX front view
(1) –48 V 0.5 A port
(power input)
(2) POE port
(3) COM_IN port (RS485
communication input)
(4) COM_OUT port
(RS485 communication
output)
(5) DI and DO ports
(6) HALL_1–HALL_8
current monitoring ports
