Huawei ECC800 - T;H Sensor (BOM Number: 02311 FQG)

ECC800 Data Center Controller
User Manual (for ECC800-Pro)
3 Device Description
Issue 06 (2020-04-22)
Copyright © Huawei Technologies Co., Ltd.
67
Pin
Description
Pin7
Reserved
Table 3-67 T/H sensor specifications
Item
Specifications
Temperature measuring range
–20°C to +80°C
Temperature accuracy
±0.5°C (25°C)
≤ ±1°C (full measuring range)
Operating temperature
–20°C to +80°C
Operating voltage
9–16 V DC
Storage temperature
–40°C to +80°C
Output
Two RJ45 ports, bidirectional cascading
3.2.18.4 T/H Sensor (BOM Number: 02311FQG)

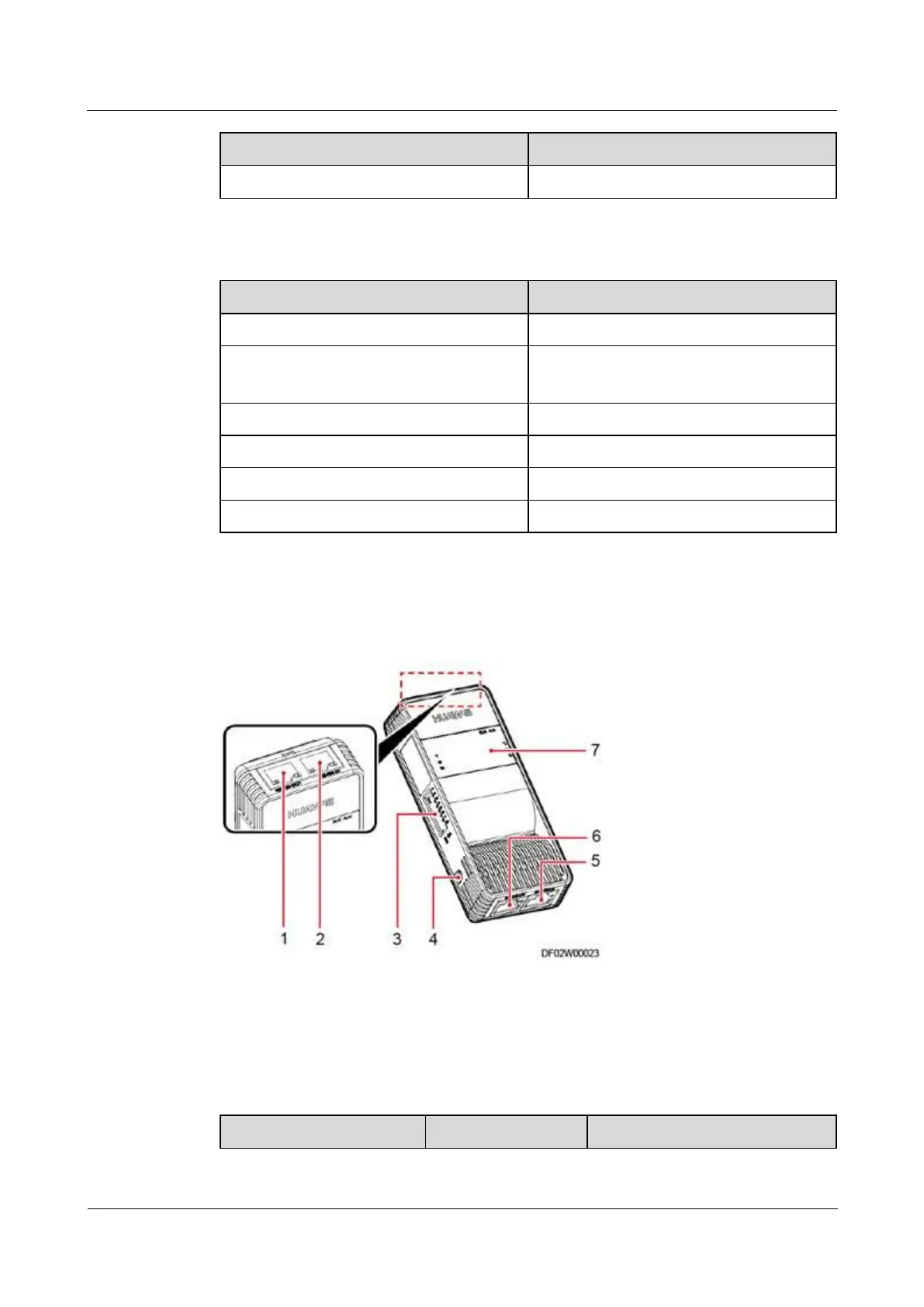

Figure 3-41 Appearance
(1) RS485-OUT
(2) RS485-IN
(3) DIP switch
(4) Button
(5) NTC1–3
(6) NTC4–6
(7) Display
Table 3-68 T/H sensor specifications
Item
Temperature
Humidity
