Huawei ECC800 - T;H Sensor (BOM Number: 33010516)

ECC800 Data Center Controller
User Manual (for ECC800-Pro)
3 Device Description
Issue 06 (2020-04-22)
Copyright © Huawei Technologies Co., Ltd.
66
Item
Specifications
Operating temperature
–10°C to +55°C
Operating voltage
9–16 V DC
Storage temperature
–40°C to +70°C
Output
RS485

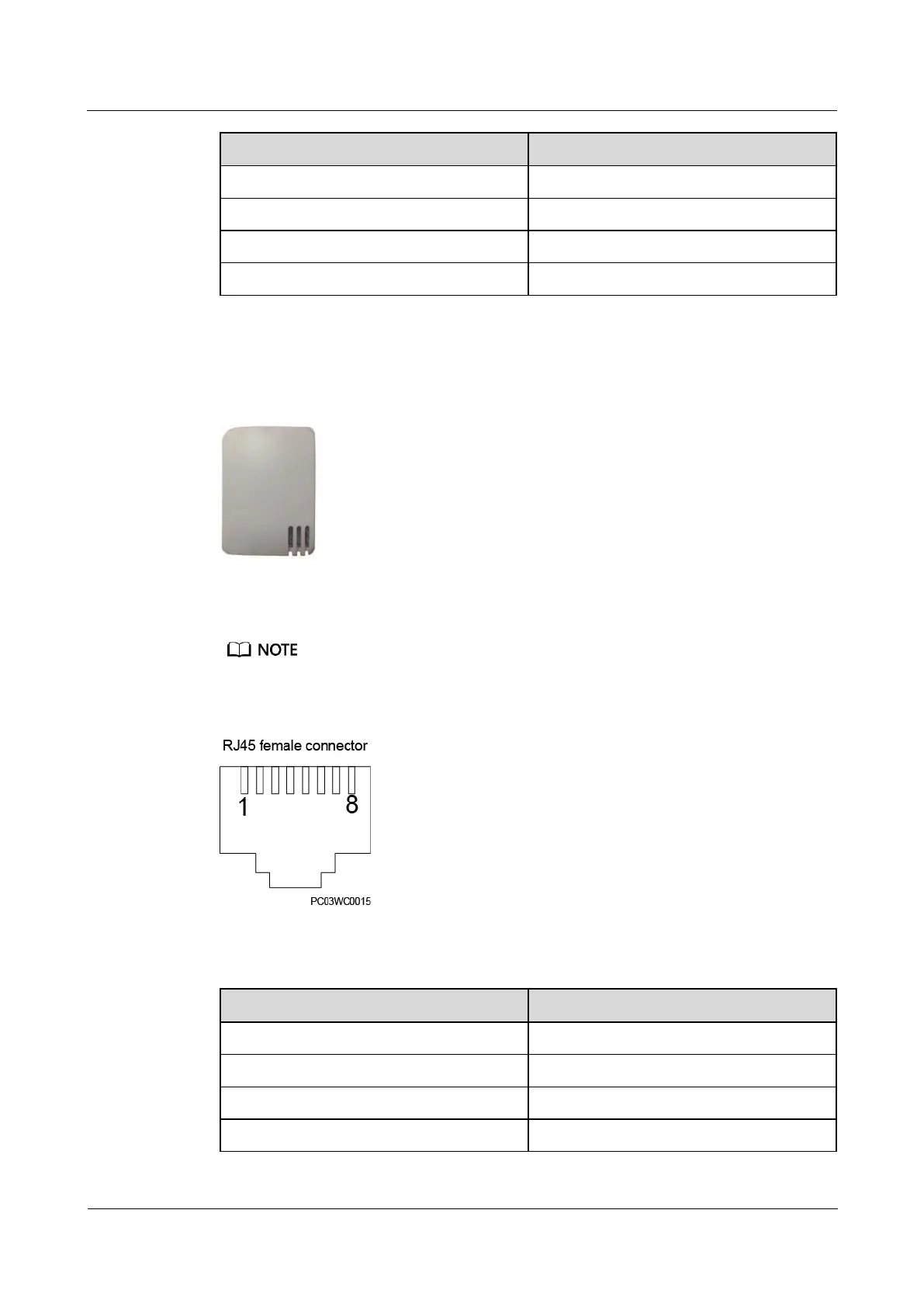

3.2.18.3 T/H Sensor (BOM Number: 33010516)
Figure 3-39 Appearance
The T/H sensor uses an RJ45 connector.
The appearance of the T/H sensor depends on the onsite delivery.
Figure 3-40 Pins of an RJ45 connector
Table 3-66 Pin description of an RJ45 connector
Pin
Description
Pin1 or Pin 4
A
Pin2 or Pin 5
B
Pin3
V+
Pin6
V-
