3.2.5 AC Actuator
The AC actuator is used in a smart module to control the lighting inside the smart module by
receiving commands from the access control system or host, infrared linkage information
(disabled by default), or signals from the light button. It also provides a charging port for the
pad.

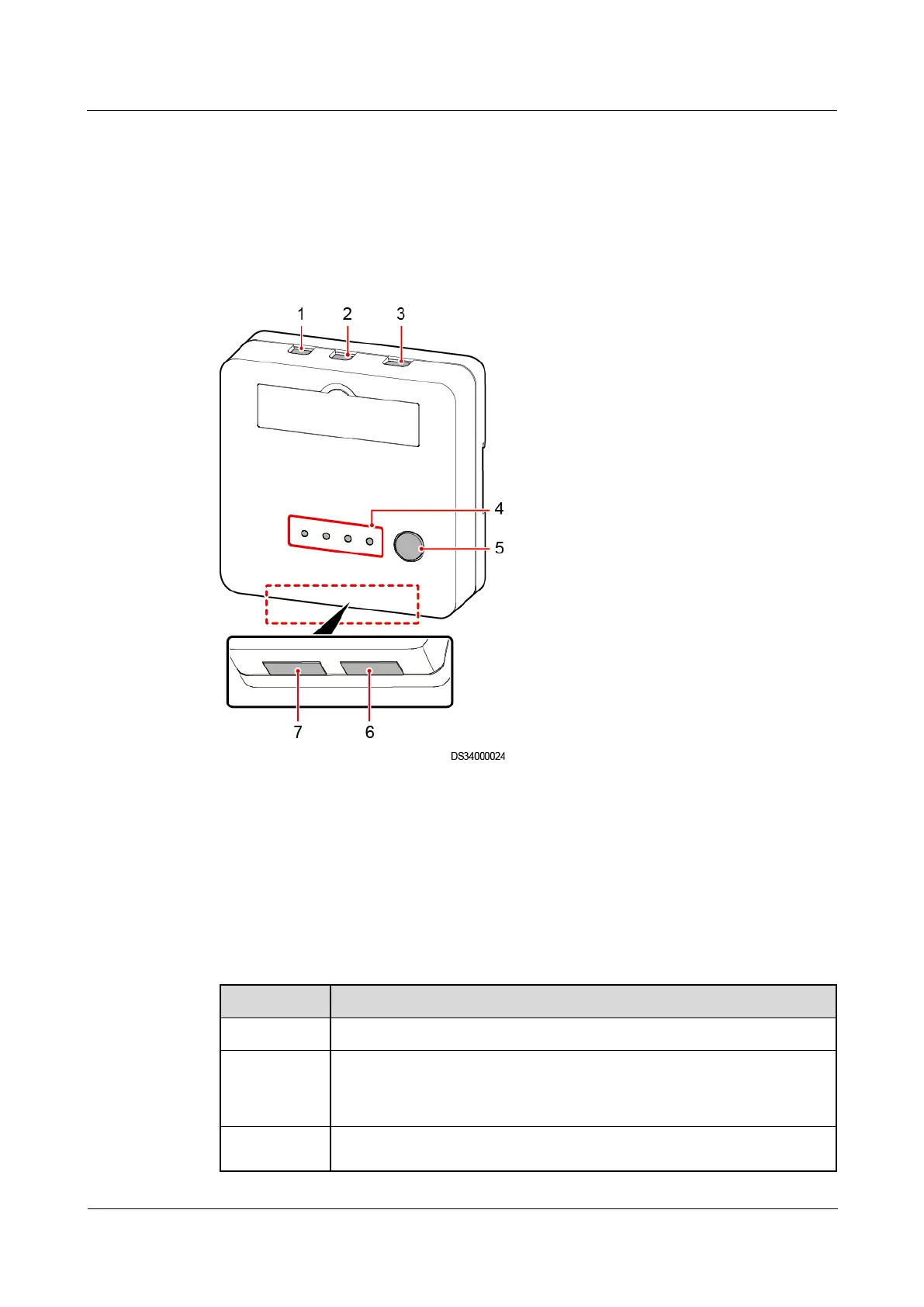

Figure 3-20 AC actuator
(1) AC OUT2 port
(2) AC OUT1 port
(3) AC IN port
(4) Status indicator
(5) BLINK button
(6) AI/DI dry
contact
(7) COM1–2 RS485
port
Specifications
Table 3-39 AC actuator technical specifications
Item
Specifications
Power input
One AC input, 100–240 V AC.
Power output

AC OUT1: two AC outputs, 100–240 V AC, maximum total current: 5
A.

AC OUT2: one AC output, 100–240 V AC, maximum current: 5 A.
Wireless
communicatio
One wireless communication port, complying with IEEE802.15.4
