Huawei ECC800 - Access Actuator

ECC800 Data Center Controller
User Manual (for ECC800-Pro)
3 Device Description
Issue 06 (2020-04-22)
Copyright © Huawei Technologies Co., Ltd.
32
Item
Specifications
Read/write distance
1–3 cm
Storage capacity
8 kbit, 16 partitions
The emergency button or emergency door release button is used to open a door in
emergencies.

The emergency button can disconnect the power supply to the lock and therefore unlock
the door in case of emergency.

In case of emergency, break the glass of the emergency door release button to disconnect
the power supply to the lock and therefore unlock the door.
3.2.4.1.1 Access Actuator
The access actuator is the control component for the aisle door in a smart module. It connects
to the ECC800-Pro controller over FE port, wireless networking (802.15.4). It opens the
magnetic lock by detecting the card swiping information of the card reader, door open button
information, and fire linkage information. It has access right management, access event record,
and alarm record functions.

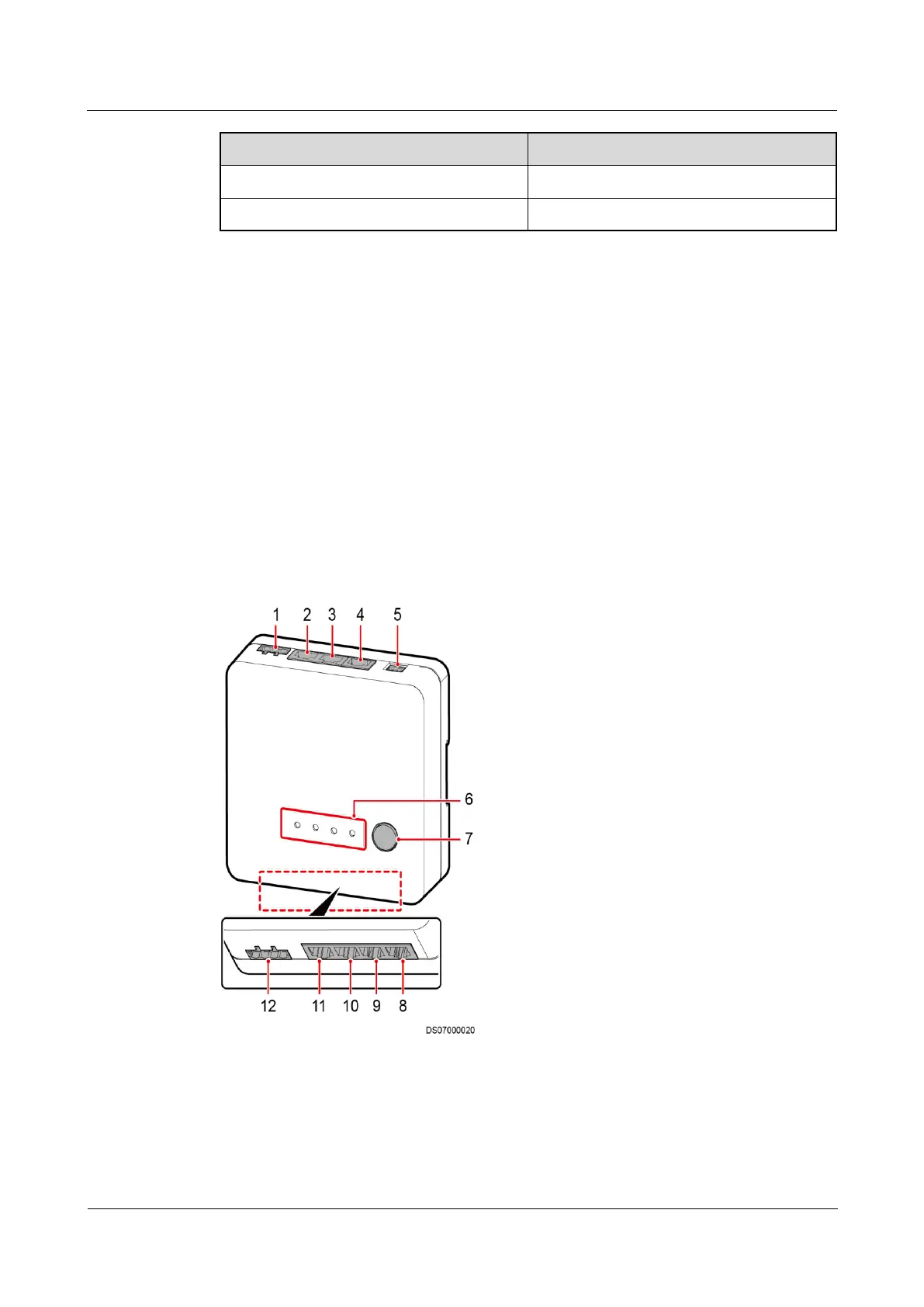

Figure 3-10 Access actuator
(1) 48 V power port
(2) POE port
(3) RS485 port COM2
(4) RS485 port COM1
(5) Address DIP switch
(6) Status indicator
(7) BLINK button
(8) WG_2 Wiegand
interface
(9) WG_1 Wiegand interface
