Huawei ECC800 - Main Control Module

ECC800 Data Center Controller
User Manual (for ECC800-Pro)
3 Device Description
Issue 06 (2020-04-22)
Copyright © Huawei Technologies Co., Ltd.
15
Port Type
Pin
sequence
Description
AC
Pin1
L
Pin2
PE
Pin3
N
DC
Pin1
48V+
Pin2
48VGND
3.1.2 Main Control Module

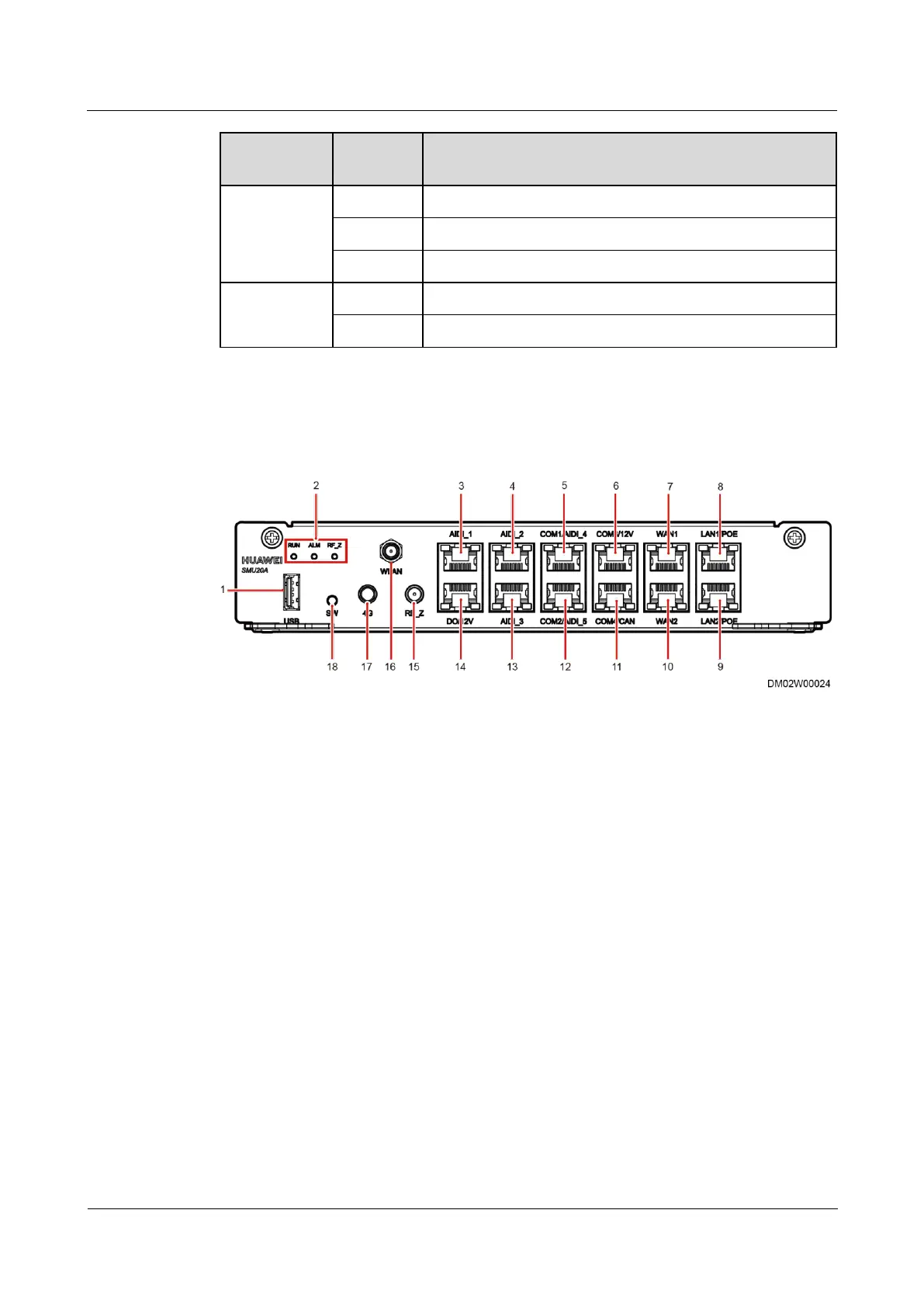

Figure 3-3 ECC800-Pro collector main control module
(1) USB
(2) Status indicator
(3) AIDI_1
(4) AIDI_2
(5) COM1/AIDI_4
(6) COM3/12V
(7) WAN1
(8) LAN1/POE
(9) LAN2/POE
(10) WAN2
(11) COM4/CAN
(12) COM2/AIDI_5
(13) AIDI_3
(14) DO/12V
(15) RF_Z
(16) WLAN
(17) 4G
(18) SW button
