ECC800 Data Center Controller
User Manual (for ECC800-Pro)
3 Device Description
Issue 06 (2020-04-22)
Copyright © Huawei Technologies Co., Ltd.
35
Item
Description
(control
magnetic
locks) pin
sequence
GND
GND
GATE/COM
(door status)
pin sequence
GATE
DI1
COM
COM
3.2.4.1.2 Fingerprint and Card Reader with a Keypad

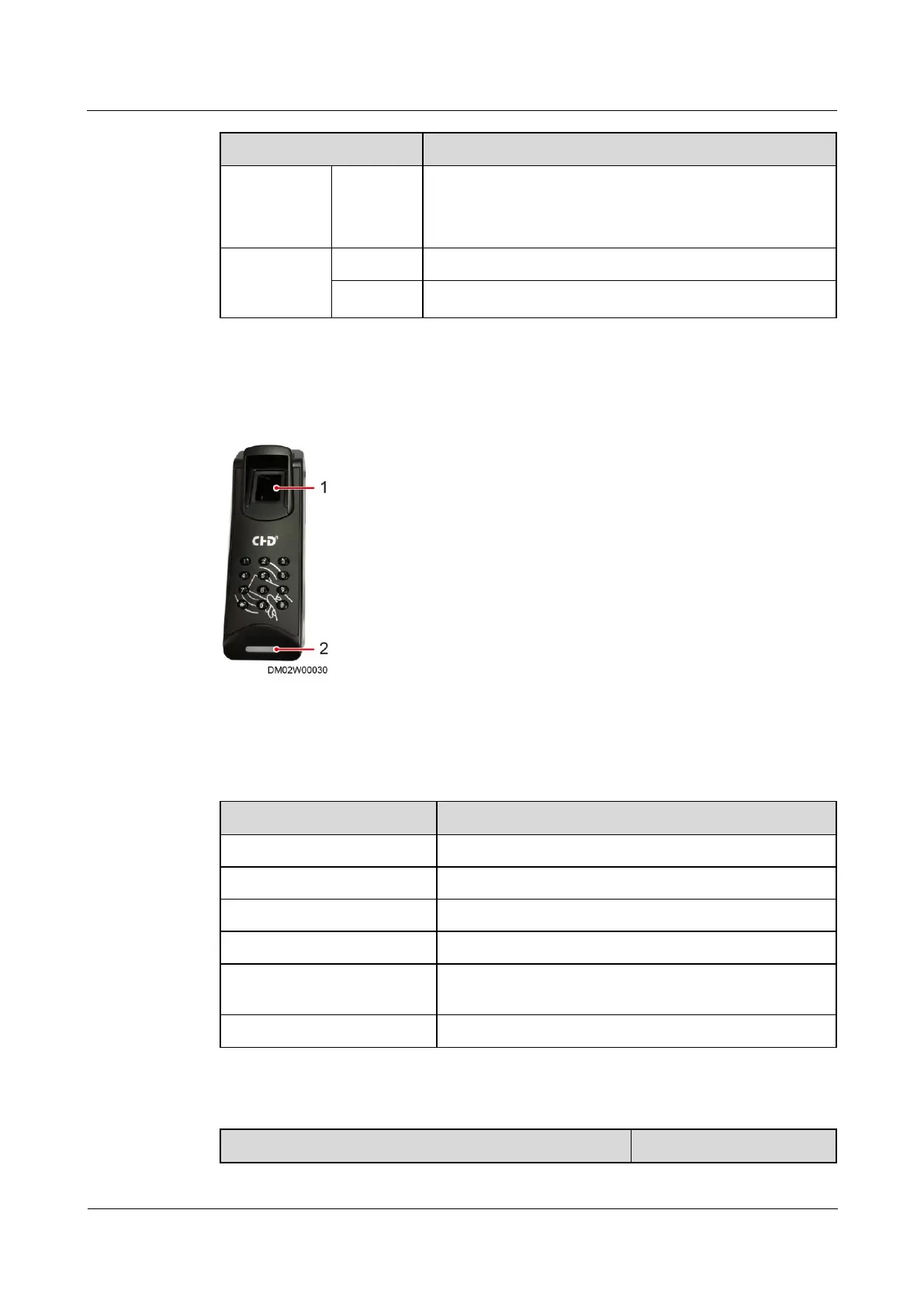

Figure 3-11 Fingerprint and card reader with a keypad
(1) Fingerprint reader
(2) LED indicator
Table 3-31 Specifications for the fingerprint and card reader with a keypad
Item
Specifications
Dimensions (L x W x H)
156 mm x 53 mm x 38 mm
Rated operating voltage
12 V DC±15%
Rated operating current
300 mA±15%
Card type supported
IC card
Authorized storage
A maximum of 3000 authorized users, with a maximum
of 6000 fingerprints
Communications mode
RS485 and Wiegand communications ports
Table 3-32 Access control device operating status
Item
New Version
