ECC800 Data Center Controller
User Manual (for ECC800-Pro)
Copyright © Huawei Technologies Co., Ltd.
5%–95% RH (non-condensing)
0–4000 m (When the altitude is between 3000 m and 4000 m,
the temperature decreases by 1°C for each additional 200 m.)
Table 3-2 ECC800-Pro structural specifications
442 mm x 330 mm x 43.6 mm
7.5 kg (dual power supplies + main control
module)
Can be installed in a 1 U space in a standard
19-inch cabinet

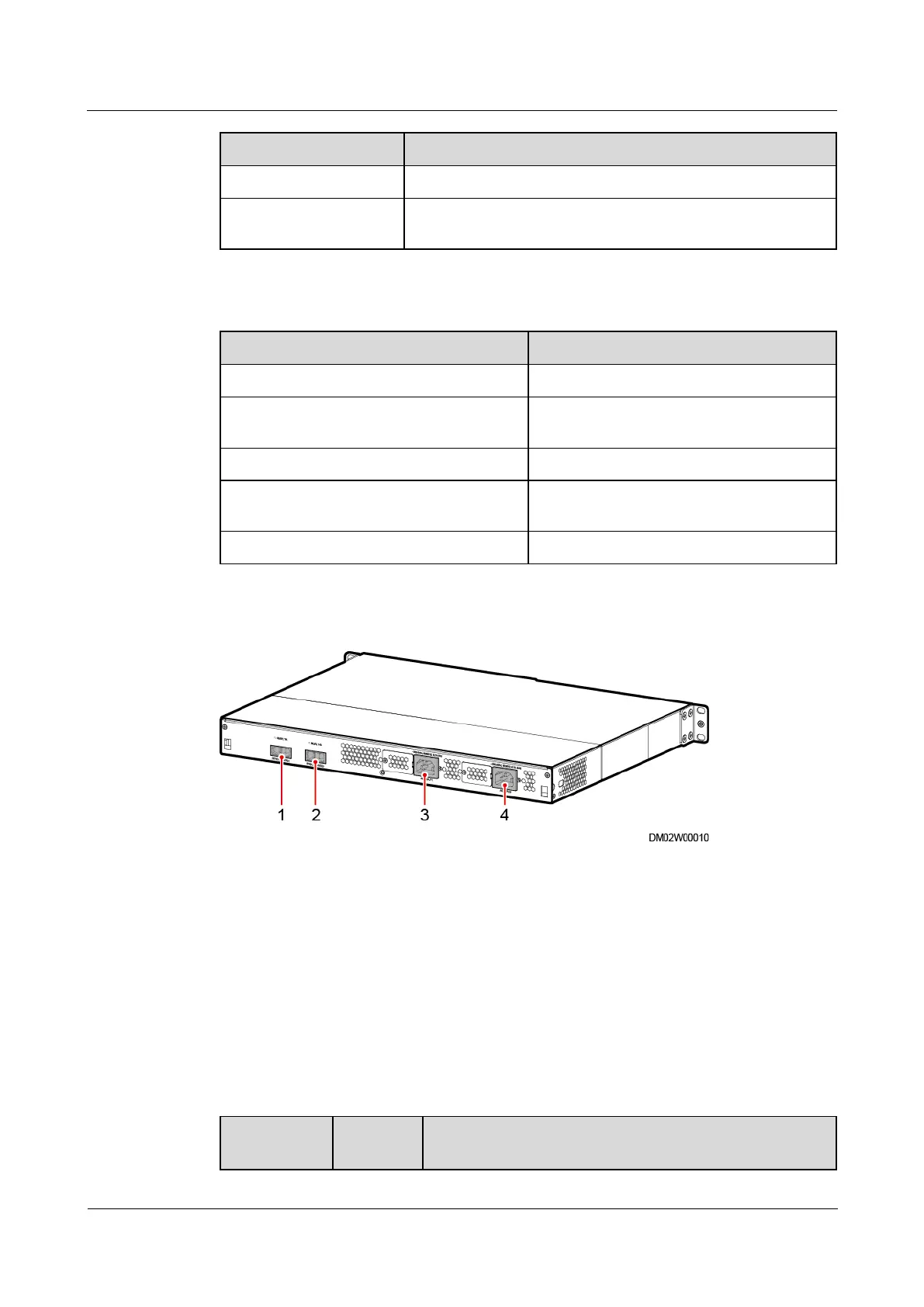

Figure 3-2 ECC800-Pro (rear view)
Power Port
The ECC800-Pro provides four power ports, including two AC input ports (AC_INPUT1 and
AC_INPUT2) and two DC output ports (DC_OUTPUT1 and DC_OUTPUT2). Table 3-3
provides the power port pin definitions.
Table 3-3 Power port pin definitions
