ECC800 Data Center Controller
User Manual (for ECC800-Pro)
Copyright © Huawei Technologies Co., Ltd.

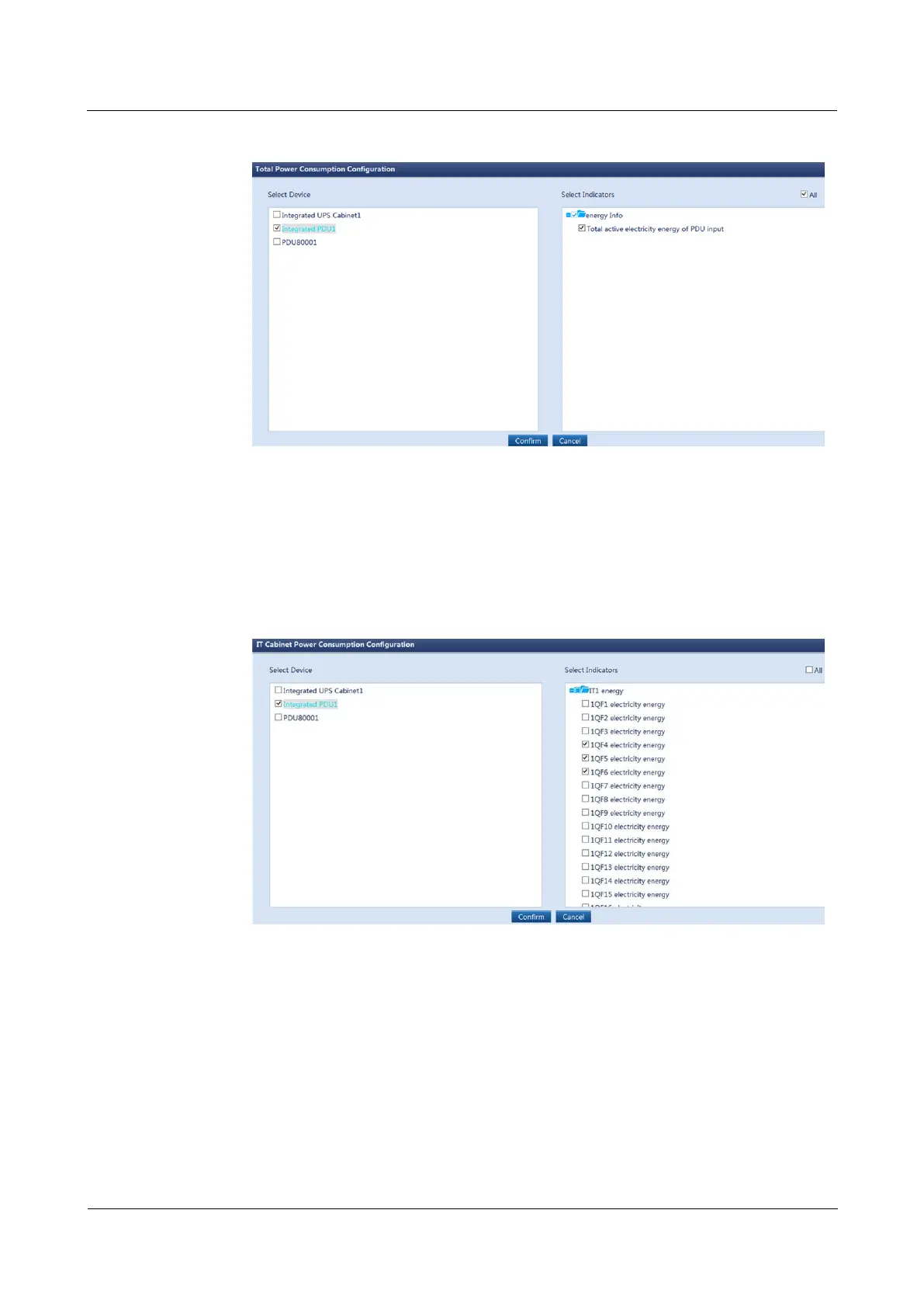

Figure 6-42 Total power consumption configuration
2. On the IT Cabinet Power Consumption Configuration tab page, click Add to enter
the IT Cabinet Power Consumption Configuration page. On the Select Device tab
page, select Integrated PDU 1 and on the Select Indicators tab page, select 1QF4
electricity energy, 1QF5 electricity energy, and 1QF6 electricity energy, and click
Confirm.
Figure 6-43 IT cabinet power consumption configuration
3. Under Total Power Consumption Configuration and IT Cabinet Power
Consumption Configuration, click the edit icon on the right to modify the multiple for
calculating indicators, as shown in Figure 6-44.
