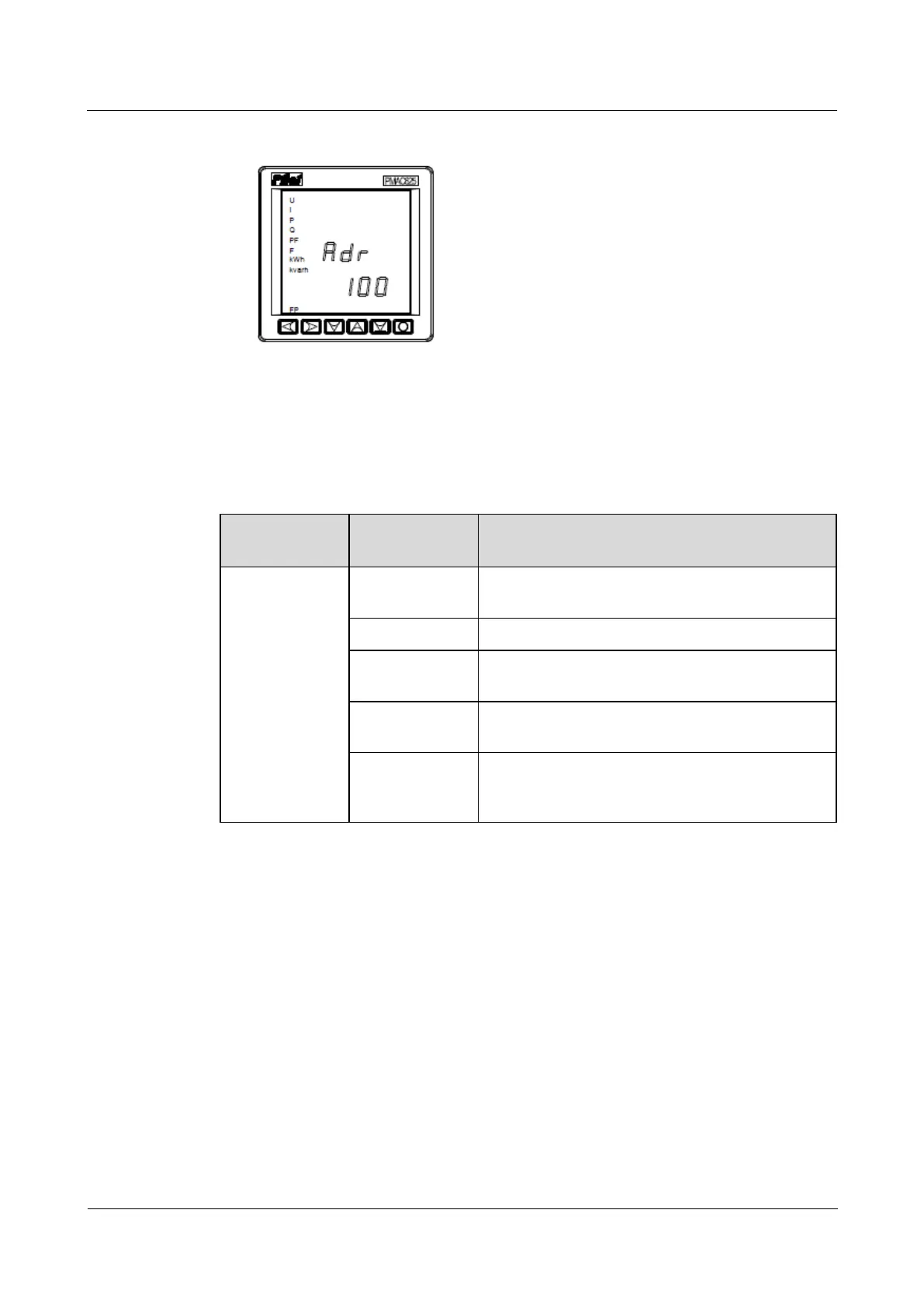

Figure 8-18 Communications address of the PMAC625
Step 2 Add a PMAC625.
1. Log in to the ECC800-Pro WebUI as an administrator.
2. Add a PMAC625.
Table 8-12 Adding a PMAC625
Path
Parameter
Name
Setting
Choose System
Settings >
Device
Management
and click Add
Device. The
parameters for
adding devices
are displayed.
Device attribute
Select Electricity Meter from the drop-down list
box.
Device Type
Select PMAC625 from the drop-down list box.
Connect To
Select ETH Converter n from the drop-down list
box.
Communications
Port
Select COM1/COM2 from the drop-down list box.
Device Address
In this example, Device Address is set to 100.
During actual configuration, set the device address
for the PMAC625 based on the actual situation.
3. Click Test Connect to check whether the PMAC625 connects to the ECC800-Pro
properly.
− If the PMAC625 connects to the ECC800-Pro properly, click Confirm. The
connected devices are displayed in the Number of connected devices list.
− If the PMAC625 does not connect to the ECC800-Pro properly, check whether the
cable between the PMAC625 and the ECC800-Pro is connected properly, whether
the PMAC625 and ECC800-Pro are running properly, and whether the input
parameters are consistent with the PMAC625 parameters.
4. Choose Monitoring > System > ETH Converter Group > ETH Converter n >
Running Parameters and set Device name to ETH Converter n_Device name.
----End
