Context

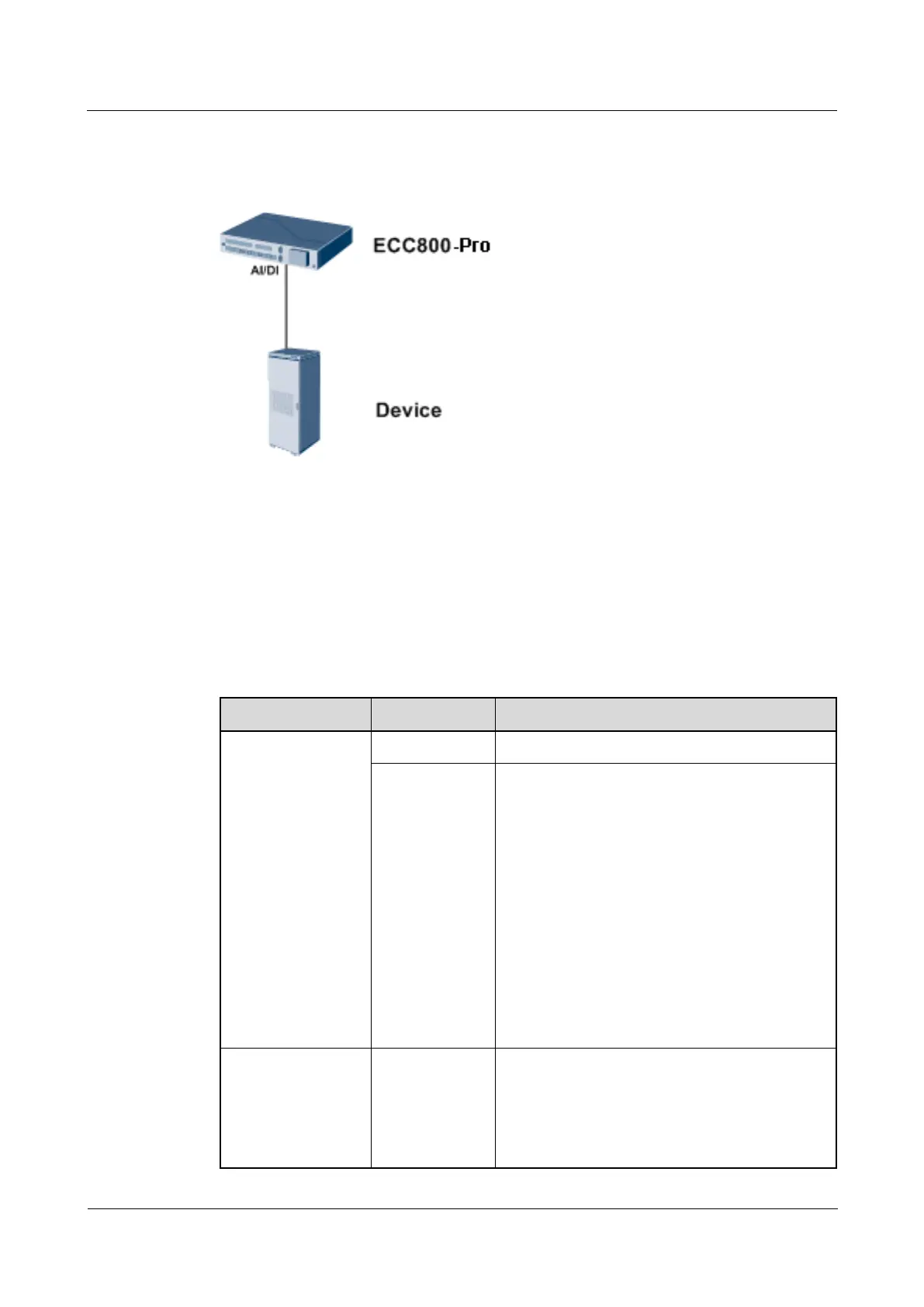

Figure 8-34 Network diagram
The AI/DI_1, AI/DI_2, and AI/DI_3 ports on the ECC800-Pro can be automatically identified
by devices, but the AI/DI_4 and AI/DI_5 ports cannot be automatically identified.
Procedure
Step 1 Log in to the ECC800-Pro WebUI as an administrator.
Step 2 Add the device.
Table 8-43 Parameter description for adding a device
Path
Parameter
Setting
Monitoring >
System >
ECC800 >
Running
Parameters >
AI/DI_3 Port
Settings
NOTE
The setting example
indicates that the
device connects to
the AI/DI_3 port on
the ECC800-Pro. If
the device connects
to another port, enter
the number of the
connected port.
AI/DI_3 sensor
Select Enable and click Submit
AI/DI_3 sensor
type
Select the type of the device to be accessed from
the drop-down list box.
NOTE
Devices except the normally open devices, normally
closed devices, door status switch, and water sensor
(electrode-type) can be automatically identified after
they are connected.
Monitoring >
System >
ECC800 >
Running
Parameters >
AI/DI_3 Port
II power
supply
enable(AIDI_3
/COM2/AIDI_
5)
The default value is Enable.
