Huawei iMaster NetEco V600R021C10 User Manual

– Record the User Name, MD5/SHA password, and DES/AES password for
using when creating a UPS on the NetEco.

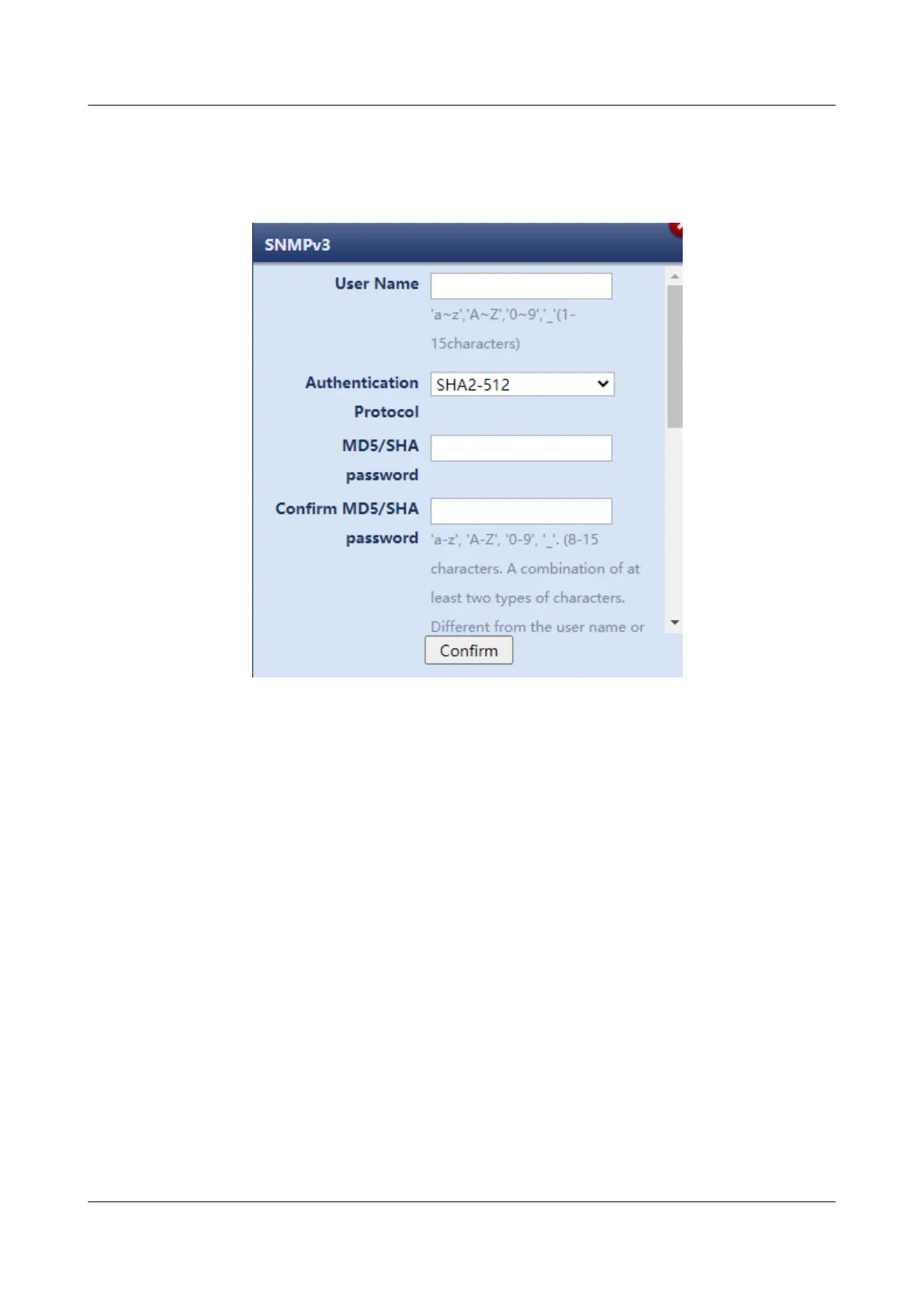

Figure 6-47 Setting SNMPv3 parameters
5. In the SNMP Trap area, click Add.
6. In the displayed SNMP Trap dialog box, set SNMP trap parameters, and click
Conrm.
– Enter the IP address of the NetEco server in the Trap Target Address text
box.
– Set Trap Port to 162.
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 6 Adding Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 201
