Context
● The location-type water sensor is installed on a 35 mm DIN guide rail and can
be installed on the wall around the detected area.
● Install water detection cables surrounding the water leakage area.
● To avoid damaging the water sensor, do not unpack it until right before
installation.
Procedure
Step 1 Fix a proper length of DIN guide rail to the wall around the detected area.
Step 2 Unpack the location-type water sensor, buckle the module to the DIN guide rail,
and ensure that the latch faces upwards during installation.
● The water leakage locator should be installed within 1200 meters of the control host.
● The installation height must not exceed 1.5 m. Ensure that the water detection rope is
no higher than the ground.
● Hand-write the address in the address blank area.

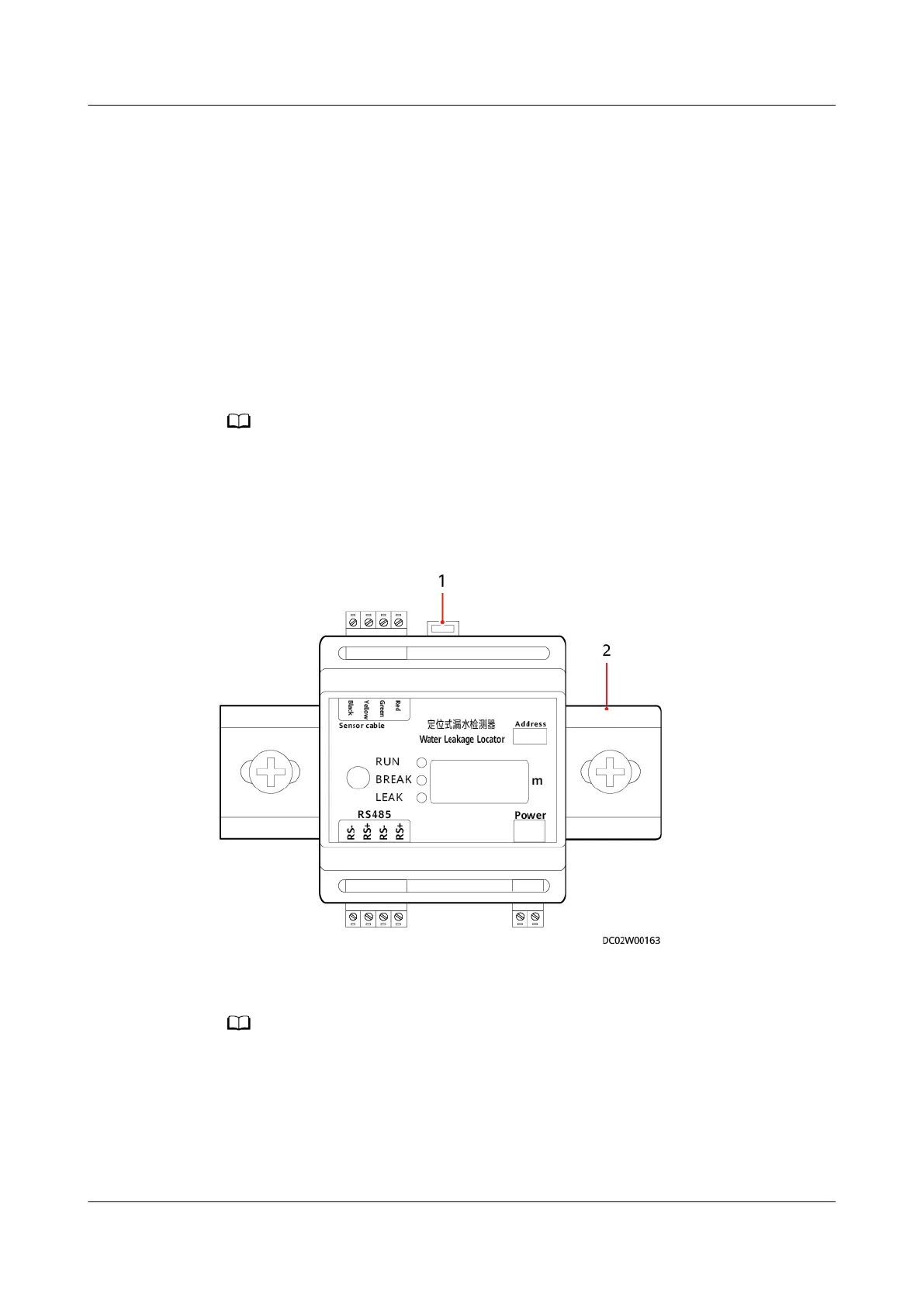

Figure 3-34 Installation diagram
(1) Latch
(2) DIN guide track
● Touch grounded devices or pipes to eliminate ESD before taking the location-type water
sensor module.
● Place it gently. Protect it against mechanical impact and collision. Keep it dry.
● Prevent it against metal
lings, grease, pipe paint, and other contaminants.
Step 3 The location-type water sensor consists of a water leakage locator, tieline, and
water leakage location cable, the connection diagram is as follows.
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 3 Installing Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 40
