3. Remove screws from the base, and remove the base, as shown by (4) in
Figure 3-79.
Step 2 Mark the mounting holes using a marker and the base.

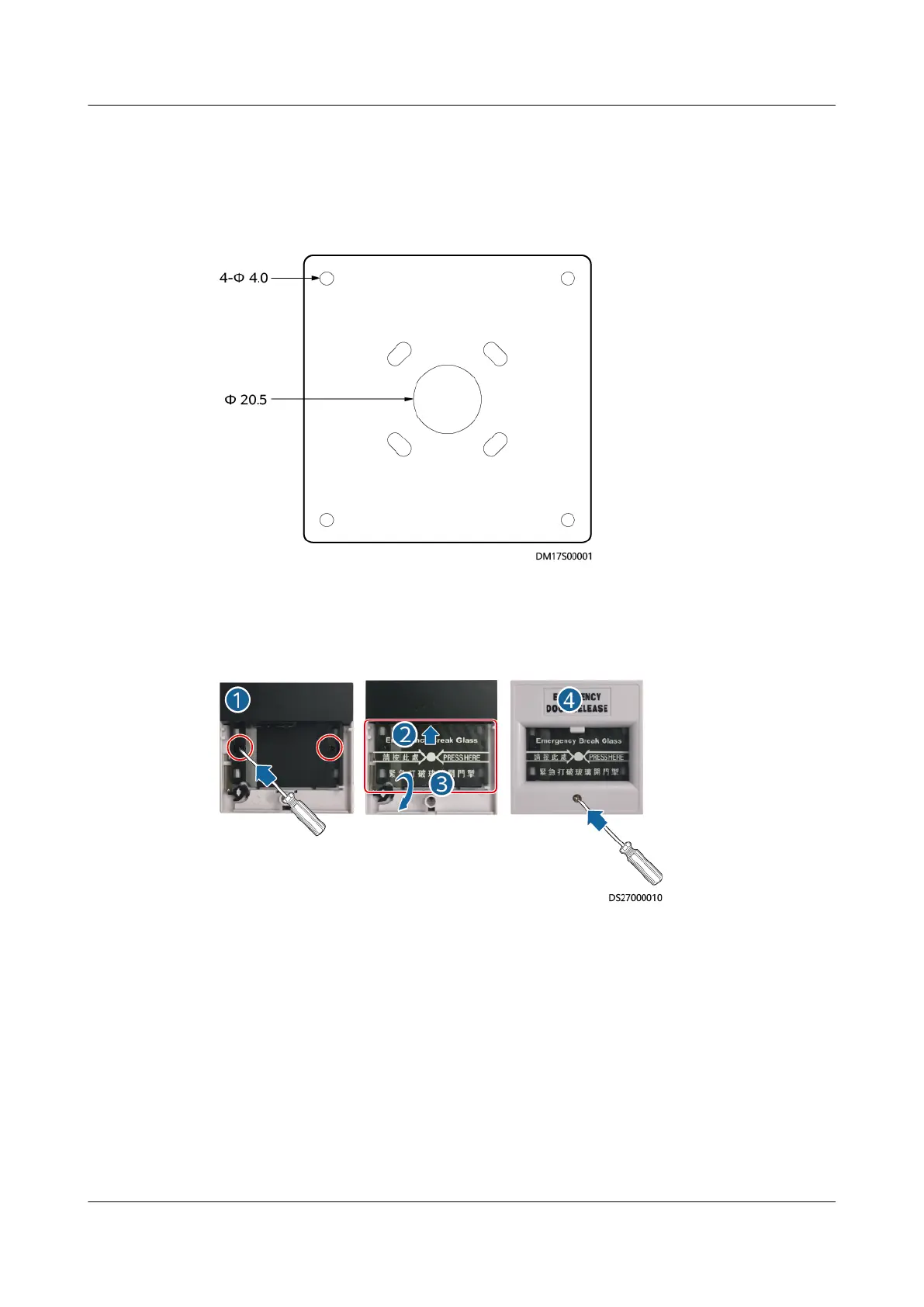

Figure 3-80 Marking mounting holes (unit: mm)
Step 3 Drill holes using a hammer drill, and route cables out of the cable hole.
Step 4 Install the emergency door release button.
Figure 3-81 Installing an emergency door release button
1. Install the base of the emergency door release button, as shown by (1) in
Figure 3-81.
2. Install the glass panel of the emergency door release button, as shown by (2)
and (3) in Figure 3-81.
3. Tighten screws of the emergency door release button using a Phillips
screwdriver, as shown by (4) in Figure 3-81.
----End
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 3 Installing Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 66
