connects to the NetEco over Modbus TCP, connect cables by referring to this
section.
Procedure
Step 1 Connect one end of the network cable to the monitoring port on the smart
cooling product.
● For NetCol5000-C(065, 080), open the rear door, and connect one end of the
network cable to the FE port on the main control board of the smart cooling
product.

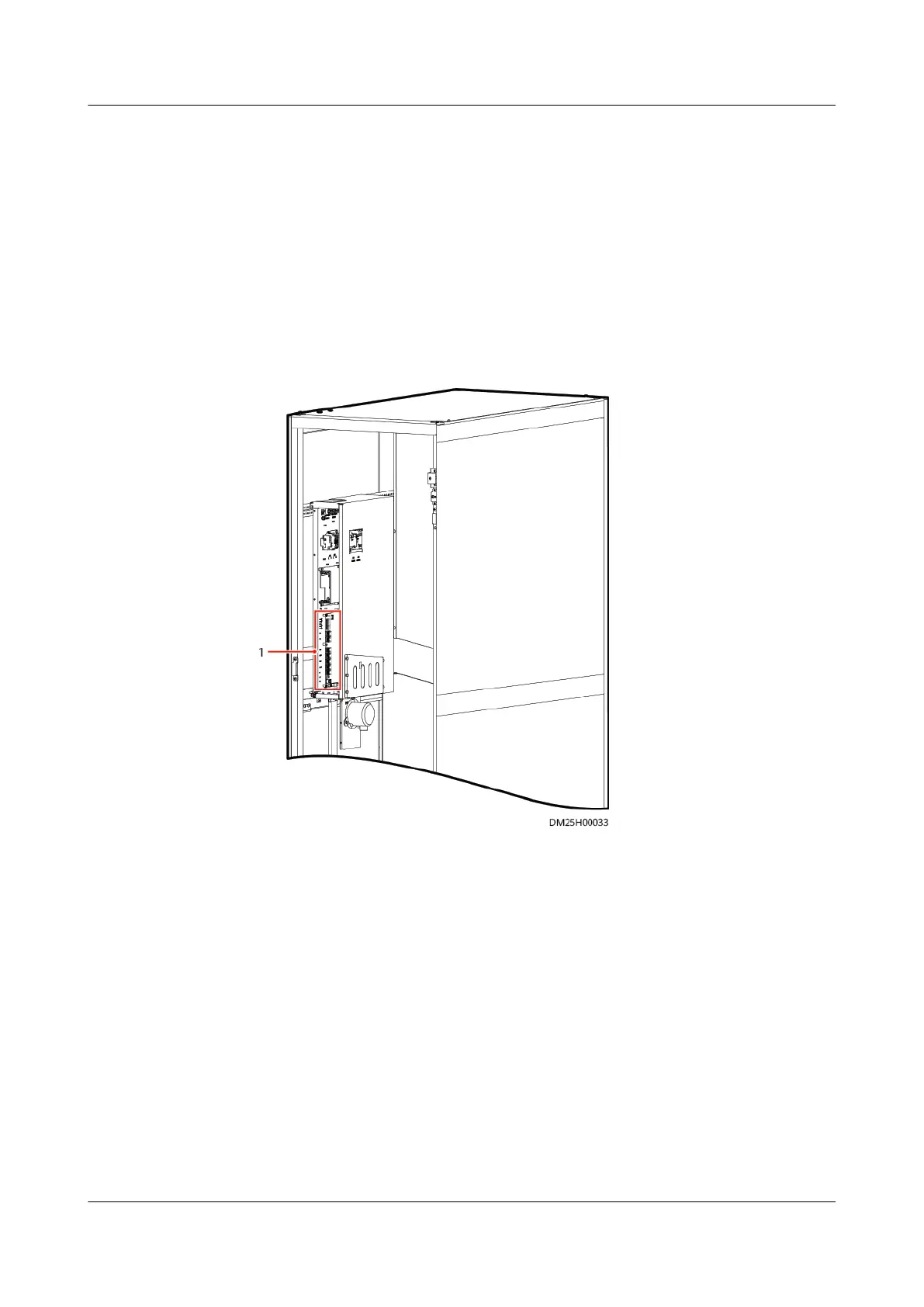

Figure 4-7 NetCol5000-C(065, 080) main control board
(1) Main control board
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 4 Connecting Monitoring Cables to Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 82
