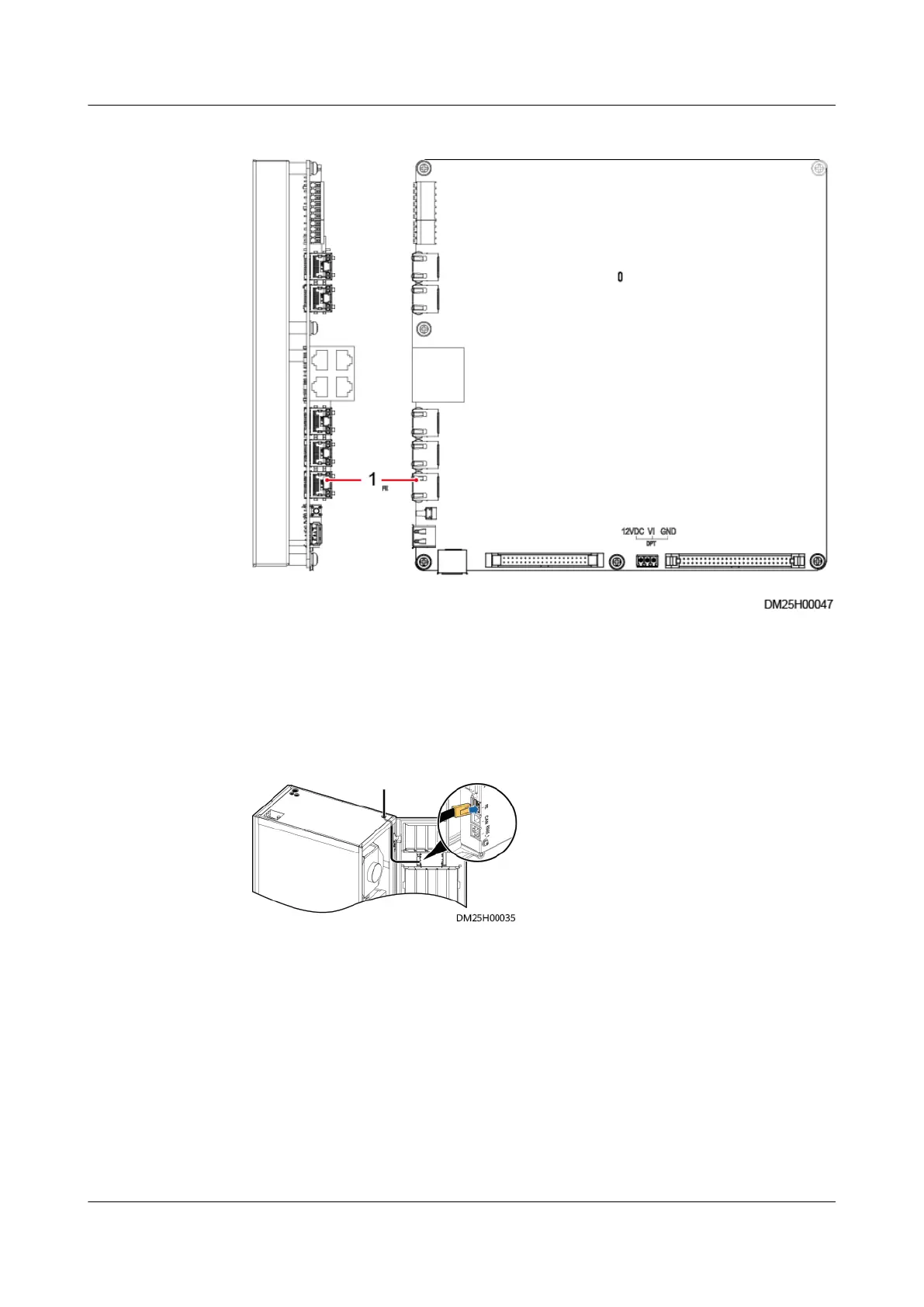

Figure 4-8 Main control board
(1) FE port
● For NetCol5000-A020, open the front door, and connect one end of the
network cable to the FE port on the side of the smart cooling product LCD.
Figure 4-9 FE ports on the NetCol5000-A020
● For NetCol5000-A050, NetCol5000-A042, NetCol5000-A035, NetCol8000-
C070, NetCol8000-C150, NetCol8000-A060/A120, and FusionCol8000-E220/
E240/E400/C080/C210, open the rear door, and connect one end of the
network cable to the COM/FE port on the main control module of the smart
cooling product.
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 4 Connecting Monitoring Cables to Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 83
