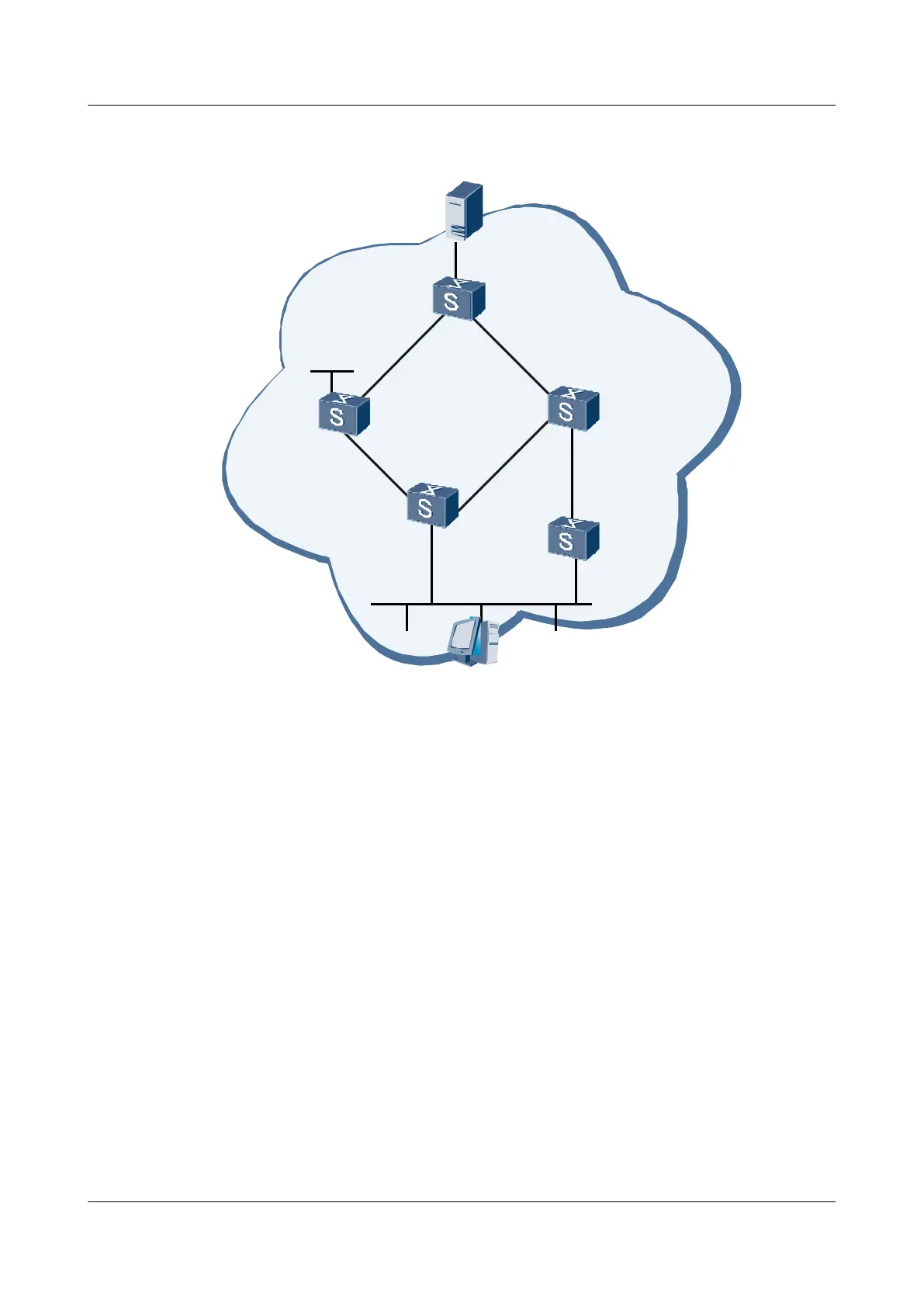

Figure 6-23 Networking diagram for checking the multicast path from the multicast source to
the local Switch
GE1/0/0
VLANIF160
11.1.3.2/24
11.1.0.2/24
Source
GE1/0/0
VLANIF140
11.1.0.1/24
GE2/0/0
VLANIF150
11.1.1.1/24
GE1/0/0
VLANIF110
11.1.5.1/24
GE2/0/0
VLANIF150
11.1.1.2/24
GE1/0/0
VLANIF110
11.1.5.2/24
GE3/0/0
VLANIF130
11.1.2.1/24
GE3/0/0
VLANIF130
11.1.2.2/24
GE1/0/0
VLANIF160
11.1.3.1/24
GE3/0/0
VLANIF170
11.1.6.3/24
11.1.6.4/24
Receiver
GE2/0/0
VLANIF120
11.1.4.2/24
Loopback0
1.1.1.1/32
SwitchE
SwitchC
SwitchD
SwitchB
SwitchA
GE3/0/0
VLANIF170
11.1.6.2/24
GE2/0/0
VLANIF120
11.1.4.1/24
Configuration Roadmap
The configuration roadmap is as follows:
1. Configure Switch C as the NQA client and create an MTrace test on it.
2. Perform the test and view the test result.
Data Preparation
To complete the configuration, you need the following data:
l Test instance name: admin mtrace
l IP address of the multicast source: 11.1.0.2
l IP address of the multicast group: 225.1.1.1
l IP address of the destination host: 11.1.6.4
Procedure
Step 1 Configure an NQA MTrace test on Switch C.
<SwitchC> system-view
[SwitchC] nqa test-instance admin mtrace
