11.3 Configuring a Mold Picture View
Configure a Mold Picture View to add zone information panels and leader lines to the
uploaded mold picture view graphic.
To configure the Mold Picture View, make sure Altanium is in Edit mode. To hide/show the
Edit toolbar, touch the screen.

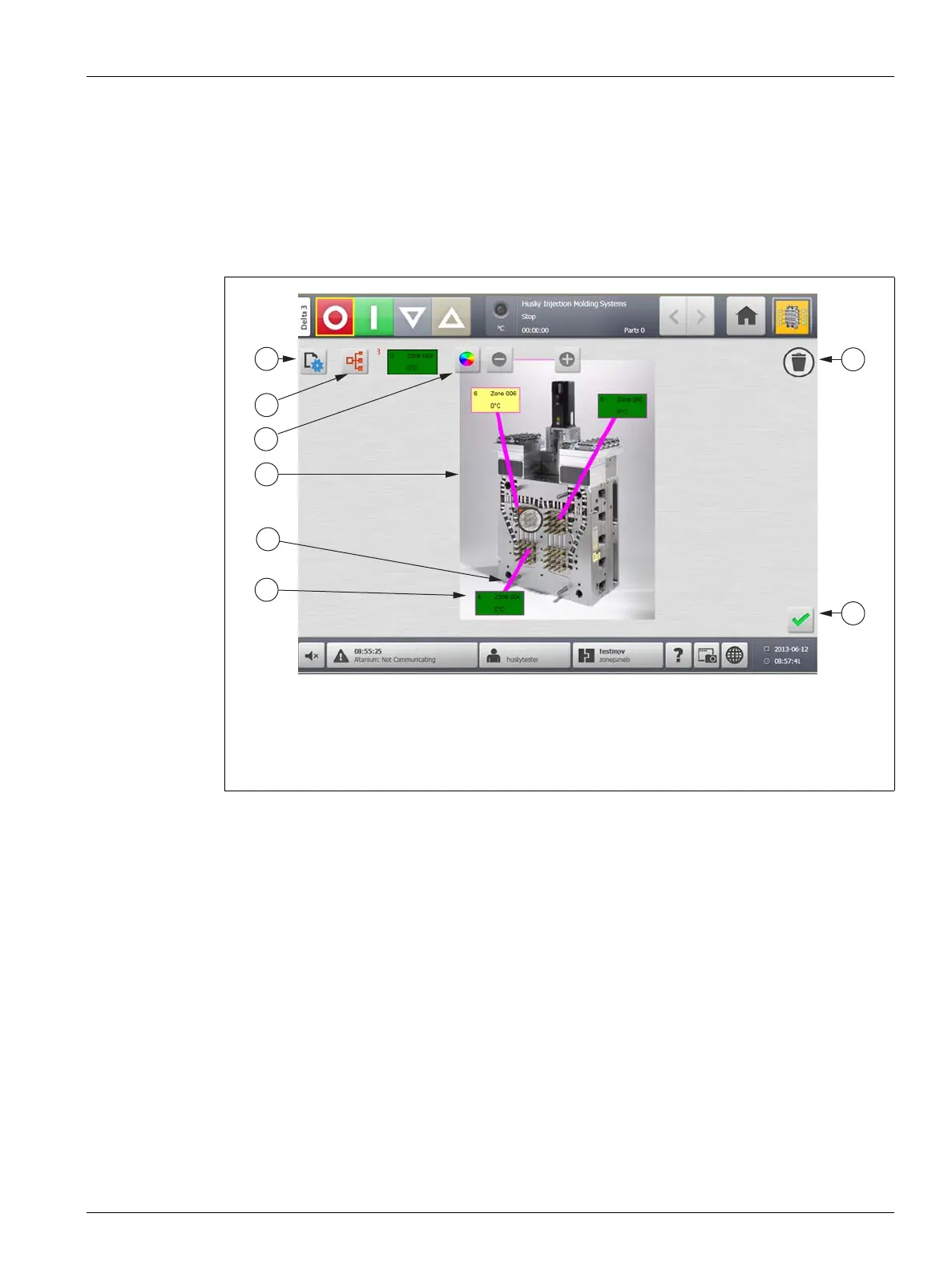

Figure 11-5 Mold Picture View Screen in Edit Mode
1. Change View Settings Button 2. Choose Heat Zone Button 3. Leader Line Color Button
4. Mold Picture View Graphic 5. Leader Line 6. Zone Information Panel 7. Delete Button
8. Accept Button
