166 Input/Output Connector Pin-Out Description
13.3 Input/Output Connector Pin-Out Description
Below is the connection detail for all of the optional Inputs and Outputs. Inputs are active
High (24 VDC). All outputs are relay dry contact type.

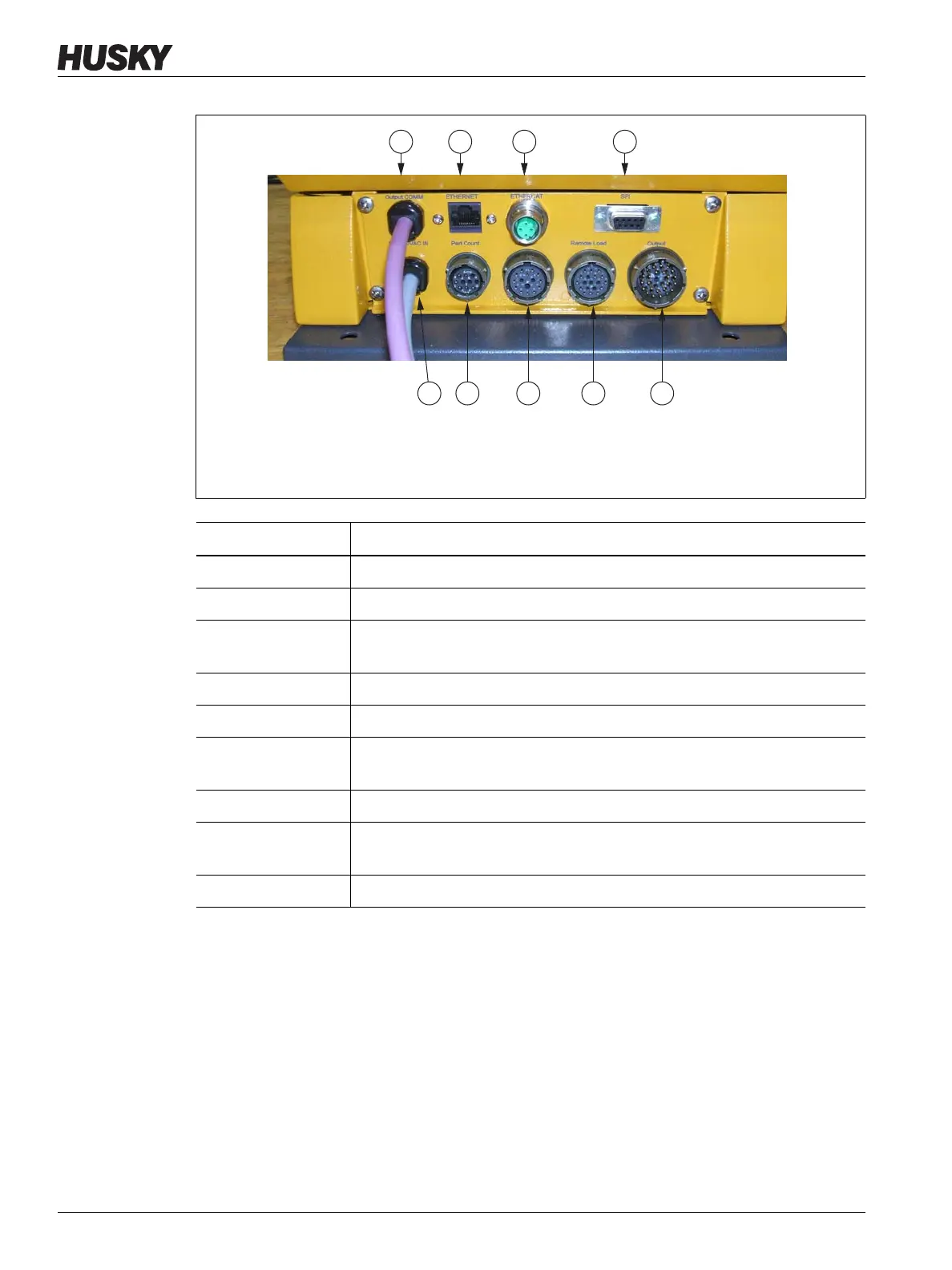

Figure 13-2 Delta3 Connector Gland Plate, Typical
1. Output COMM 2. Ethernet 3. EtherCAT 4. SPI 5. 100-240VAC In 6. Part Count
7. Input 8. Remote Load 9. Output
Cable Connection Description
Output COMM CANBus communication to Altanium mainframe.
Ethernet User interface to customer networks.
EtherCAT, if
equipped
Communication to UltraSyncE Gen2 system.
SPI, if equipped SPI communication protocol.
100-240VAC In Main AC power from the Altanium mainframe.
Part Count, if
equipped
Part count option signals.
Input Configurable digital inputs.
Remote Load, if
equipped
Remote mold setup option signals.
Output Configurable digital outputs.
