The X-Series card cage contains everything needed to run up to 12 heaters in the mold. The
H-Series card cage runs up to 24 heaters in the mold. This consists of a green Passive
Backplane and one to six Intelligent Control Cards which are plugged into the Passive
Backplane. The number of passive backplanes and Intelligent Control Cards the system
contains is based on the number of zones ordered with the system. All ICC
2
are the same and
can be interchanged with other ICC
2
. This is the same for ICC
3
. The Passive Backplanes
contain CAN communications address switches and can be interchanged with other Passive
Backplanes if the switches are set properly.

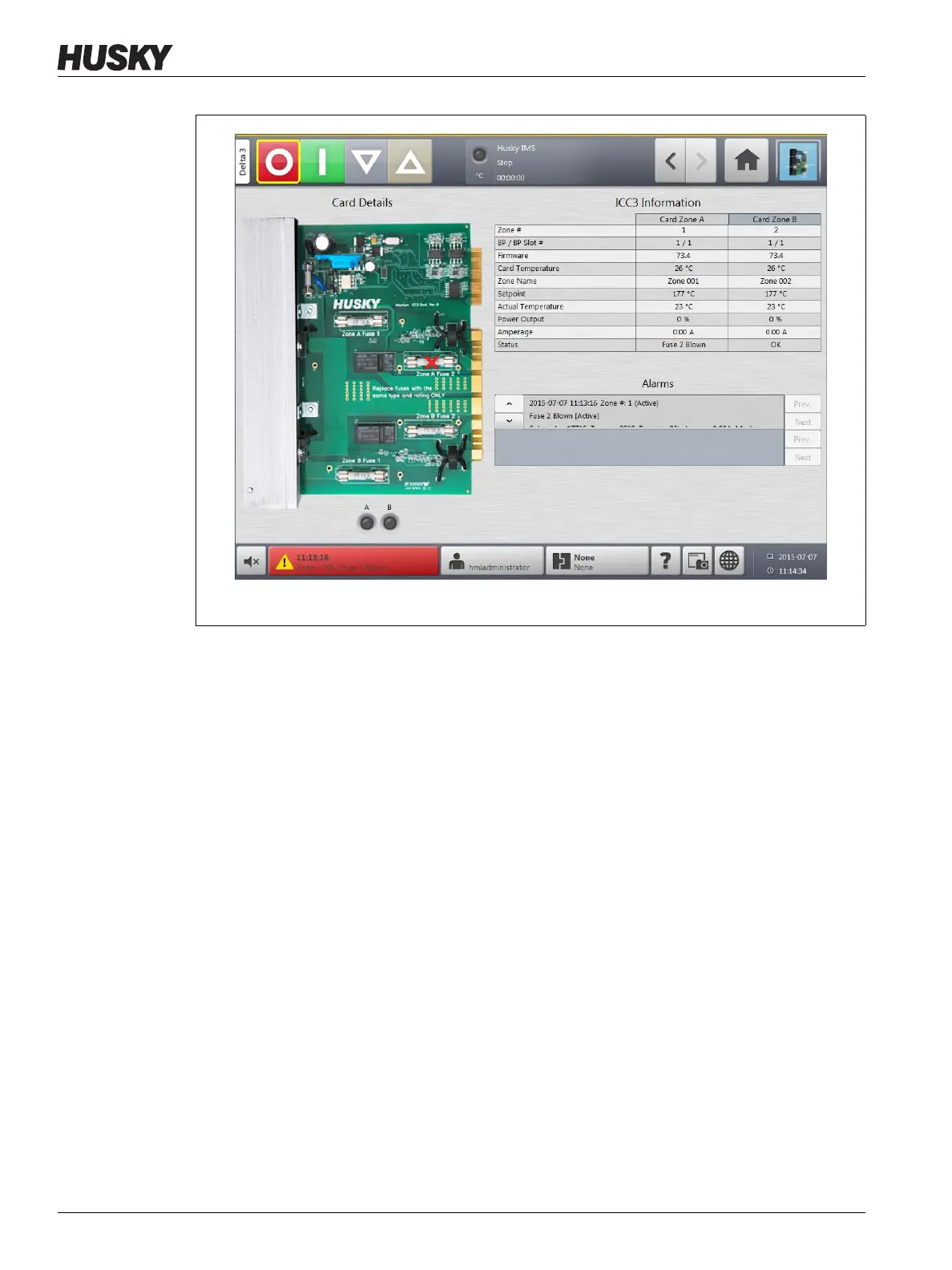

Figure 15-5 Card Layout Information
