v 2.3 — September 2015 Altanium Delta3
182 Replacing an Intelligent Control Card (ICC2 or ICC3)
15.3.2 Replacing an Intelligent Control Card (ICC
2
or ICC
3
)
To replace an ICC
2
or ICC
3
, do the following:
1. Locate the Card Cage that contains the faulty ICC
2
or ICC
3
. Use the on-screen Card
Layout feature to assist in locating the card.
2. Loosen the upper and lower slotted screws on the heat sink from the female threads in
the cabinet.
3. Slide a screwdriver between the silver post and the ledge on the cabinet and gently pry
the board out. (Figure 15-8)

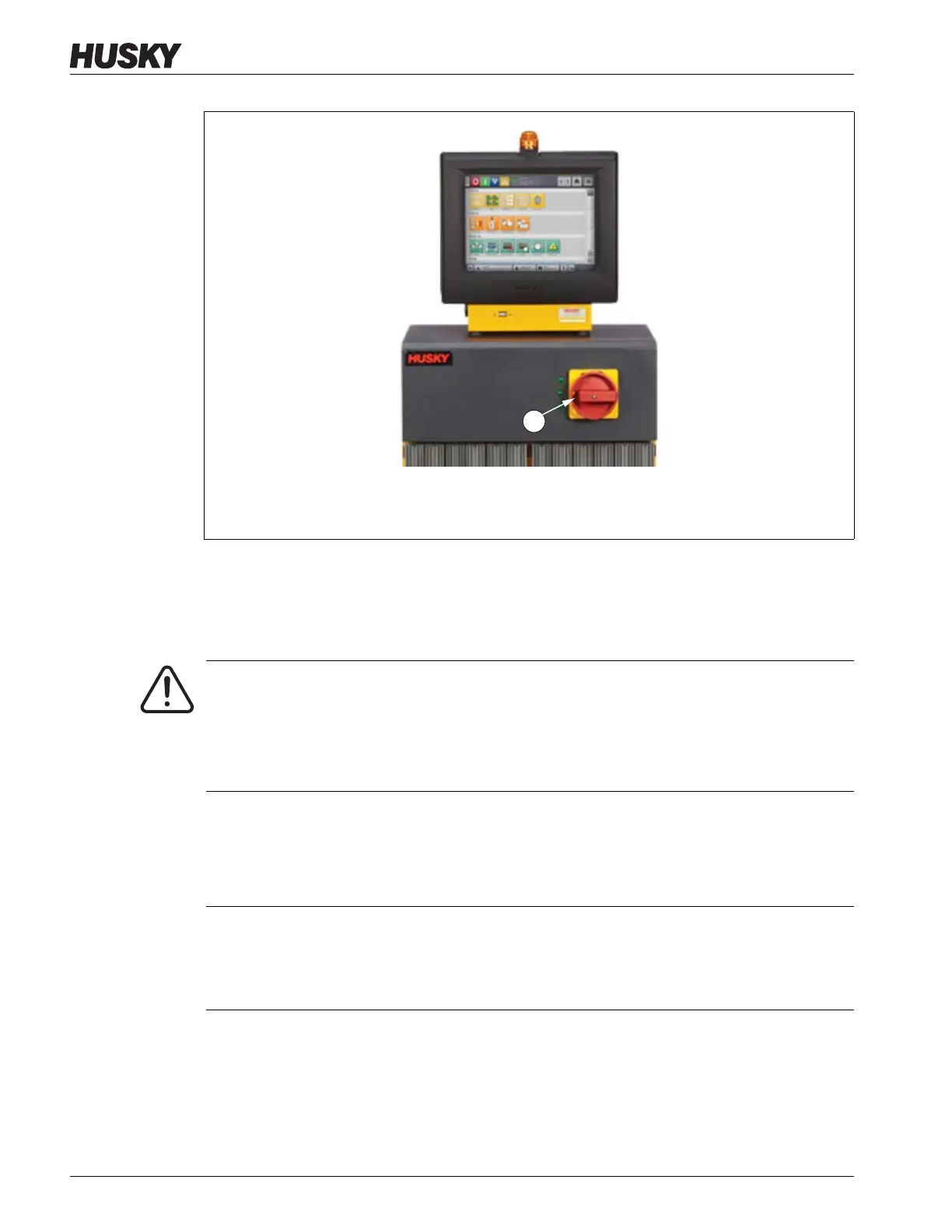

Figure 15-7 Altanium Main Power Switch
1. Main Power Switch
WARNING!
Electrical and mechanical hazard- risk of death, serious injury and/or damage to the
equipment. Turn off all power to the system and disconnect it completely from the
main input power.
Use a ground strap when handling any of the Altanium components.
CAUTION!
Mechanical failure mode - attempting to remove a card when the upper and lower
heatsink mounting screws are not fully disengaged from the female threads on the
cabinet can result in catastrophic damage to the card.
