38 Viewing the Supply Voltage
NOTE:The amperage value displayed shows one decimal place for systems with ICC
2
cards
installed and two decimal places for systems with ICC
3
cards installed. Both voltage
and amperage values display “---” if the voltage and amperage is not calibrated for all
the zones associated with a particular phase. The amperage value also displays “---” if
all of the zones associated with a particular phase are XL or HL cards.

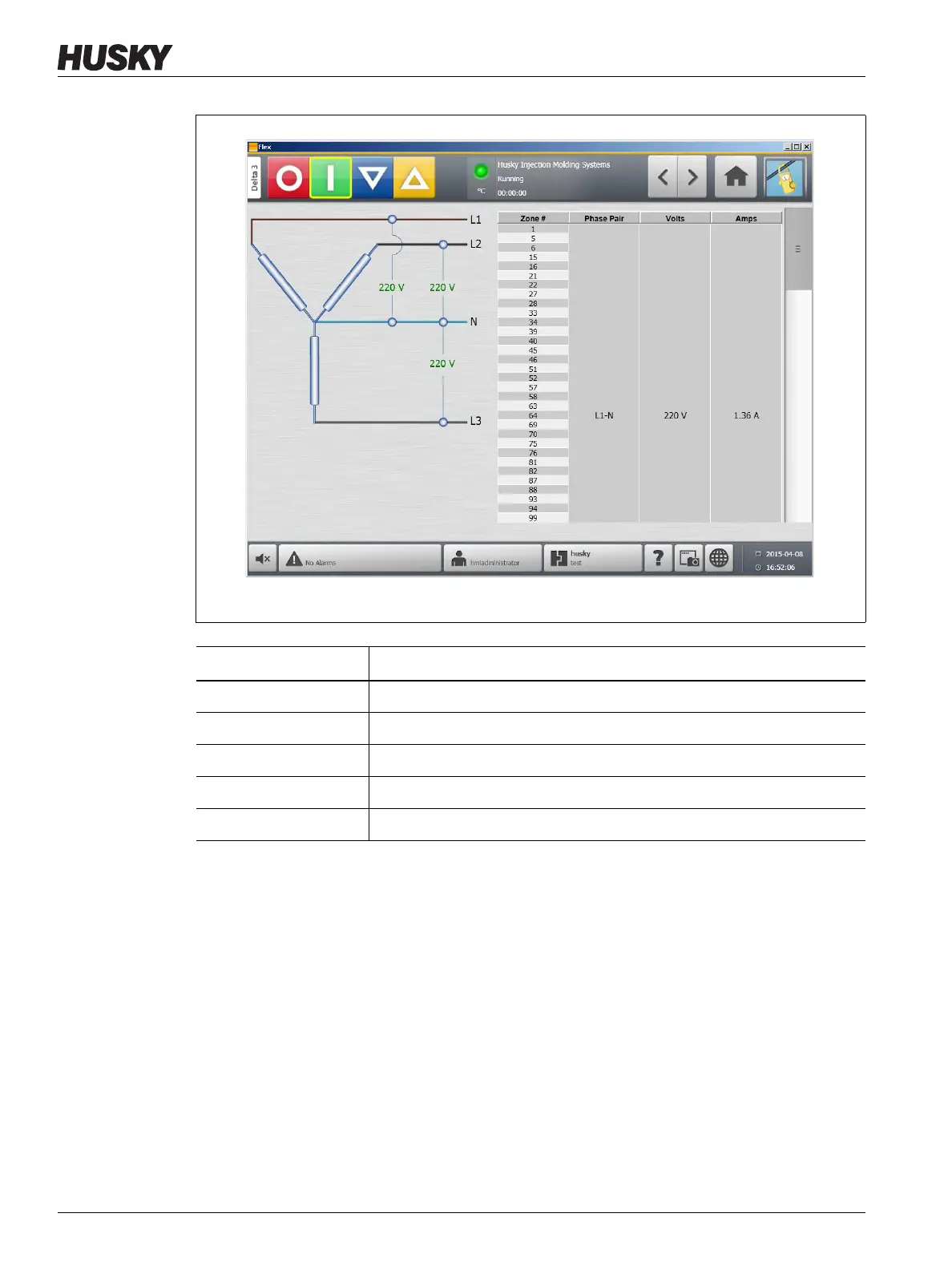

Figure 4-9 Wye 3PH+N Supply Voltage Screen
Item Description
Schematic The image is a visual representation of the supply configuration
Zone # Zone number of all the zones associated with a phase pair
Phase Pair Phase pair label associated with the supply configuration graphic
Volts The average voltage value for all the zones associated with a phase
Amps The average amperage value for all the zones associated with a phase
