TALENT MONITOR

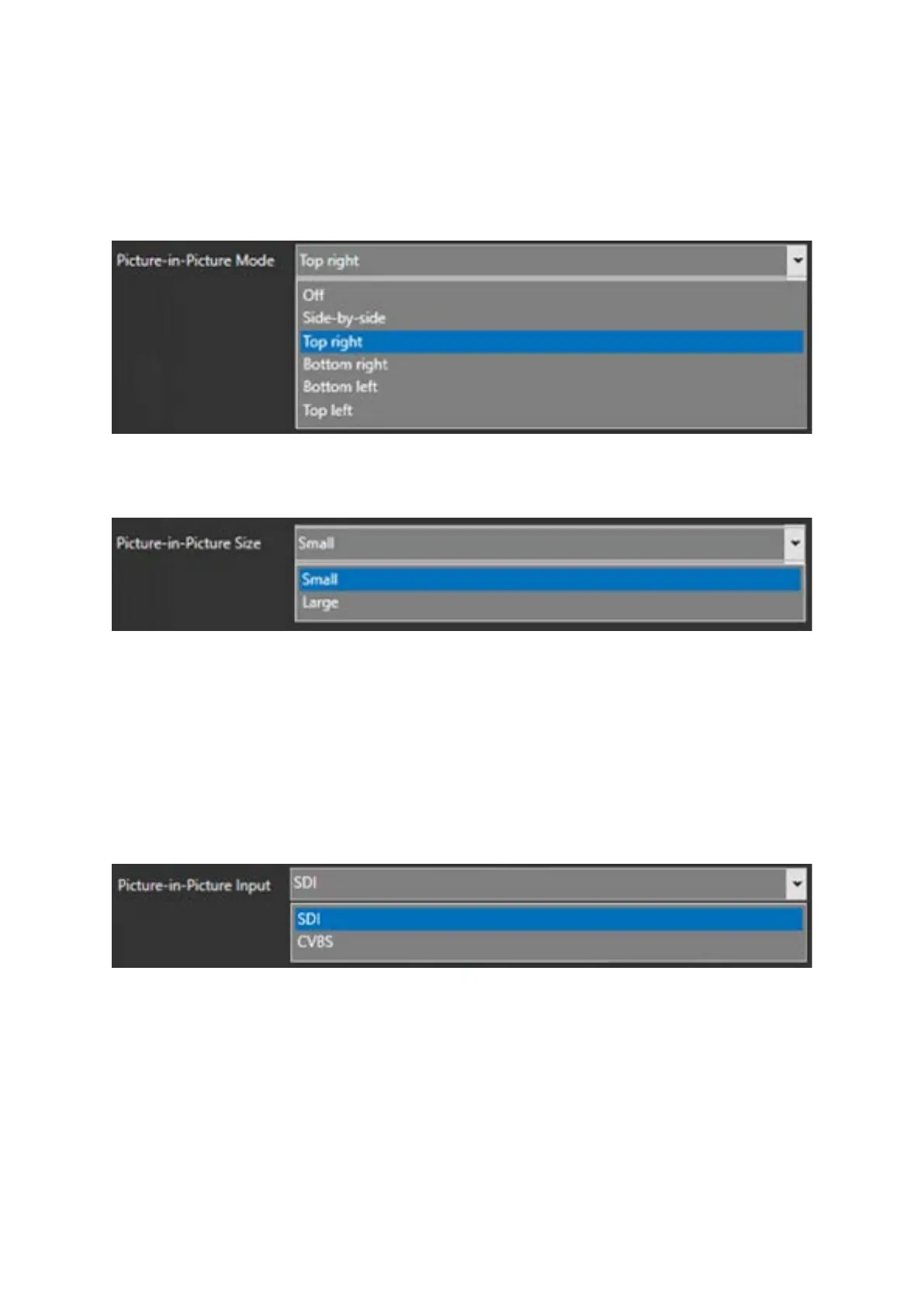

Picture-in-Picture Mode: determines where the PiP image will be positioned in the talent monitor
For no PiP select Off. To set the position click in the pull down and then the preferred option
Picture-in-Picture Size: determines the size of the PiP image. Select Small or Large
Please Note: When Side-by-Side is selected as Picture-in-Picture Mode, Picture-in-Picture Size is
disabled.
Picture-in-Picture Input: determines the source of the PiP image. For the Talent Monitor this can be
either SDI or CVBS
