IP autoscript WinPlus-IP - Hardware Configuration

Page | 226
Hardware Configuration

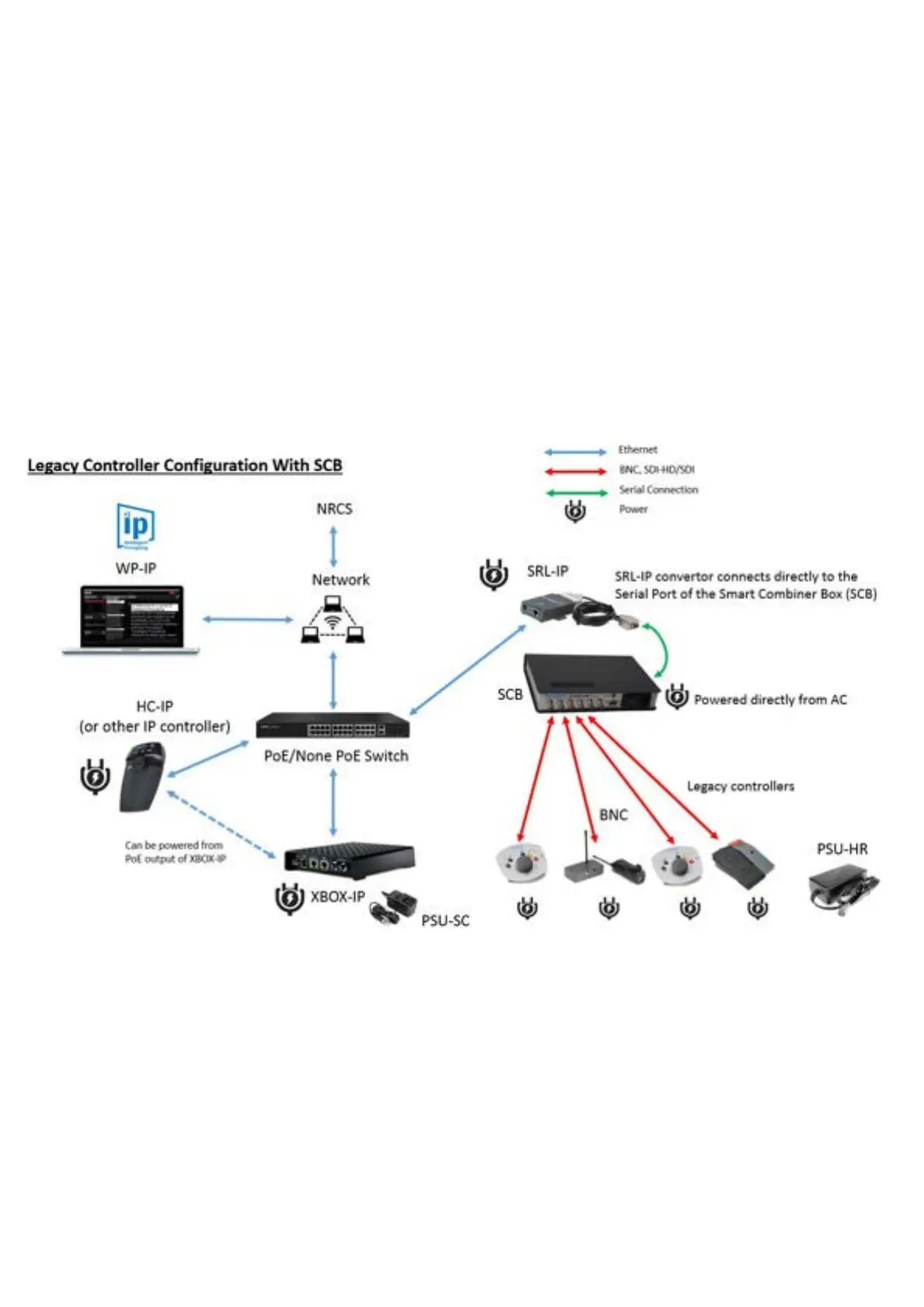

When used with a Smart Combiner Box (SCB):
The SCB itself will be connected to the network via the SRL-IP serial cable (A9009-5002).
External power is required for the SCB. All legacy devices will require power supply PSU-HR.
The SRL-IP convertor always requires its own PSU (included). It cannot be powered by PoE.
