Page | 227

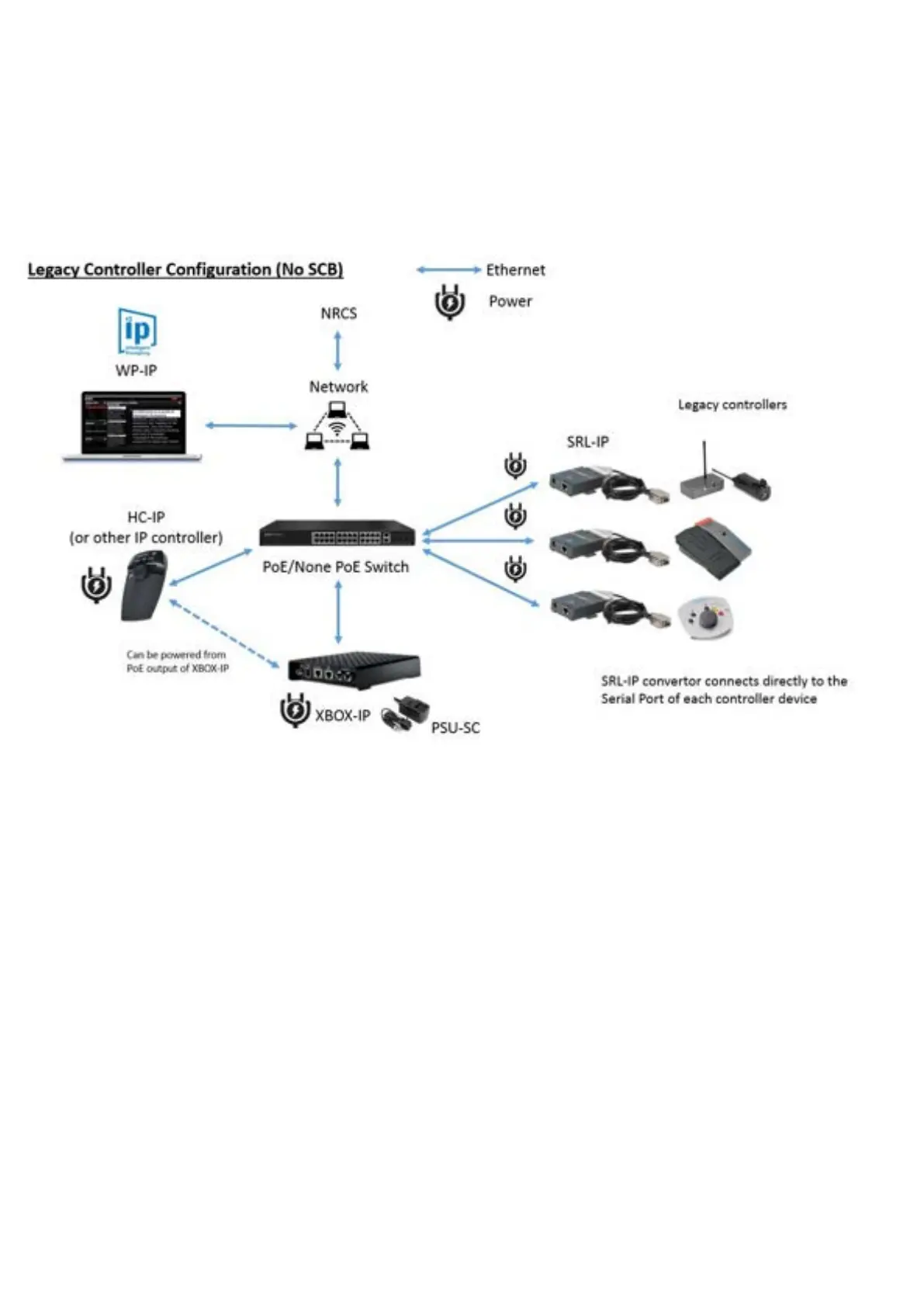

When used without a Smart Combiner Box (SCB):
All legacy devices will require SRL-IP
The SRL-IP convertor always requires its own PSU (included). It cannot be powered by PoE.
Software Configuration
To enable the installation of the SRL-IP, power the Lantronix UDS1100 and connect it to the network.
The Lantronix Device Installer can be downloaded from here:
http://ts.Lantronix.com/ftp/DeviceInstaller/Lantronix/4.4/4.4.0.5/Installers/SingleInstallFiles/DeviceI
nstaller-4405-SA.zip
Follow the defaults to install
If you require any assistance with the installation, please contact Videndum Production Solutions
support.
