11 Parameterization
62
Transmission behavior
The transmission behavior (controller structure) is determined by the configuration of the pa-
rameters for the proportion band (P component), derivative time (D component), and reset time
(I component).
Two-state controller
This controller has a switched output and can be parameterized with P, PI, PD, or PID trans-
mission behavior. The proportional band Xp must be greater than 0 for the controller structure
to take effect.

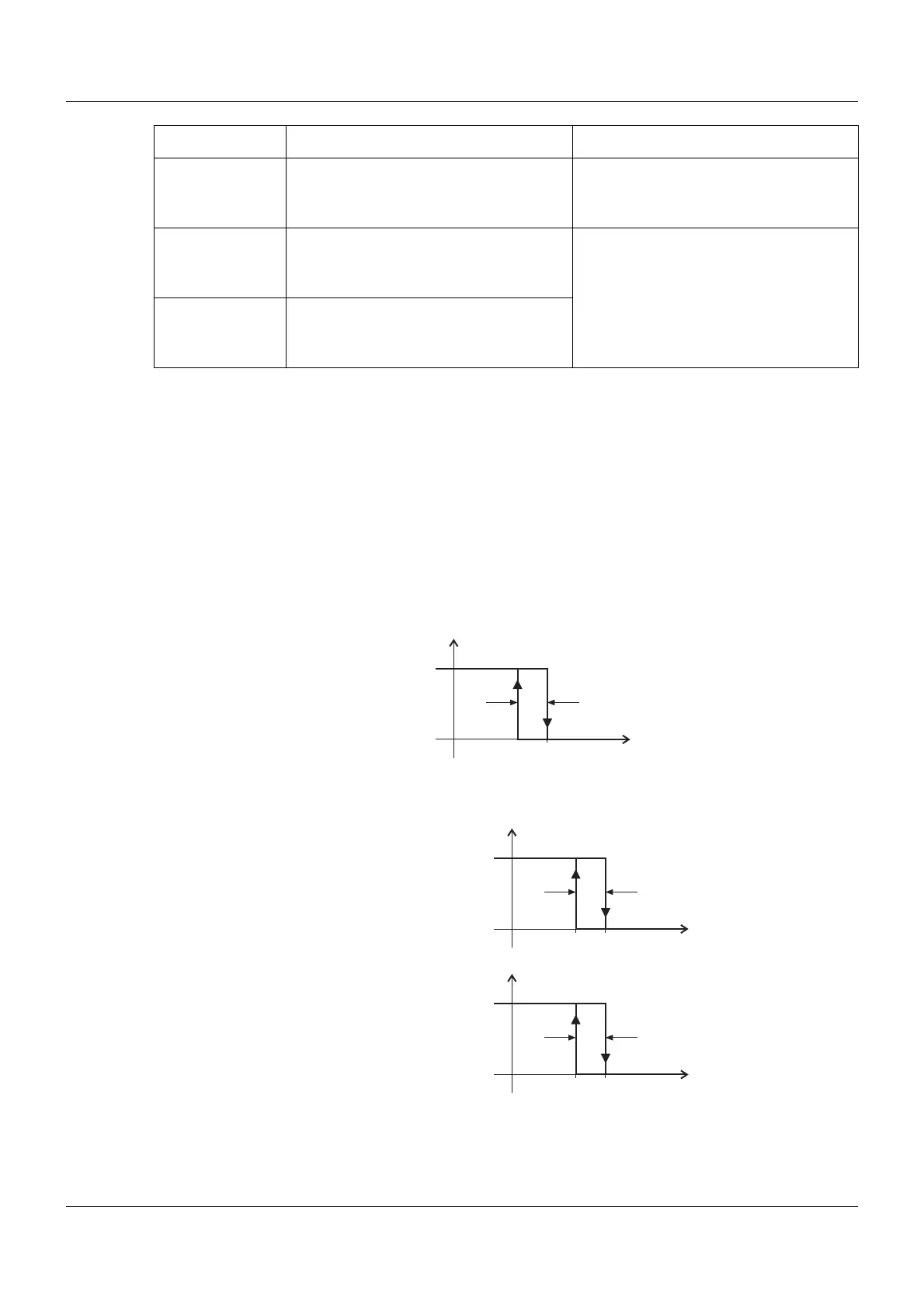

If Xp = 0, the behavior corresponds to the function of limit value monitoring with switching dif-
ferential Xd1 (working point Y0 = 0 %):
Influence of working point Y0 on the switching behavior
Min. output level
limit
(Y2)
-100 to +100 % Admissible minimum output level (only
effective if Xp > 0)
Minimum relay
ON period 1
(Tk1)
0 to 60 s Limits the switching frequencies for
switched outputs
Minimum relay
ON period 2
(Tk2)
0 to 60 s
Parameter Setting Description
Xd1
0 %
100 %
y
w
x
Xd1
0 %
100 %
y
w
x
w-Xd1
Y0 = 0 %
Xd1
0 %
100 %
y
w
x
w+Xd1
Y0 = 100 %
