Krone Comprima F 155 XC User Manual

Operation
162
Pos: 48.99.8 /Üb erschriften/Üb erschriften 3/K- O/N/Netz- od er Folienrolle ei nlegen @ 507\m od_150030071 0066_78.docx @ 3485179 @ 3 @ 1
11.19.2 Inserting a net or film roll
Pos: 48.99.9 /B A/Sicherheit/8. V oraussetzungen /Handlungsan weisung für all e Maschinen/Vora ussetzung: Die Maschine ist stil lgesetzt u nd gesichert, .... @ 259\mod _139867443417 0_78.docx @ 19 79947 @ @ 1
Prerequisite:
– Shut down and safeguard the machine, see chapter Safety, "Shutting down and
safeguarding the machine".
Pos: 48.99.10 /Ü berschriften/Z wischenüberschrift en/U-Z/Vor dem Einlegen ei ner Folienroll e @ 513\mod_1 503646917239 _78.docx @ 3532578 @ @ 1
Before inserting a film roll
Pos: 48.99.11 / Beipacks/Rund ballenpressen/F olienbindung/M odulgruppen Foli e einlegen / L ED Lichtleiste/B eschreibung 1 : Folie einlegen_ Beschädigung en an Folie e ntfernen_Beipac kab2016 @ 51 3\mod_15030 56052740_78.d ocx @ 3509 559 @ @ 1
• Before inserting the film, check the film roll for damage.
If the film roll is damaged:
• Unwind the damaged film section and cut it off.
• Cut off the bulges at the side of the film roll.
Pos: 48.99.12 / Beipacks/Rundball enpressen/Folie nbindung/M odulgruppen Foli e einlegen / L ED Lichtleiste/Netzr olle einlege n_Netz- od er Folienrolle ei nlegen_Bild_Netz bindung oder Foli enbindung @ 507\mod_ 15003598786 44_78.docx @ 348 5579 @ @ 1

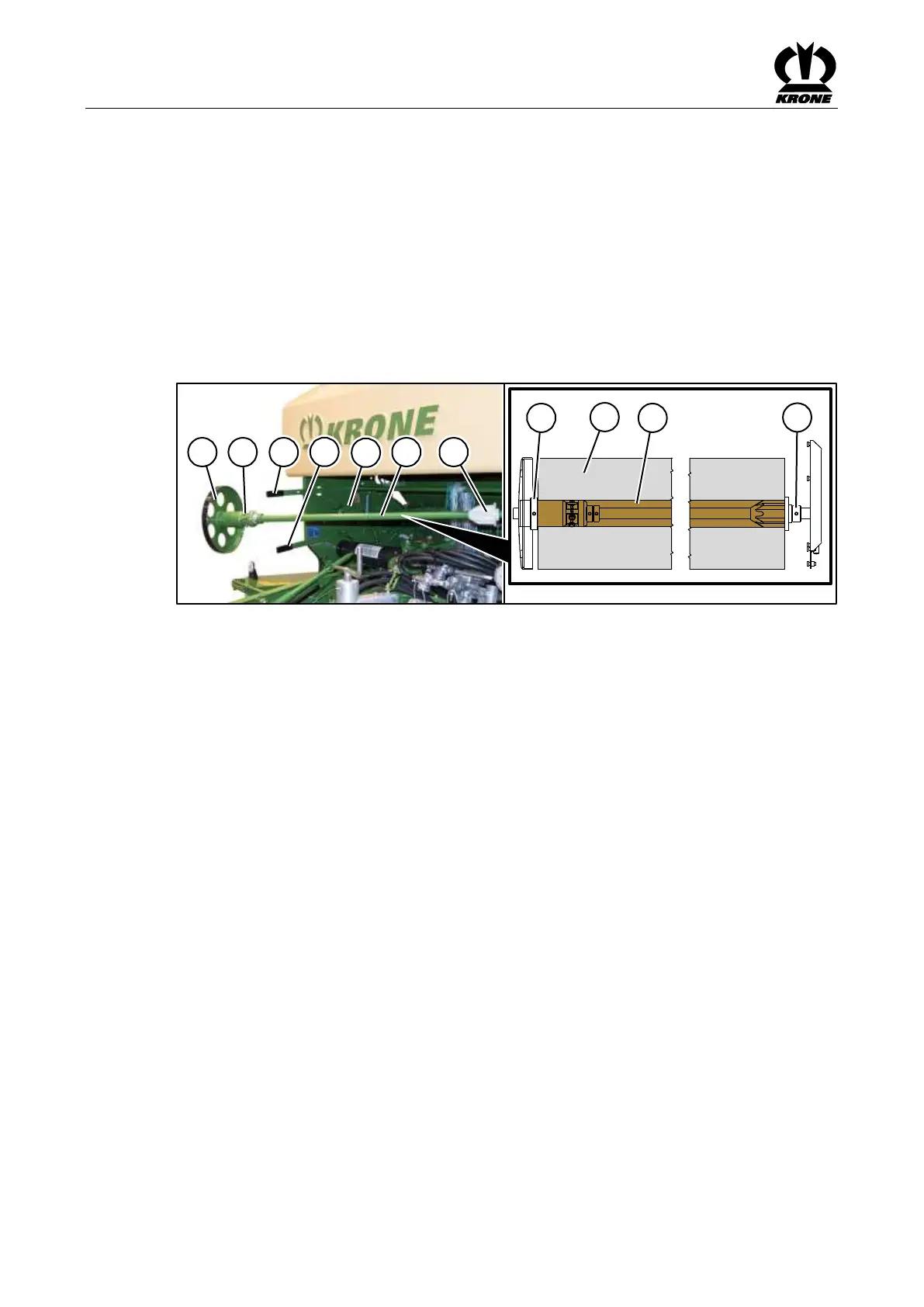

ZBBP1802_3
8
9
10
11
1 6
4
73
5
2
Fig.
133
Pos: 48.99.13 / BA/Bedienung /R undballenpresse/N etz- un d Folienbindung_A usführung N etz- und Folien bindung ab 17 18 /Netz-/Folie nrolle einlegen_T ext @ 513\mo d_150338688 4445_78.docx @ 3 528870 @ @ 1
• Raise the lever (4).
• Swing the roll holder (6) and brake disc (1) forward.
• Detach the brake disc (1).
• Take a new net or film roll from the package. Make sure that the beginning of the roll faces
towards the machine and can be pulled out from above.
• Place the net or film roll (9) on the roll holder (6) and push the holder (7) on.
• Slide the brake disc (1) and cardboard tube clamp (2) anticlockwise into the cardboard
tube (10) of the film or net roll (9) as far as it will go.
The net or film roll (9) is permanently locked in the roll holder (6).
• Swing the roll holder (6) back into the machine and raise it into the lock by means of the
lever (4).
• Actuate the wrapping material brake lever (3) so that the roll holder (6) snaps home at the
wrapping material brake.
• When swinging the roll holder back, ensure that the clamping lever 5) is under the net or
film roll (9).
• Check that the net or film roll (9) is aligned centrally. To do so, measure the distance
dimensions to the left and right side walls.
Pos: 48.99.14 / Layout Module /---------------Seitenumbruch---------------- @ 0\mod_119617531 1226_0.doc x @ 4165 @ @ 1
