Maintenance - hydraulic system

265

Pos: 56.6 /Übersc hriften/Übersc hriften 2/A-E/A /Absperrhahn Hec kklappe @ 473\mod_147 2641397584_7 8.docx @ 3200 051 @ 2 @ 1

15.1 Shut-off valve for tailgate

Pos: 56.7 /BA/W artung/Rundball enpresse/Abs perrhahn Hydrauli k/Zur Fun ktionsweise d es Absperrhahns H eckklappe sieh e Kapitel xxx @ 497\mod_14 90104982111 _78.docx @ 3411 520 @ @ 1

For the mode of operation of the stop cock of the tailgate, see chapter Safety, "Stop cock

tailgate".

Pos: 56.8 /Übersc hriften/Übersc hriften 2/U-Z/V /Vor Arbeiten an der Hydrauli kanlage @ 497\ mod_149017 1729530_78.doc x @ 3411746 @ 2 @ 1

15.2 Prior to working on the hydraulic system

Pos: 56.9 /Abkürzu ngen /Abkürzu ngen sprach neutral/Rundballe npressen/C omprima V @ 2 56\mod_1397 714229979_0.d ocx @ 1962670 @ @ 1

Comprima V

Pos: 56.10 /BA/ Wartung/Rundballe npresse/Hydra ulik/Eigenhydra ulik/Vor Ar beiten an der H ydraulikanlage_Bild _V CV RP025 @ 497\mo d_149010931 0368_78.docx @ 3411613 @ @ 1

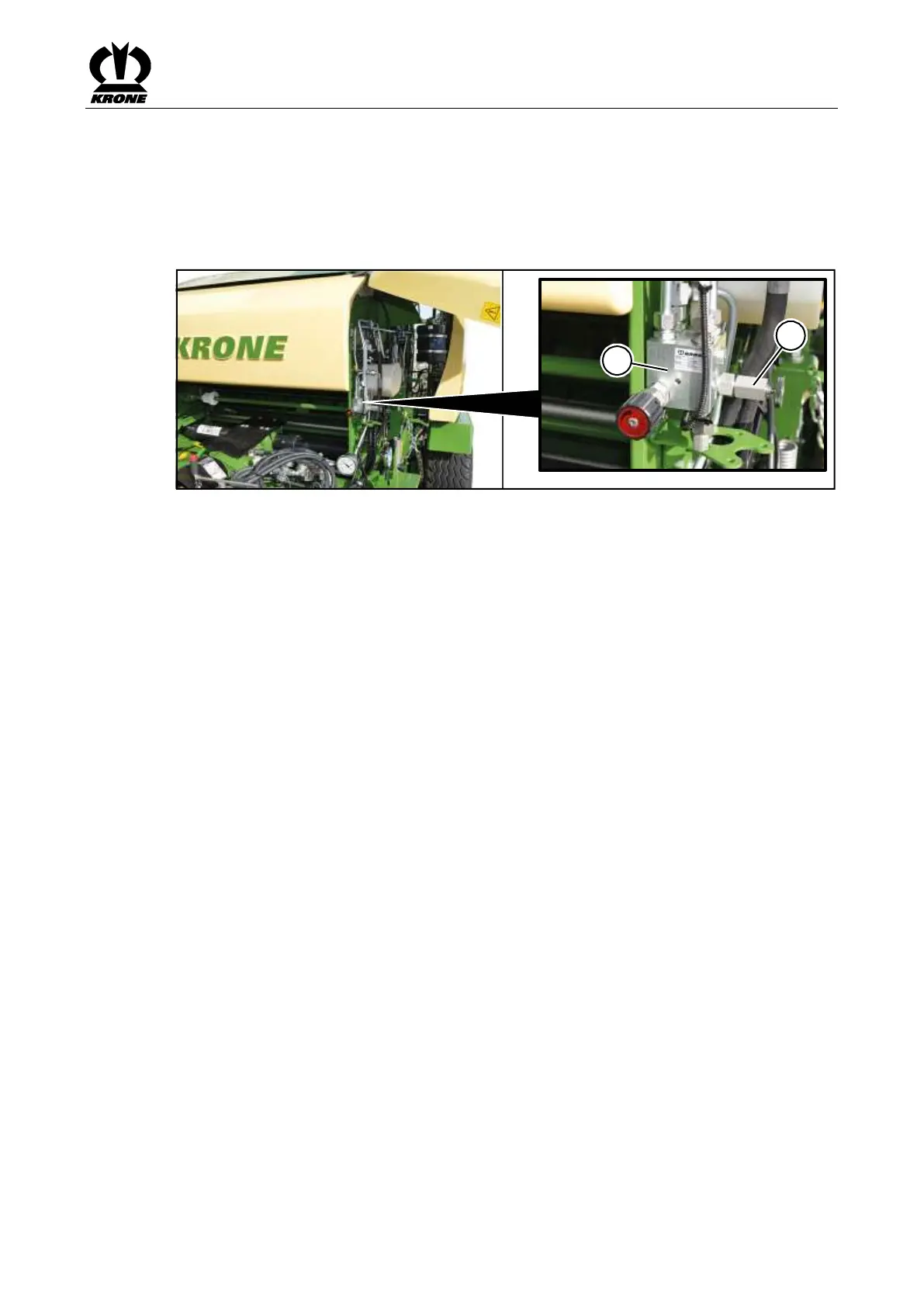

COM00560

Fig.

227

Pos: 56.11 /BA/ Wartung/Rundballe npresse/Hydra ulik/Eigenhydra ulik/Vor Ar beiten an der H ydraulikanlage_Te xt_V CV RP 025 @ 497\ mod_149017197 1969_78.docx @ 3411777 @ @ 1

The following work steps must be carried out before working on the hydraulic system:

• Fully depressurise the hydraulic system.

• Fully unscrew the handwheel (2) of the accumulator connection block (1).

• Close the tailgate.

Pos: 56.12 /La yout Module /---------------Seitenumbruch---------------- @ 0\mod_11961 75311226_0.doc x @ 4165 @ @ 1
