12.15 Central chain lubrication system
Pos: 50.51 /BA/Ei nstellungen/Ru ndballenpresse/Ze ntrale Kette nschmierung @ 33\mod_1 25481991812 9_78.docx @ 3199 66 @ @ 1
Fig.

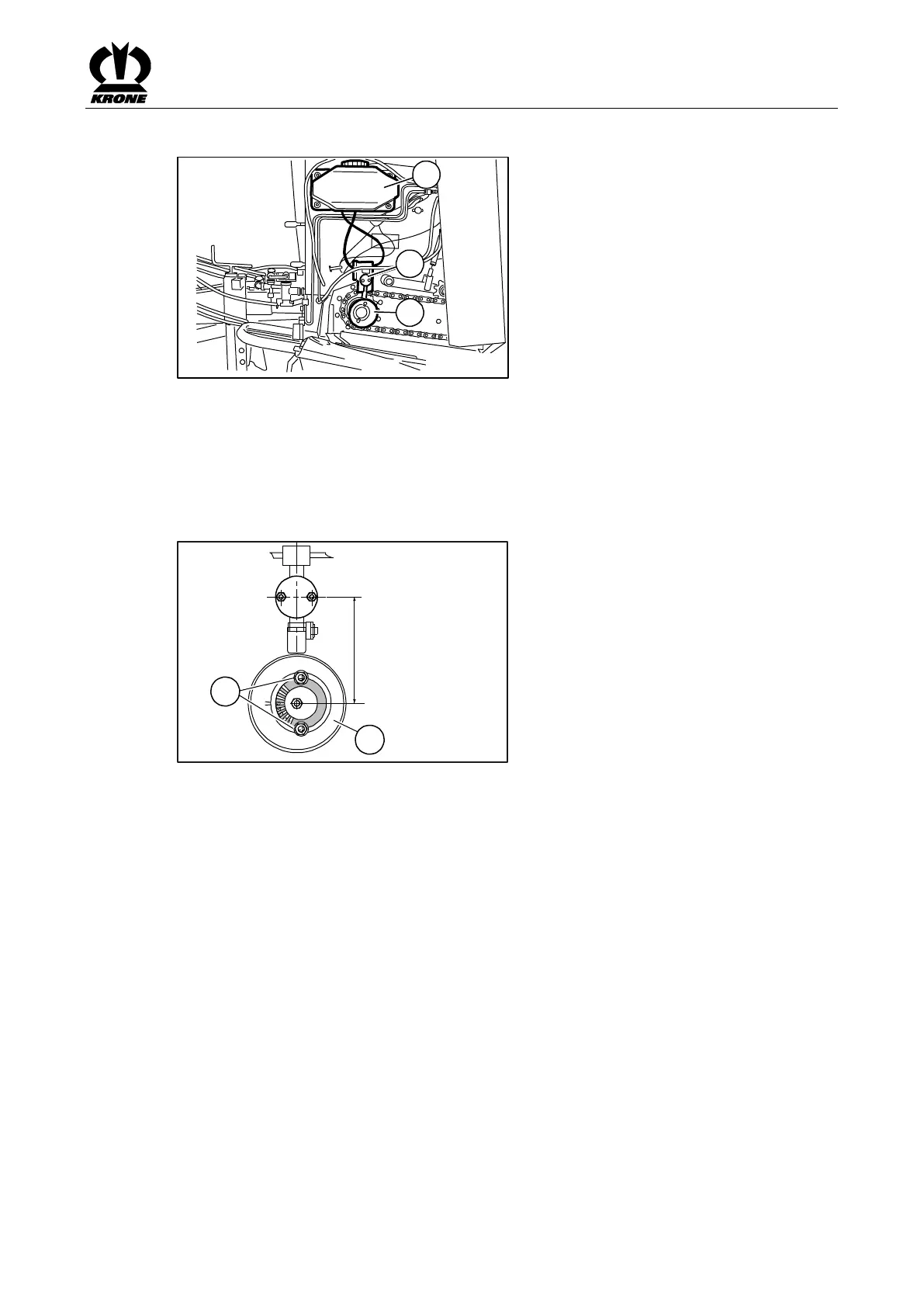

The central chain lubrication system is attached to the left-hand side of the machine behind the
front guard.
Each time the drive shaft makes a rotation, oil is forced out of the tank (1) via the pump (2) and
the lubrication manifolds attached to the left-hand and right-hand side of the machine, and onto
the brushes on the drive chains.
Different nozzles are built into the lubrication manifolds for each lubrication point.
The delivery rate can be adjusted by means of the eccentric cam (3) on the drive roller.
Fig.
• Loosen the screws (2).
• Rotate the eccentric cam disc (1).
• Retighten the screws (2).
