KRONE Operation Unit Alpha
90
Pos: 42.7 /Übersc hriften/Übersc hriften 3/A-E/B /Bedieneinheit montieren @ 8 3\mod_131 7114999419_78.d ocx @ 726893 @ 3 @ 1

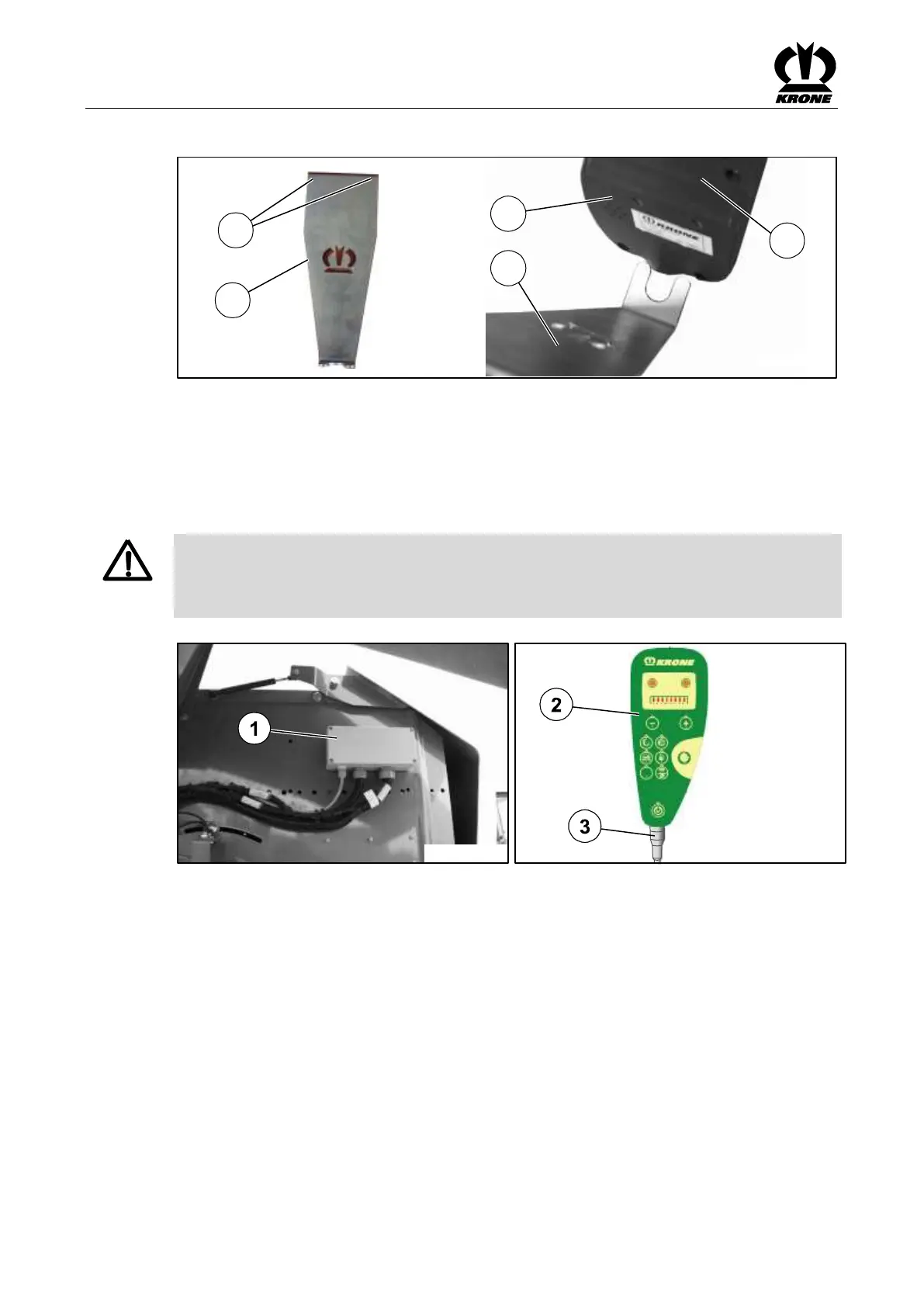

8.1.2 Mounting the Control Unit
Pos: 42.8 /WHB/El ektrik/Rundball enpresse/Alph a (Medium)/B edieneinheit montieren @ 78\ mod_131287 8761653_78.doc x @ 671550 @ @ 1
BPM50390_1
1
2
1
3
4
Fig.
62
Mount the control unit with its support (1) where the driver can see it.
Direct Fastening
• Fasten the support (1) using the drill holes (2) already present.
• The control unit (3) is fixed by the magnetic plate (4) on the support (1).
Pos: 42.9 /WHB/El ektrik/Rundball enpresse/Alph a (Medium)/Sp annungsversorg ung @ 78\m od_131287968 9257_78.docx @ 671577 @ @ 1
Power Supply
DANGER! - Failure of Control Unit
Effect: Danger to life, injuries or damage to the machine.
Make sure during assembly that the connection cables are not tight and cannot come in contact
with the tractor wheels.
RPM00013
RPM00012_2
AB CD EF GH
2
3
6
7
8
10
Fig.
63
• Connect the power supply cable (12 V) to the 3-pin power socket on tractor and machine
side (DIN 9680).
Control Unit
• Connect cable included with delivery to the socket (3) of the control unit.
